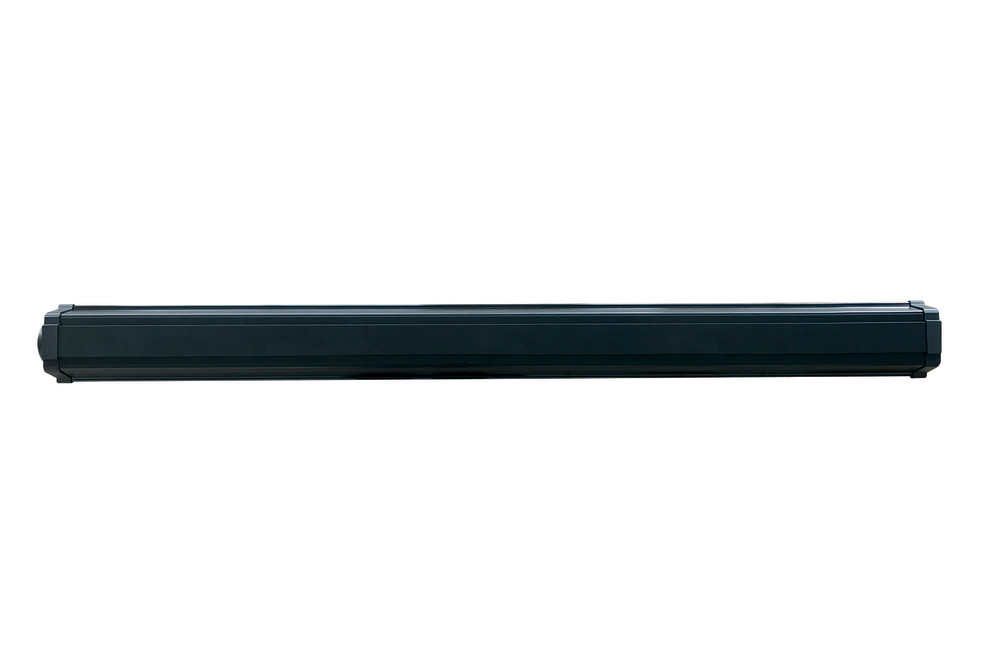

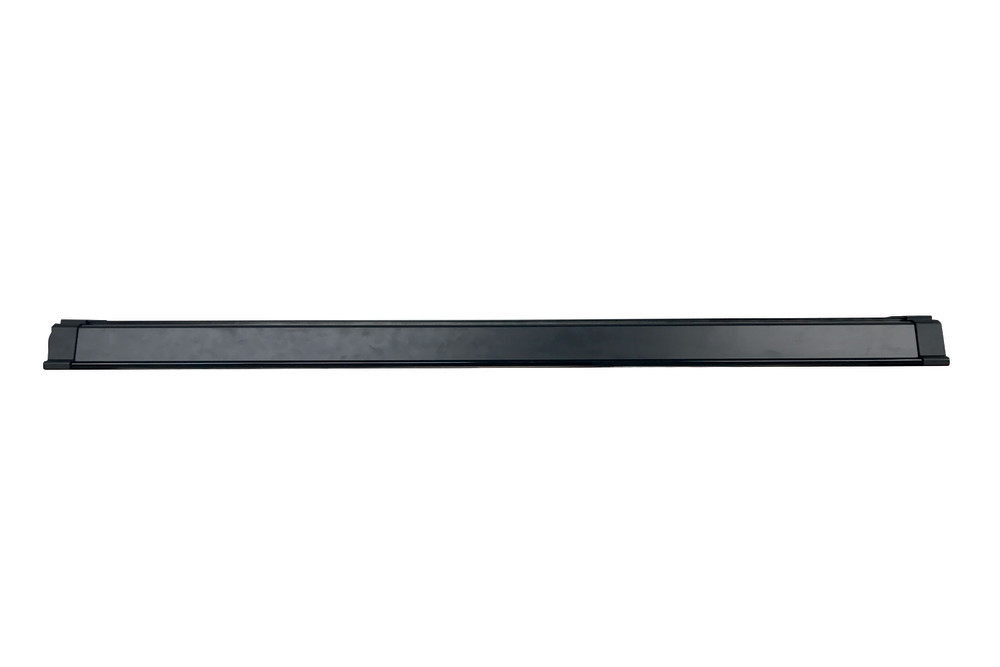

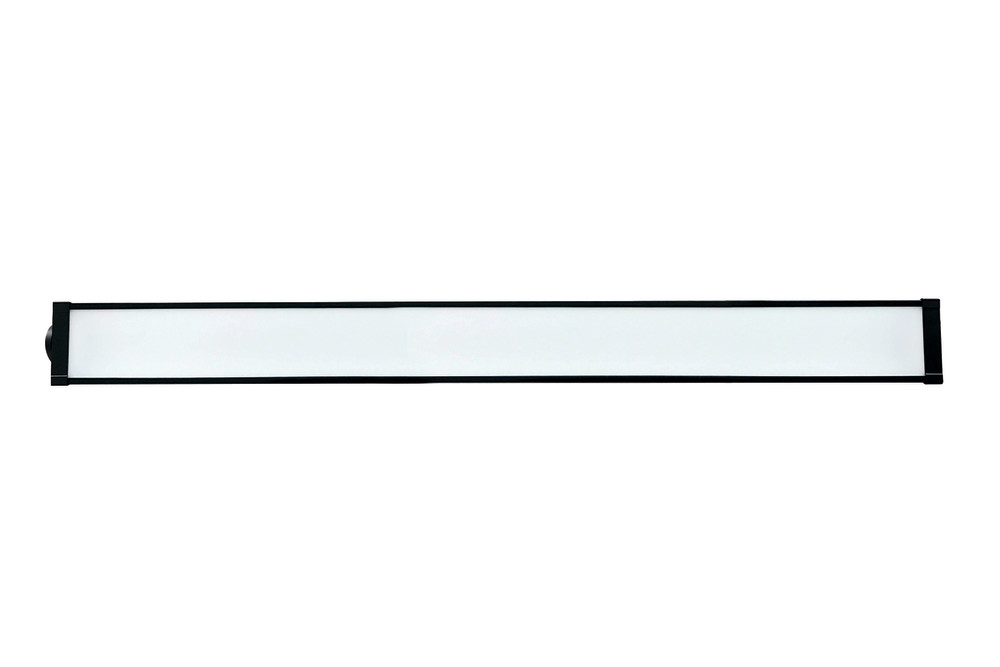

LINEAR LOW BAY 1PK IP65 160W 5000K 130LM/W 110 BEAM NON-DIMM INTEGRAL

Part Number:

ILHBL010

Integral LED's Linear Low Bay luminaire is a highly efficient retrofit replacement for fluorescent tube fittings. The high lm/W efficacy and Daylight output make them ideal for warehouses, assembly plants, showrooms and more.

Product Feature 8:
Product Feature 1:
20800lm
Product Feature 2:
Daylight
Product Feature 3:
50000hrs
Product Feature 4:
130lm/W
Product Feature 5:
Class II
Product Feature 6:
3 year warranty
Product Feature 7:
Availability:
0

Call us on 0208 451 8700 to check the next availability

Suggested products

Application
Mounting Type (Emergency)
Barcode 5055788228318
Category Luminaires
Range Name Linear Low Bay
Type Linear
Product Type Linear High Bay
Product Body Finish Matt black Aluminium, PC opal diffuser
Market Segment Commercial indoor, Industrial indoor
Finish Matt black Aluminium, PC opal diffuser
Features
Fixed/Tiltable
Warranty (Years) 3
Strip Cut Points
Emergency Option No
Size (in ft)
PIR
Emergency Category
Product Length (mm) 1200
Product Depth (mm) 82
Product Width (mm) 151
Product Weight (g) 3000
Diameter (mm)
Optic Polycarbonate diffuser
Material PC/ABS
Overall diameter (mm)
Base Term
Bulb Base
Construction PC extrusion and injection moulding
Cut Out Diameter (mm)
Cut Out Length (mm)
Strip Cut Points (mm)
Cut Out Width (mm)
Globe Finish
Globe Type
Handheld or Wall Mount
Bulb Fixing
Bulb or Luminaire Shape Linear
Luminaire Fixing Suspended/ceiling mounted
Max Run Length (m)
Max Strip Width (mm)
Mounting Type Rear Cable Entry
Panel Equivalent
Placement / Application Indoor, Outdoor, General Lighting
Spot Type
Strip length (M)
Strip Width (mm)
Typical Mounting Height 5M
Wiring / Mounting Options
Zones
Profile Height (in mm)
Profile Width
Length (m)
Beam Type
Dimming Range %
Lumen output
Energy Efficiency Label (Image) ILHBL010_EU_label
Luminous Flux in Lumens (lm) 20800
Luminous efficacy (lm/W) 130
Lumens per meter (lm/m)
Maximum Luminous Intensity at 65
Peak Intensity (Cd)
Correlated Colour Temperature (CCT) (K) 5000
Colour Temperature
Colour Temperature Name Daylight
Beam Angle 110
Colour Rendering Index (CRI) 80
Colour Type
Compatible Dimmers
Fire Rating (mins)
Frequency Range (Hz) 50
Instant on (Less than 1 second) Yes
Integrated Light Source
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
LEDs per meter
Lifetime (hours) 50000
Lighting Method
Lumens in Emergency mode (lm)
Sensor / Overide
Switching Cycles 100000
Unified Glare Rating (UGR)
Useful Lumens (lm) 20800
Power (W)
Power Consumption (w) 160
Power Consumption per meter (W/m)
Power Factor 0.95
Voltage (V)
Wattage equivalent (W) 250
Wattage Saving (W)
Amperage (mA)
Input Current (A)
Input Voltage (V) 220-240
Output Current (mA)
Output Voltage (V)
Battery Configuration
Dimming Non-Dimmable
Driver IC Manufacturer
Driver Included Yes
Electric Current AC
Emergency Battery Life (years)
Emergency Lumens (lm)
Emergency Type
Insulation Guard
Protection Function
True Wattage Eq (W)
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Energy Rating
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Back/Recessed side)
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -10
Max Strip IP Rating
Maximum Operating Temperature (°C) 40
Metal Halide Equivalent 400
Profile IP Rating
TP rating
Package Weight (g) 3800
Package Length (mm) 1265
Package Width (mm) 205
Package Depth (mm) 137
Qty per euro pallet
