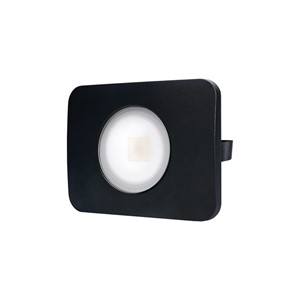

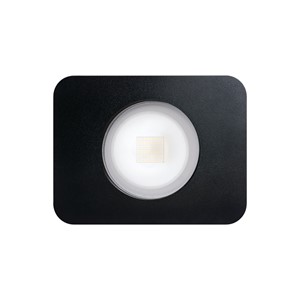

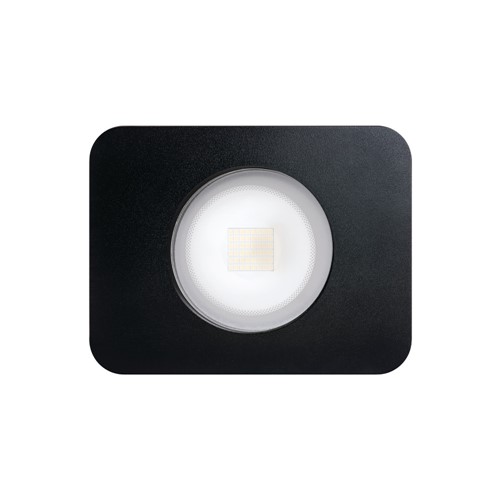

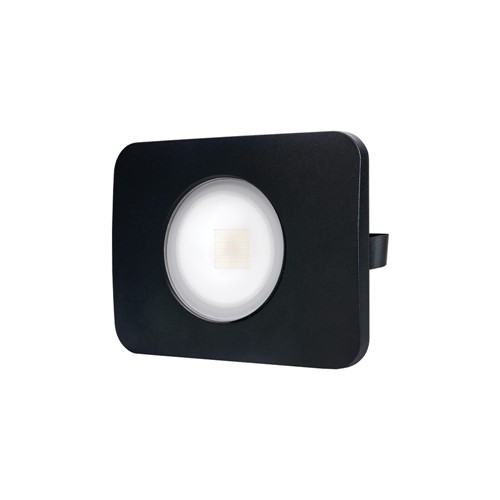

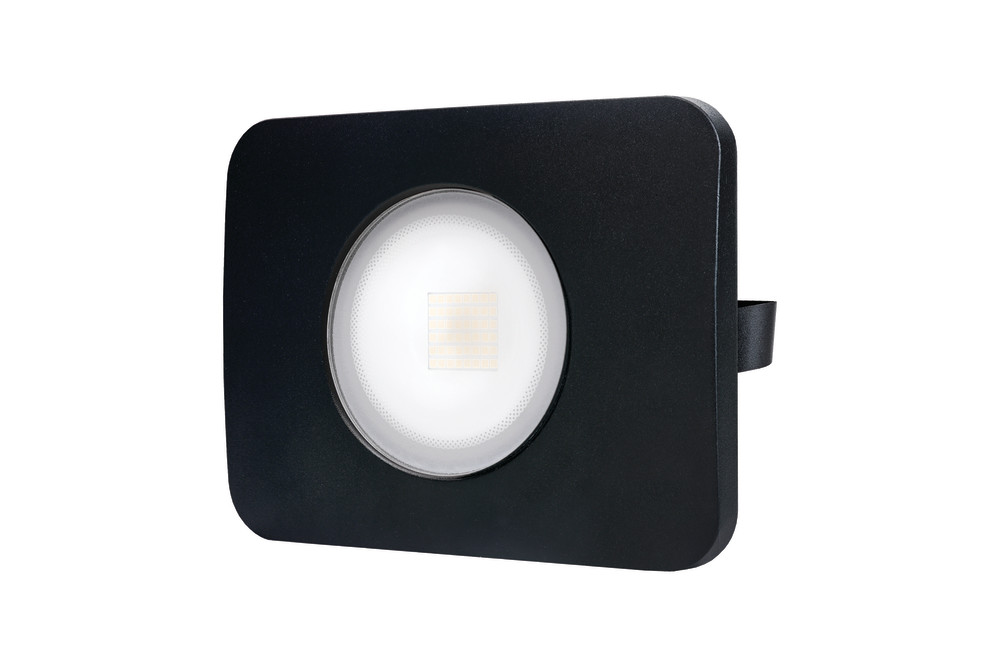

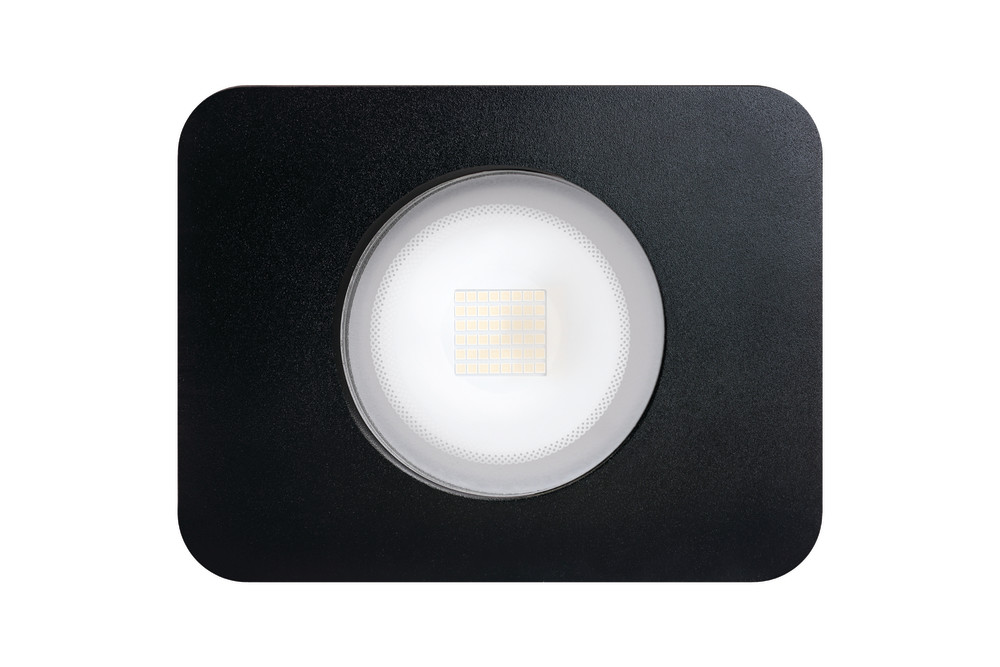

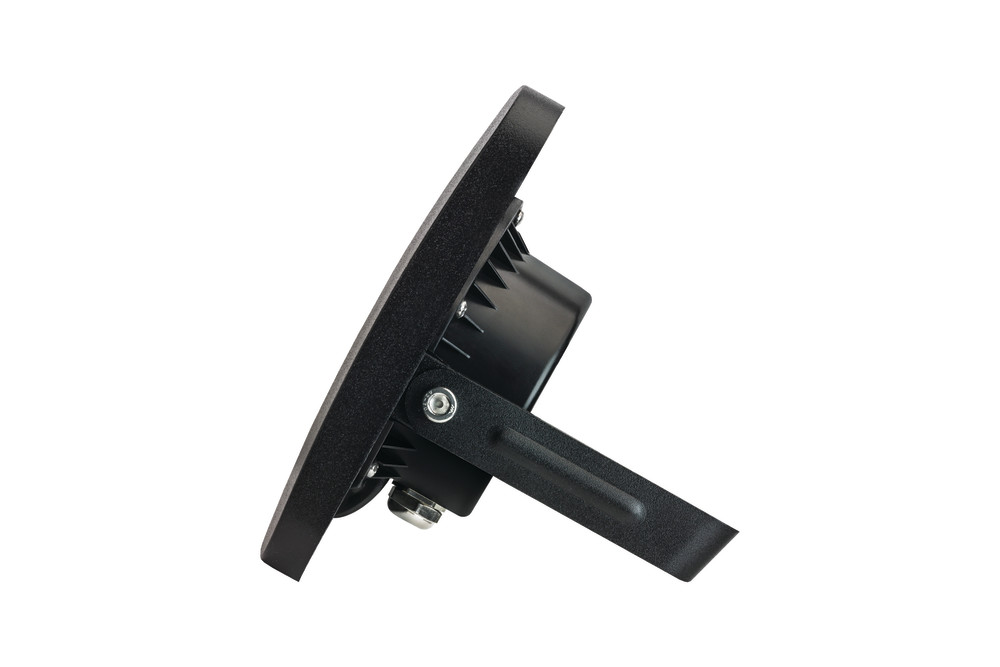

COMPACT TOUGH FLOODLIGHT IP64 4500LM 50W 3000K 110B NON-DIMM 90LM/W BLACK INTEGRAL
Part Number:
ILFLC128
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
The new generation of Compact-Tough Floodlights are lighter and even more compact, with a frosted lens for reduced glare.
The Compact-Tough IP65-rated LED Floodlight breaks from convention with a design that meets the desire for attractive exterior lights. Meanwhile, a tough aluminium body and tempered glass refractor ensure that these floodlights are built to last. With 85% lower running costs compared to halogen equivalents, the Compact-Tough not only looks great, it is incredibly efficient as well.
- Product Feature 1:
- Tough aluminium and polycarbonate body with marine grade fixings
- Product Feature 2:
- Frosted tempered glass lens for reduced glare
- Product Feature 3:
- Highly reliable IP64 PIR Sensor (many LED floodlight sensors are only IP44)
- Product Feature 4:
- More efficient (up to 90lm/W)
- Product Feature 5:
- 85% lower running cost (compared to Halogen)than other LED floodlights on the market
- Product Feature 6:
- Pre-wired 2m cable for easy installation
- Product Feature 7:
- Maintenance-free and no lamp to change
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 817641 |
|---|---|
| Barcode | 5055788246794 |
| Category | Luminaires |
| Range Name | Compact Tough |
| Product Type | Floodlights |
| Product Body Finish | Matt Black |
| Market Segment | Commercial and Residential outdoor |
| Finish | Matt Black |
| Warranty (Years) | 2 |
Physical Data
| Emergency Option | No |
|---|---|
| PIR | No |
| Linkable | No |
| Product Length (mm) | 188 |
| Product Depth (mm) | 53 |
| Product Width (mm) | 145 |
| Product Weight (g) | 968 |
| Optic | Polycarbonate diffuser |
| Material | Aluminium, Polycarbonate, Tempered glass |
| Construction | Aluminium and polycarbonate body, Tempered glass, Integrated driver |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall |
| Mounting Type | Rear Cable Entry |
| Panel Equivalent | 400 |
| Placement / Application | Outdoor, General Lighting |
Light Data
| Beam Type | Symmetrical |
|---|---|
| Energy Efficiency Label (Image) | ILFLC128_EU_label |
| Luminous Flux in Lumens (lm) | 4500 |
| Luminous efficacy (lm/W) | 90 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 35000 |
| Sensor / Overide | No |
| Switching Cycles | 17500 |
| Useful Lumens (lm) | 4500 |
Electrical Data
| Power Consumption (W) | 50 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 200 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 1102 |
|---|---|
| Package Length (mm) | 195 |
| Package Width (mm) | 60 |
| Package Depth (mm) | 155 |
