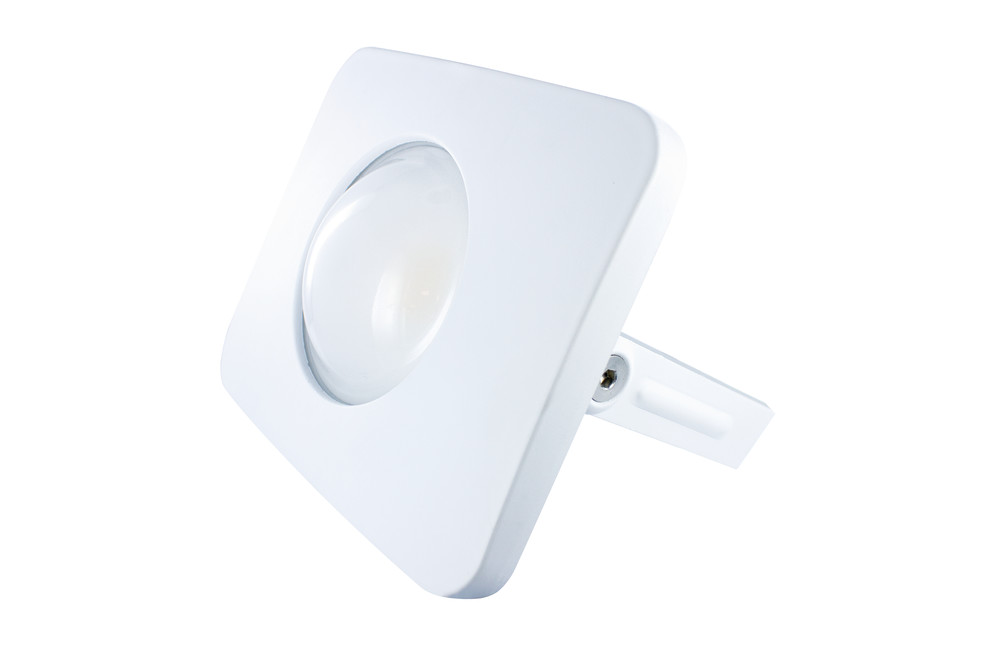

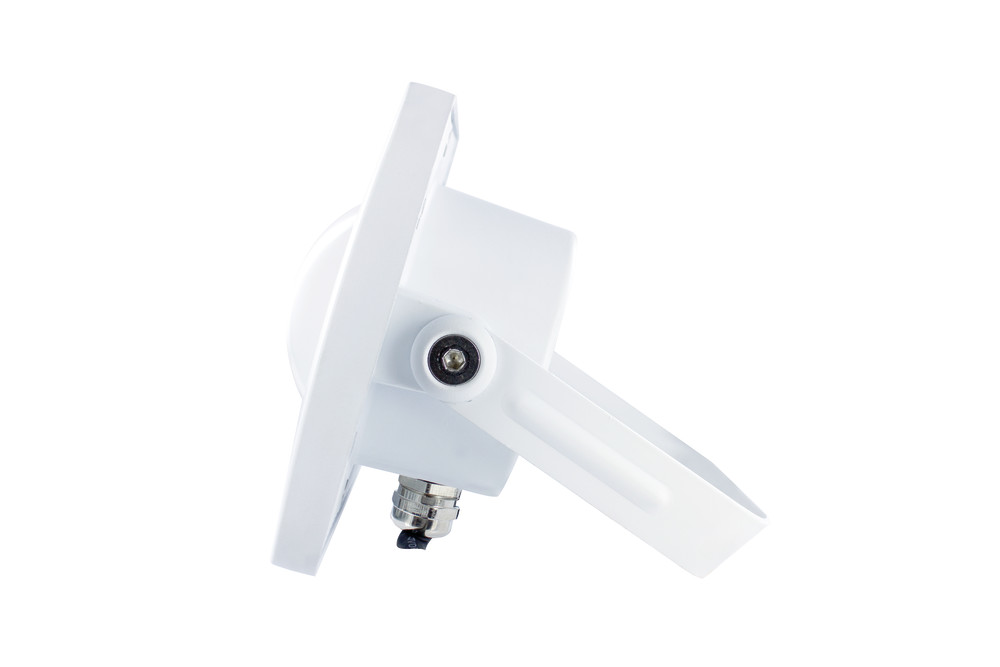

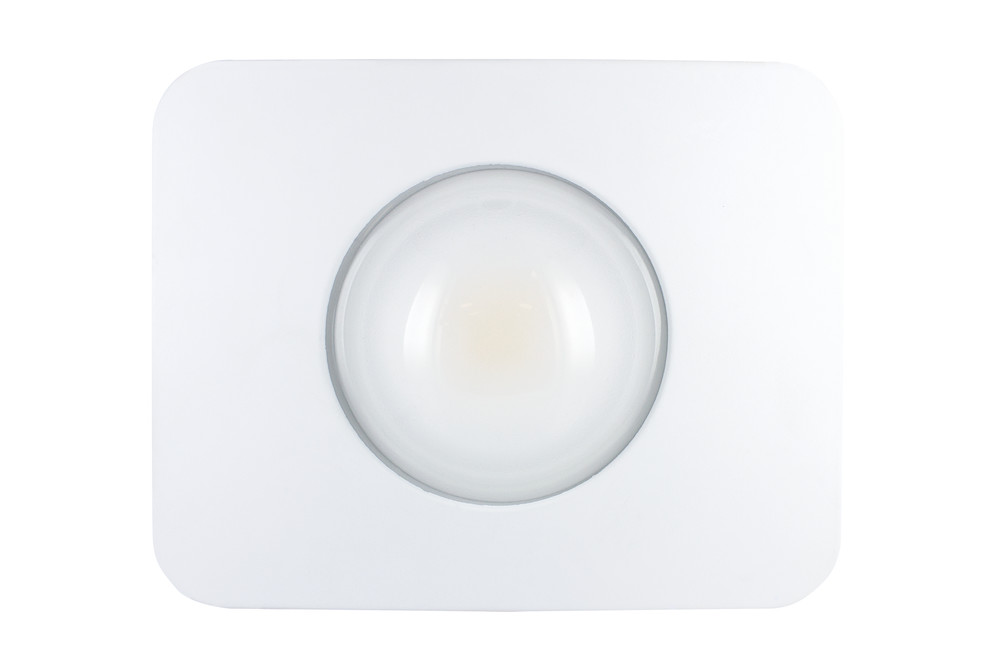

COMPACT TOUGH FLOODLIGHT IP65 2700LM 30W 4000K 110› NON-DIMM 90LM/W WHITE INTEGRAL

Part Number:

ILFLB007

Not all floodlights need to have an industrial look. Our Compact-Tough IP65-rated LED Floodlight breaks from convention with a design that meets the desire for attractive exterior lights. Meanwhile, a tough aluminium body and tempered glass refractor ensure that these floodlights are built to last. With 85% lower running costs compared to halogen equivalents, the Compact-Tough not only looks great, it is incredibly efficient as well.

Product Feature 8:
Product Feature 1:
Compact LED design
Product Feature 2:
Tough aluminium body tempered glass and marine grade fixings
Product Feature 3:
85% lower running cost (compared to Halogen) with a super-bright light
Product Feature 4:
2m pre-wired
Product Feature 5:
Maintenance-free and no bulb to change
Product Feature 6:
Product Feature 7:
Availability:
76

Call us on 0208 451 8700 to check the next availability

Suggested products

Application
Mounting Type (Emergency)
Barcode 5055788226710
Category Luminaires
Range Name Compact Tough
Type
Product Type Floodlights
Product Body Finish Matt white
Market Segment Commercial and Residential outdoor
Finish Matt White
Features
Fixed/Tiltable
Warranty (Years) 3
Strip Cut Points
Emergency Option No
Size (in ft)
PIR No
Emergency Category
Product Length (mm) 188
Product Depth (mm) 87
Product Width (mm) 143
Product Weight (g) 1600
Diameter (mm)
Optic Polycarbonate diffuser
Material Aluminium, Tempered Glass
Overall diameter (mm)
Base Term
Bulb Base
Construction Aluminium die-cast heat-sink, Tempered Glass protective front cover, Integrated driver
Cut Out Diameter (mm)
Cut Out Length (mm)
Strip Cut Points (mm)
Cut Out Width (mm)
Globe Finish
Globe Type
Handheld or Wall Mount
Bulb Fixing
Bulb or Luminaire Shape Rectangle
Luminaire Fixing Wall
Max Run Length (m)
Max Strip Width (mm)
Mounting Type Rear Cable Entry
Panel Equivalent
Placement / Application Outdoor, General Lighting
Spot Type
Strip length (M)
Strip Width (mm)
Typical Mounting Height
Wiring / Mounting Options
Zones
Profile Height (in mm)
Profile Width
Length (m)
Beam Type Symmetrical
Dimming Range %
Lumen output
Energy Efficiency Label (Image) ILFLB007_EU_label
Luminous Flux in Lumens (lm) 2700
Luminous efficacy (lm/W) 90
Lumens per meter (lm/m)
Maximum Luminous Intensity at 65
Peak Intensity (Cd)
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature
Colour Temperature Name Cool White
Beam Angle 110
Colour Rendering Index (CRI) 80
Colour Type
Compatible Dimmers
Fire Rating (mins)
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
Integrated Light Source
LED Size (mm)
LED Type Surface mounted device (SMD)
LEDs per meter
Lifetime (hours) 35000
Lighting Method
Lumens in Emergency mode (lm)
Sensor / Overide No
Switching Cycles 17500
Unified Glare Rating (UGR)
Useful Lumens (lm) 2700
Power (W)
Power Consumption (w) 30
Power Consumption per meter (W/m)
Power Factor 0.9
Voltage (V)
Wattage equivalent (W)
Wattage Saving (W)
Amperage (mA) 140
Input Current (A)
Input Voltage (V) 220-240
Output Current (mA)
Output Voltage (V)
Battery Configuration
Dimming Non-Dimmable
Driver IC Manufacturer
Driver Included Yes
Electric Current AC
Emergency Battery Life (years)
Emergency Lumens (lm)
Emergency Type
Insulation Guard
Protection Function
True Wattage Eq (W)
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Energy Rating
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Back/Recessed side)
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -25
Max Strip IP Rating
Maximum Operating Temperature (°C) 45
Metal Halide Equivalent
Profile IP Rating
TP rating
Package Weight (g) 1880
Package Length (mm) 193
Package Width (mm) 191
Package Depth (mm) 100
Qty per euro pallet
Installation Guide
LDT File
IES File
Polar Curve
PDF strip image

Product Specification Sheet

IES Files

Installation Guides
