EVO LED PANEL LIGHT 1200X300 3600LM 36W 4000K BACKLIT NON-DIMM 100LM/W INTEGRAL
Part Number:
ILP1230B005

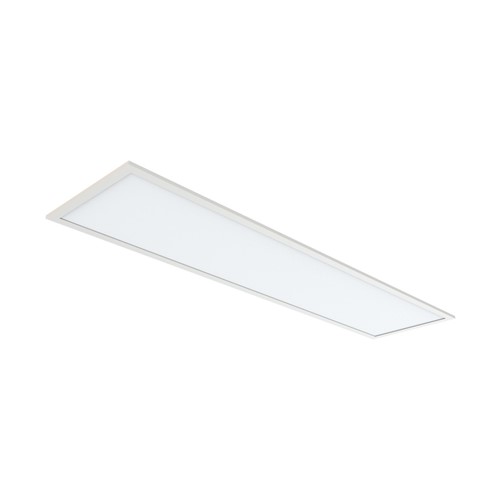

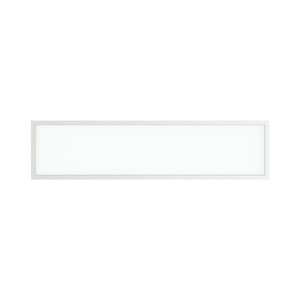

This is a 36W, 3600lm 1200x300 Integral LED Evo panel. It delivers a uniform white light across the whole of its surface. The high level of efficacy (100lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 3600 Lumens
- Product Feature 3:
- 100lm/W
- Product Feature 4:
- 5 year warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 636064 |
|---|---|
| Barcode | 5055788256731 |
| Category | Panels |
| Range Name | Evo |
| Product Type | 1200 x 300 |
| Product Body Finish | White |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Length (mm) | 1196 |
| Product Depth (mm) | 30 |
| Product Width (mm) | 296 |
| Product Weight (g) | 1800 |
| Optic | Opal diffuser |
| Material | Aluminium, Steel, PS Diffuser |
| Construction | Aluminimum backplate and frame |
| Luminaire Fixing | Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required) |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILP1230B005_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 3600 |
| Luminous efficacy (lm/W) | 100 |
| Peak Intensity (Cd) | 1239 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lighting Method | Back-lit |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 36 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | 20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 2450 |
|---|---|
| Package Length (mm) | 1270 |
| Package Width (mm) | 375 |
| Package Depth (mm) | 50 |
Safety Guide
ILP1230B005
