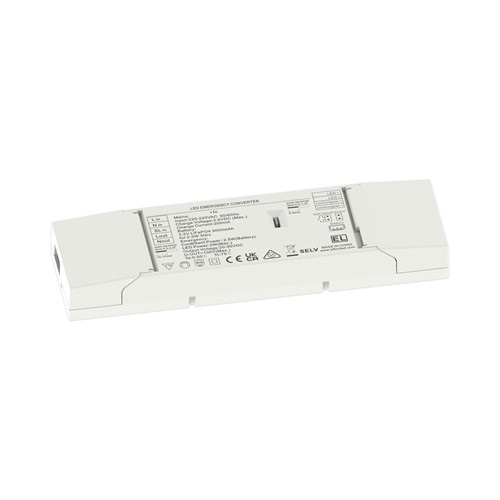

EMERGENCY CONVERSION KIT 2.5W 20-90VDC 3HR WITH REMOTE LED INDICATOR AND MANUAL TEST BUTTON
Part Number:
ILEMPK011
- Product Feature 1:
- 2.5-5W
- Product Feature 2:
- Lithium Phosphate battery
- Product Feature 3:
- 3 Year Warranty
- Product Feature 5:
- Easy Installation
- Product Feature 6:
- 3 Hour Emergency Operation
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
Quick Order Code | 165555 |
---|---|
Barcode | 5055788288862 |
Category | Emergency |
Range Name | Conversion Kit |
Product Type | Emergency Conversion Kit |
Product Body Finish | Matt white. End cap blue |
Market Segment | Commercial indoor |
Finish | Matt white. End cap blue |
Warranty (Years) | 3 |
Physical Data
Emergency Category | Emergency Kit |
---|---|
Linkable | No |
Product Length (mm) | 240 |
Product Depth (mm) | 28 |
Product Width (mm) | 50 |
Product Weight (g) | 215 |
Material | Polycarbonate |
Construction | Injection moulding |
Bulb or Luminaire Shape | Rectangle |
Luminaire Fixing | In Ceiling |
Placement / Application | Indoor, Emergency Lighting |
Light Data
Frequency Range (Hz) | 50/60 |
---|
Electrical Data
Power Consumption (W) | 2.5 |
---|---|
Input Voltage (V) | 220-240 |
Output Voltage (V) | 20-90 |
Battery Configuration | LiFePo4 |
Dimming | Non-Dimmable |
Driver Included | Yes |
Electric Current | AC |
Emergency Type | Non-Maintained |
Environmental
CE RoHS | Yes |
---|---|
IK Rating (Impact Protection) | IK04 |
IP Rating (Ingress Protection) | IP20 |
Lowest Operating Temperature (°C) | 5 |
Maximum Operating Temperature (°C) | 45 |
Packaging
Package Weight (g) | 250 |
---|---|
Package Length (mm) | 28 |
Package Width (mm) | 240 |
Package Depth (mm) | 50 |
