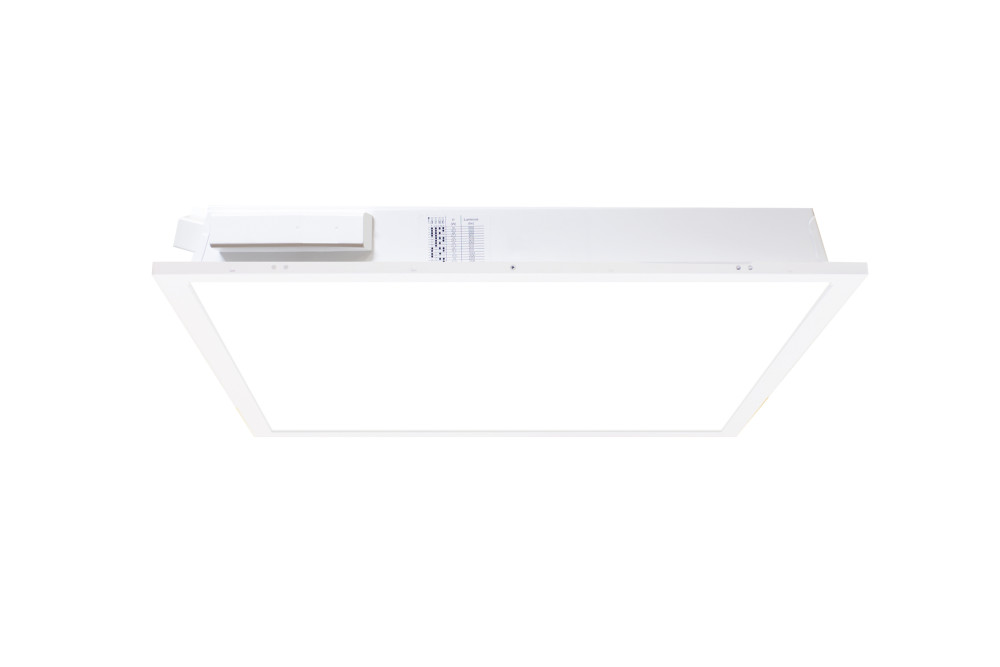

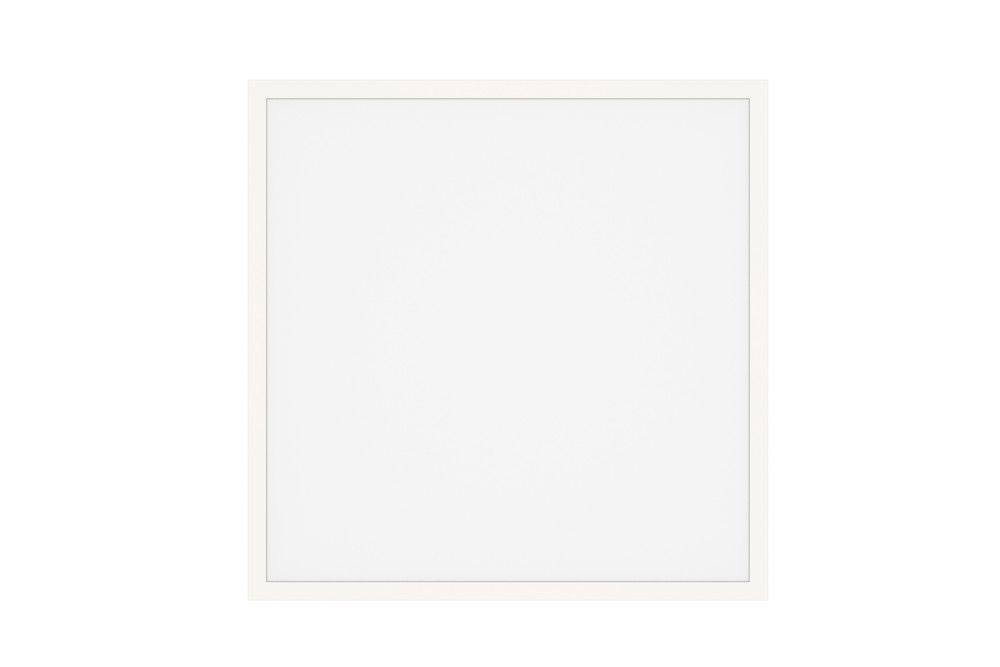

ADJUSTABLE WATTAGE LED PANEL LIGHT 600X600 1472-4960LM 9.5-32W 4000K UGR<19 TPa DIFFUSER BACKLIT NON-DIMM 155LM/W INTEGRAL

Part Number:

ILP6060B043

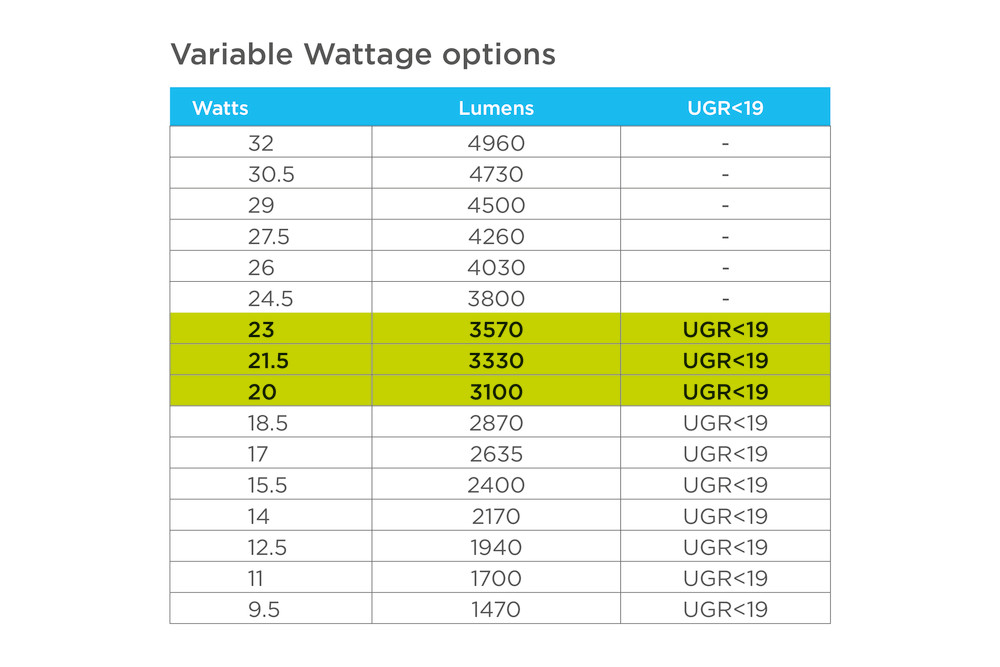

The Wattage of the UGR<19 Variable High Performance+ panel can be adjusted from 9.5 to 32W in 1.5W steps to give a light output range from 1472 to 4960lm in cool white. Its high level of efficacy (155lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.

Its lightweight steel and PC design,with integrated non-flicker driver,means installation is simple and maintenance is minimal. With a wide range of lumen outputs It is an ideal solution for many applications: office,meeting rooms,corridors,schools/universities and retail premises.
Product Feature 1:
Cool White
Product Feature 2:
1472-4960 Lumens
Product Feature 3:
155lm/W
Product Feature 4:
TP(a) rated Polycarbonate diffuser
Product Feature 5:
UGR <19
Product Feature 6:
5 Year Warranty
Availability:
0

More stock due in on 12/07/2024

Suggested products

Quick Order Code 974546
Barcode 5055788256649
Category Panels
Range Name High Performance+ Variable Wattage
Product Type 600 x 600
Product Body Finish White
Market Segment Commercial indoor
Warranty (Years) 5
Emergency Option Optional Conversion Kit
Product Length (mm) 596
Product Depth (mm) 63
Product Width (mm) 596
Product Weight (g) 3500
Optic TP(a) rated Polycarbonate diffuser
Material Steel, Polycarbonate
Construction Folded Mild Steel and Polycarbonate diffuser
Luminaire Fixing Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required)
Panel Equivalent The Luminaire is Class II
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILP6060B043_EU_label
Luminous Flux in Lumens (lm) 1472-4960
Luminous efficacy (lm/W) 155
Peak Intensity (Cd) 1466
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 110
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Lighting Method Back-lit
Switching Cycles 25000
Power Consumption (W) 9.5 to 32
Power Factor 0.9
Voltage Range (v) 220-240
Wattage equivalent (W) 86.4
Dimming Non-Dimmable
Driver Included Integrated
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating D
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) 20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
Package Weight (g) 4000
Package Length (mm) 630
Package Width (mm) 615
Package Depth (mm) 80
