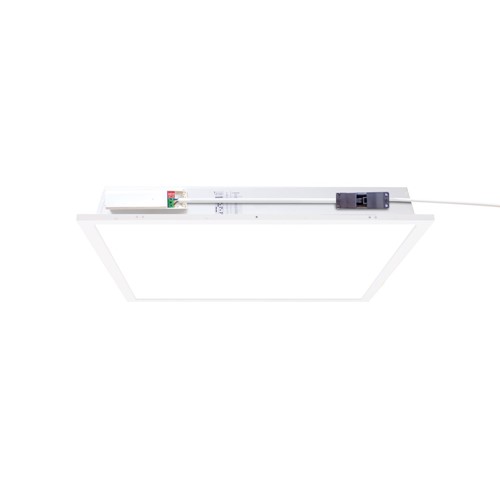

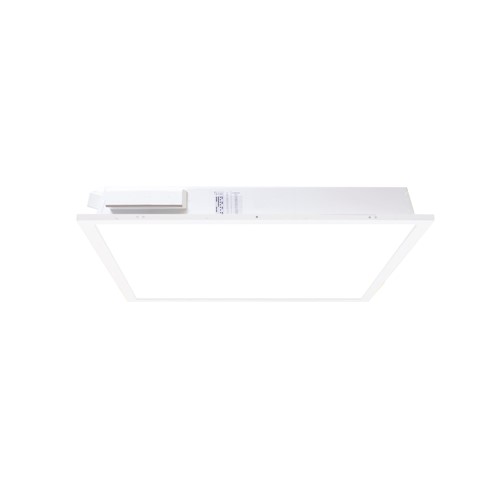

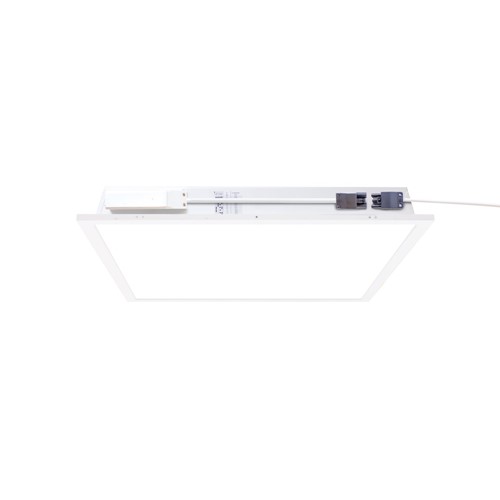

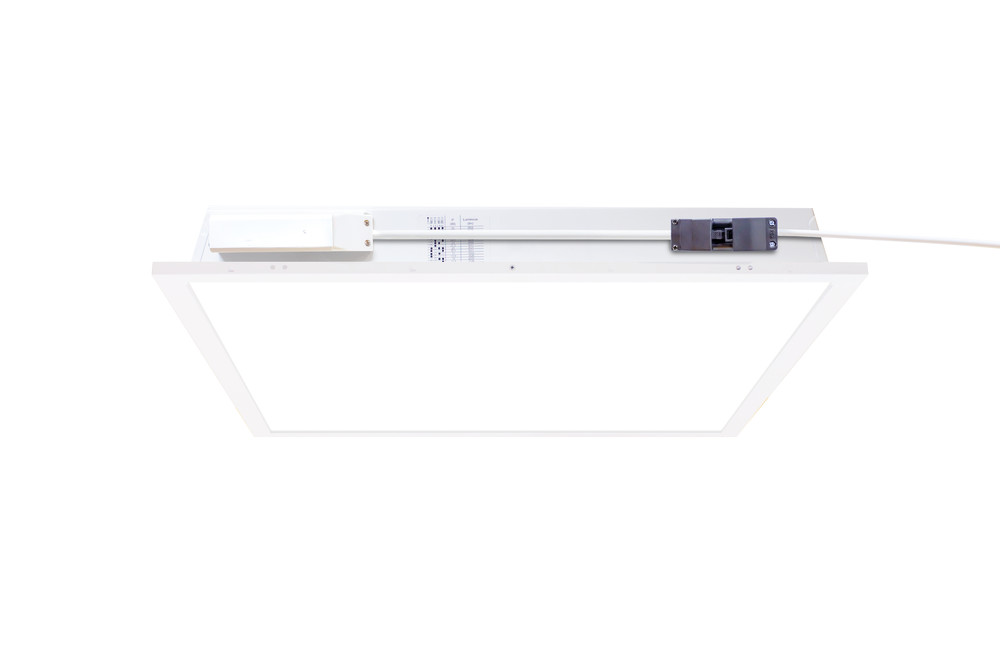

ADJUSTABLE WATTAGE PANEL 600X600 1600-5600LM 9.5-32W 4000K TPa DIFFUSER NON-DIMM 175LM/W BACKLIT

Part Number:

ILP6060B041

The Wattage of the Variable High Performance+ panel can be adjusted from 9.5 to 32W in 1.5W steps to give a light output range from 1600 to 5600lm in cool white. Its market leading level of efficacy (175lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.

Its lightweight steel and PC design, with integrated non-flicker driver, means installation is simple and maintenance is minimal. With a wide range of lumen outputs It is an ideal solution for many applications: office, meeting rooms, corridors, schools/universities and retail premises.

Product Feature 1:
Cool White
Product Feature 2:
1600-5600 Lumens
Product Feature 3:
Market-leading 175lm/W
Product Feature 4:
TP(a) rated Polycarbonate diffuser
Product Feature 5:
5 Year Warranty

For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information

Availability:
100+

More stock due in on 15/10/2021

91.92 GBP

RRP + VAT

Suggested products

Barcode 5055788253082
Category Panels
Range Name High Performance+ Variable Wattage
Product Type 600 x 600
Product Body Finish Matt white
Market Segment Commercial indoor
Warranty (Years) 5
Emergency Option Optional Conversion Kit
Emergency Category Panels
Product Depth (mm) 63
Product Width (mm) 596
Product Weight (g) 3500
Optic TP(a) rated Polycarbonate diffuser
Material Steel, Polycarbonate
Construction Folded Mild Steel and Polycarbonate diffuser
Luminaire Fixing Recessed in ceiling grid, surface mounted (additional surface mounting kit required)
Panel Equivalent The Luminaire is Class II
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 1600-5600
Luminous efficacy (lm/W) 168-179
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 110
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Back-lit
Lifetime (hours) 50000
Lighting Method Back-lit
Switching Cycles 25000
Power Consumption (w) 9.5 to 32
Power Factor 0.9
Voltage Range (v) 220-240
Wattage equivalent (W) 86.4
Amperage (mA) 200
Dimming Non-Dimmable
Driver Included Integrated
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
TP rating TP(a)
Package Weight (g) 4000
Package Length (mm) 630
Package Width (mm) 615
Package Depth (mm) 80

Product Specification Sheet
