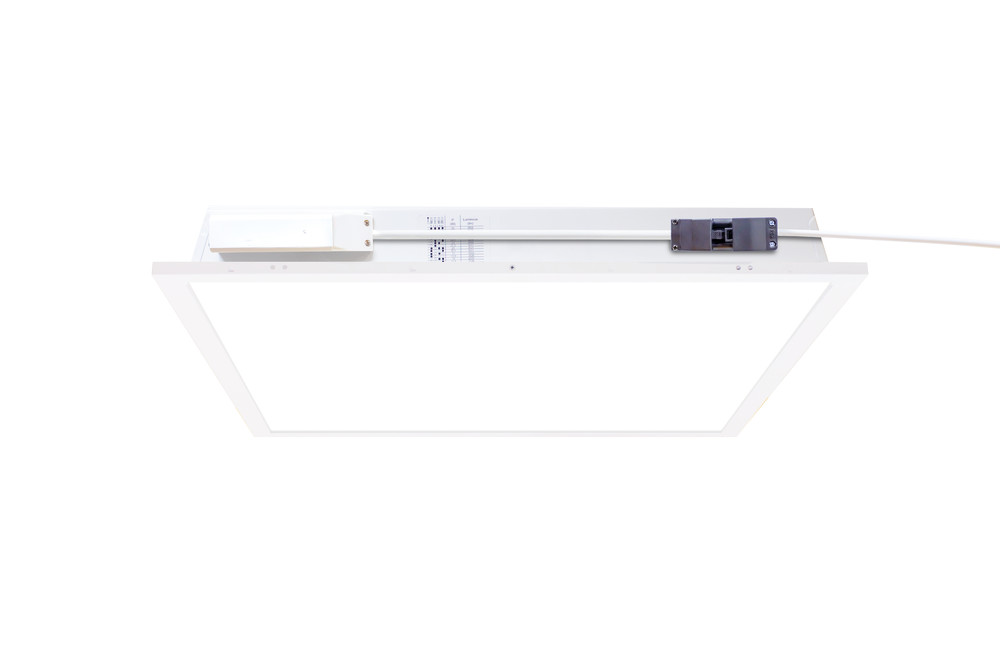

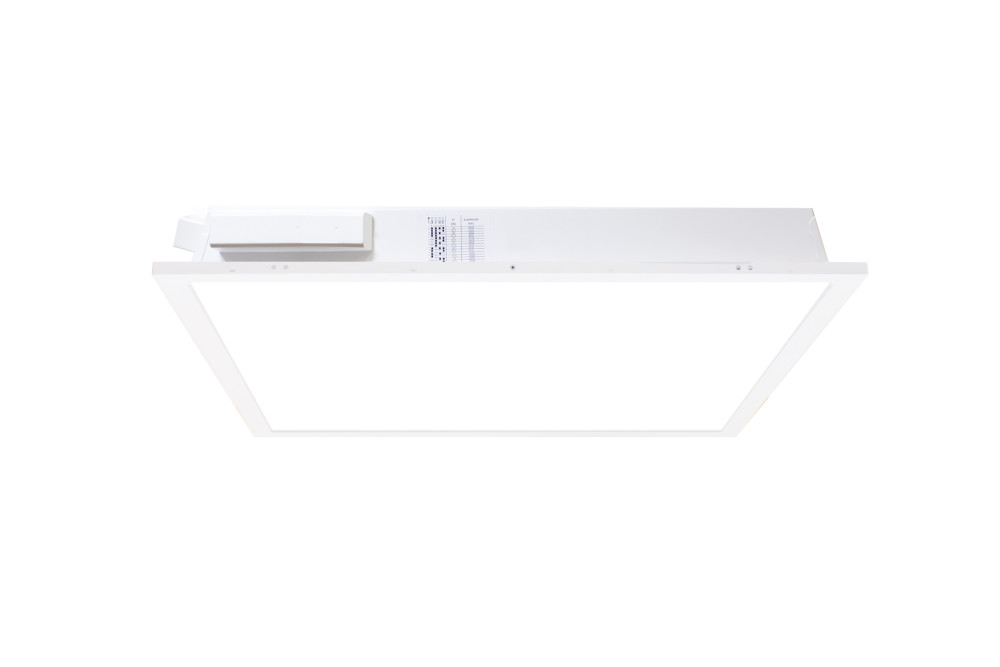

ADJUSTABLE WATTAGE LED PANEL LIGHT 600X600 1600-5600LM 9.5-32W 4000K TPb diffuser BACKLIT NON-DIMM 175LM/W INTEGRAL
Part Number:
ILP6060B042
The Wattage of the Variable High Performance+ panel can be adjusted from 9.5 to 32W in 1.5W steps to give a light output range from 1600 to 5600lm in cool white. Its market leading level of efficacy (175lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.
Its lightweight steel and PC design, with integrated non-flicker driver, means installation is simple and maintenance is minimal. With a wide range of lumen outputs It is an ideal solution for many applications: office, meeting rooms, corridors, schools/universities and retail premises.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 1600-5600 Lumens
- Product Feature 3:
- Market-leading 175lm/W
- Product Feature 4:
- TP(b) rated Polycarbonate diffuser
- Product Feature 5:
- 5 Year Warranty
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
79
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 666995 |
|---|---|
| Barcode | 5055788253099 |
| Category | Panels |
| Range Name | High Performance+ Variable Wattage |
| Product Type | 600 x 600 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Panels |
| Product Depth (mm) | 63 |
| Product Width (mm) | 596 |
| Product Weight (g) | 3500 |
| Optic | TP(b) rated Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |
| Luminaire Fixing | Recessed in ceiling grid, surface mounted (additional surface mounting kit required) |
| Panel Equivalent | The Luminaire is Class II |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILP6060B042_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 1600-5600 |
| Luminous efficacy (lm/W) | 168-179 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Back-lit |
| Lifetime (hours) | 50000 |
| Lighting Method | Back-lit |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 9.5 to 32 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Amperage (mA) | 200 |
| Dimming | Non-Dimmable |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | C |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
| TP rating | TP(b) |
Packaging
| Package Weight (g) | 4000 |
|---|---|
| Package Length (mm) | 630 |
| Package Width (mm) | 615 |
| Package Depth (mm) | 80 |
