**** Awarded 4 Stars "Recommended" by Lux Review (November 2017) ****

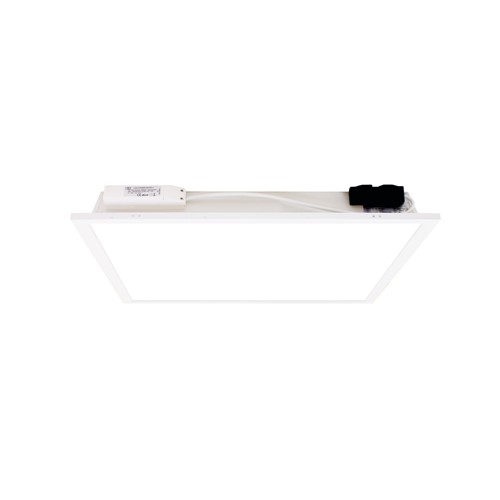

This 23W and 3500lm Integral LED High Performance+ panel delivers a uniform cool white light across the whole of its surface. Its market leading level of efficacy (152lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.

The panel is fitted with a polycarbonate diffuser that has been tested by a UK based laboratory and passes BS782-0:2004 Method 508A, as required by Fire Safety regulations. Its lightweight steel and PC design, with integrated non-flicker driver, means installation is simple and maintenance is minimal.

It is an ideal solution for many applications: office, meeting rooms, corridors, schools/universities and retail premises.

Product Feature 1:
Cool White
Product Feature 2:
3500 Lumens
Product Feature 3:
Market-leading 152lm/W
Product Feature 4:
TP(a) rated Polycarbonate diffuser
Product Feature 5:
5 Year Warranty
Product Feature 6:
Awarded 4 Stars Recommended by Lux Review

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 269770
Barcode 5055788229957
Category Panels
Range Name Compact High Performance+
Product Type 600 x 600
Product Body Finish White steel
Market Segment Commercial indoor
Warranty (Years) 5
Product Length (mm) 596
Product Depth (mm) 65
Product Width (mm) 596
Product Weight (g) 2700
Optic TP(a) rated Polycarbonate diffuser
Material Steel, Polycarbonate
Construction Folded Mild Steel and Polycarbonate diffuser
Luminaire Fixing Recessed in ceiling grid, surface mounted (additional surface mounting kit required)
Panel Equivalent The Luminaire is Class II
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 3500
Luminous efficacy (lm/W) 152
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 110
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Back-lit
Lifetime (hours) 50000
Lighting Method Back-lit
Switching Cycles 25000
Power (W) 23
Power Consumption (W) 23
Power Factor 0.9
Wattage equivalent (W) 86.4
Amperage (mA) 95
Dimming Non-Dimmable
Driver Included Integrated
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP40
IP Rating (Ingress Protection) IP44
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
TP rating TP(a)
Package Weight (g) 3300
Package Length (mm) 630
Package Width (mm) 610
Package Depth (mm) 80
Qty per euro pallet 30
