VALUE+ PANEL 600X600 3850LM 38W 6500K NON-DIMM 101LM/W EDGELIT INTEGRAL
Part Number:
ILP6060E007
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

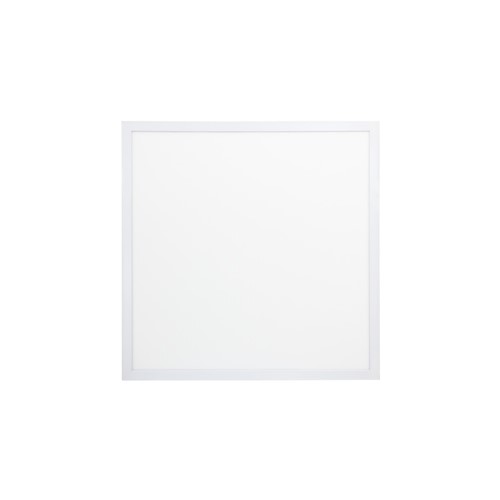

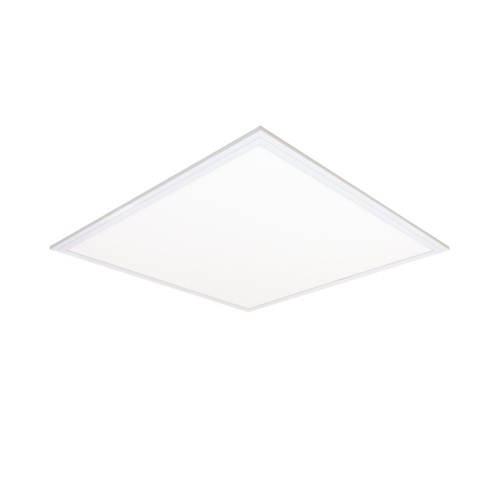

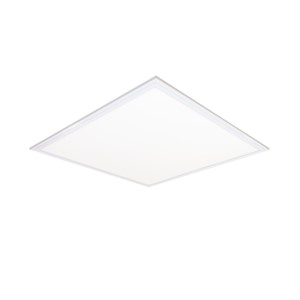

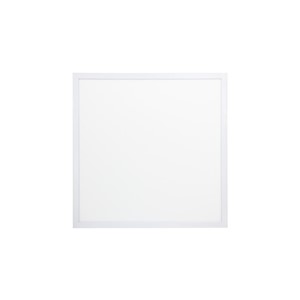

This is a 38W, 3850lm 600x600 Integral LED Value+ panel. It delivers a uniform cool Daylight light across the whole of its surface. The high level of efficacy (101lm/W) offers savings in running cost against traditional 72W fluorescent fittings as well as many other LED panels. The panels are an ideal solution for many applications.
- Product Feature 1:
- Cool Daylight
- Product Feature 2:
- 3850 Lumens
- Product Feature 3:
- 101lm/w
- Product Feature 4:
- 3 Year warranty
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
0
More stock due in on 24/05/2022
Suggested products
Details
| Barcode | 5055788229704 |
|---|---|
| Quick Order Code | 149945 |
| Category | Panels |
| Range Name | Value+ |
| Product Type | 600 x 600 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Panels |
| Product Length (mm) | 596 |
| Product Depth (mm) | 8.2 |
| Product Width (mm) | 596 |
| Product Weight (g) | 2200 |
| Optic | Opal diffuser |
| Material | Aluminium, Steel, PS Diffuser |
| Construction | extruded Aluminium, steel back, LGP sheet and PS diffuser |

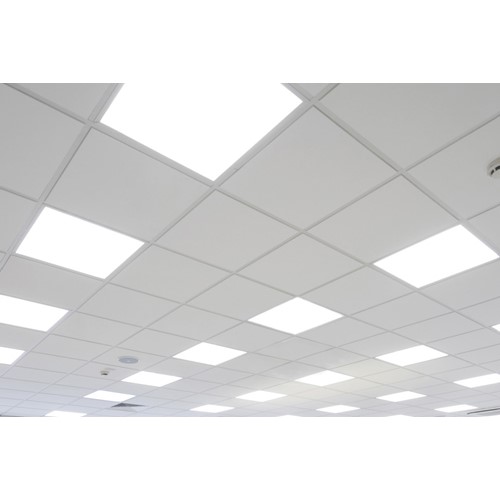

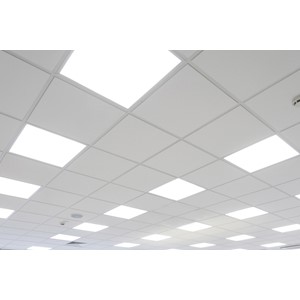

| Luminaire Fixing | Recessed in ceiling grid, surface mounted or suspended (additional surface mounted or suspension kit required) |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILP6060E007_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 3850 |
| Luminous efficacy (lm/W) | 101 |
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature | 6500K - Cool Daylight |
| Colour Temperature Name | Cool Daylight |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Lighting Method | Edge-lit |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 38 |
|---|---|
| Power Consumption (W) | 38 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Amperage (mA) | 835 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
| TP rating | None |
Packaging
| Barcode | 5055788229704 |
|---|---|
| Package Length (mm) | 686 |
| Package Width (mm) | 640 |
| Package Depth (mm) | 40 |
| Qty per euro pallet | 75 |
