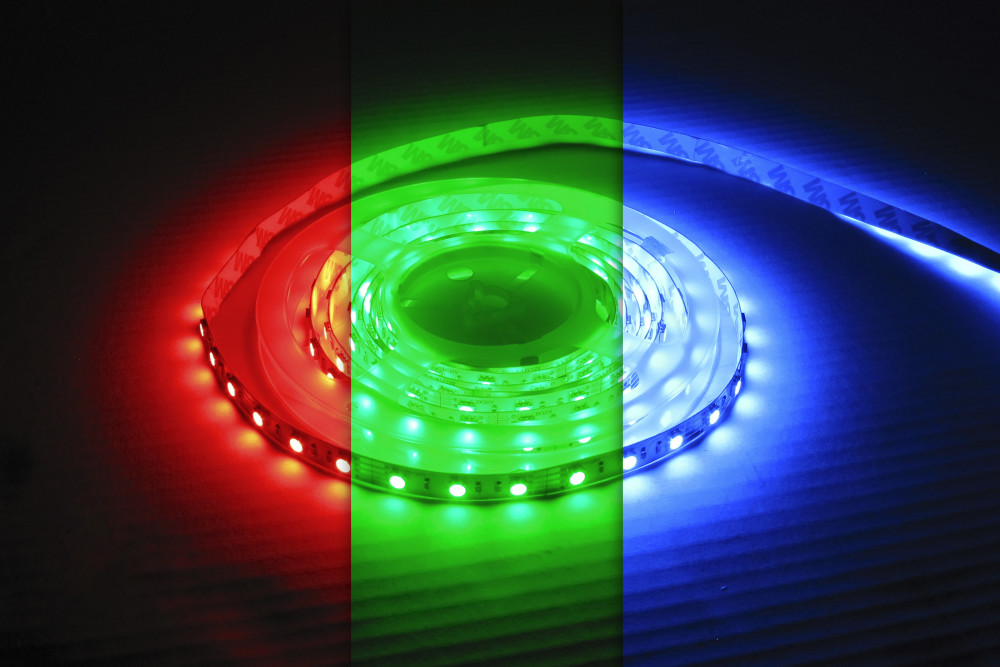

STRIP IP33 5M RGB 24V 14.4W/M 60LED/M 10MM WIDTH 115 BEAM BAG PACK INTEGRAL

Part Number:

ILSTRGBA034E

The Integral 5 metre 24V RGB colour changing and dimmable strip has 60 LEDs (50:50 SMD) per metre and is constructed using high quality materials to ensure consistent light and colour across the strip. This LED strip is IP33 rated and is suitable for indoor applications. Each 5m reel is supplied with an easy-to-follow installation guide and an extra connector (connector end to strip and 15cm wire to power) to power the strip if it is cut into two lengths. 3M backing tape is pre-applied to simplify the installation process. Additionally you can purchase the Integral RF remote control unit (ILRC001 for touch remote, ILRC002 for button remote or ILRC009 for button and touch) to control the RGB strips. The mood of the room can be easily set by changing the light colours. Additional accessories are available, to suit specific installation requirements.

Product Feature 1:
RGB Colour Changing
Product Feature 2:
24V DC Constant Voltage
Product Feature 3:
60 LEDs per metre
Product Feature 4:
14.4W per metre
Product Feature 5:
LED size 50:50
Availability:
0

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code '027769
Barcode 5055788227410
Category Strips
Range Name RGB Strip
Product Type Colour strip
Features RGB
Warranty (Years) 3
Product Width (mm) 10
Product Weight (g) 140
Material PCB
Construction LED surface mounted on to strip
Strip Cut Points (mm) 50
Max Run Length (m) 5
Strip length (M) 5
Strip Width (mm) 10
Colour Temperature Name RGB
Beam Angle 115
Colour Type RGB
LED Size (mm) 5050
LED Type Surface mounted device (SMD)
LEDs per meter 60
Lifetime (hours) 13000
Power Consumption per meter (W/m) 14.4
Voltage (V) 24
Voltage Range (v) 24
Watts per metre 10.1w - 20w
Dimming Dimmable
Driver Included No
Electric Current DC
EN IEC 62031
LVD Certified Yes
EN IEC 62031
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP33
Lowest Operating Temperature (°C) -25
Maximum Operating Temperature (°C) 60
Package Weight (g) 150
Package Length (mm) 205
Package Width (mm) 180
Package Depth (mm) 11

Product Specification Sheet

Safety Guides

Installation Guides
