STRIP IP67 5M RGB 24V 8.64W/M 30LED/M 12MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTRGBC035E

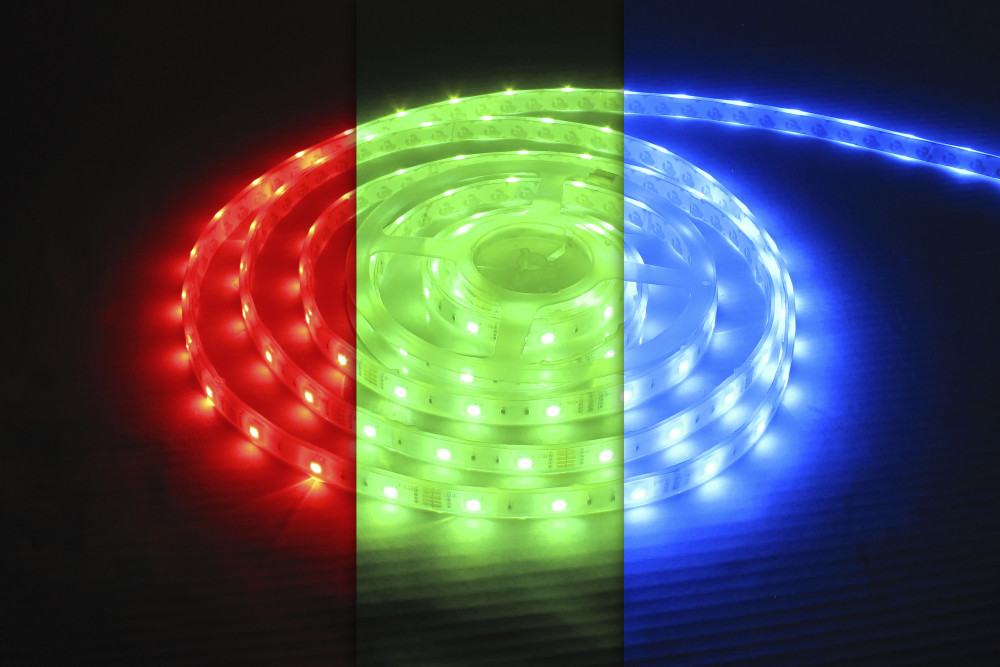

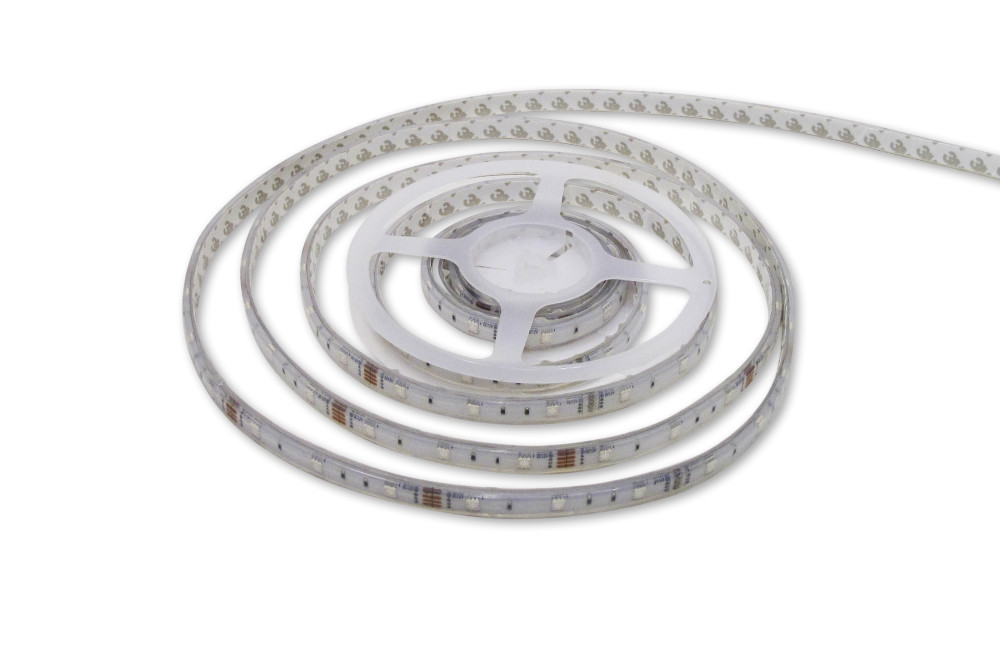

The Integral 5 metre 24V RGB colour changing and dimmable strip has 30 LEDs (50:50 SMD) per metre and is constructed using high quality materials to ensure consistent light and colour across the strip. This LED strip is IP67 rated and is suitable for indoor and outdoor applications. Each 5m reel is supplied with an easy-to-follow installation guide, 5x end caps (dead-end) and 20x mounting clips. 3M backing tape is pre-applied to simplify the installation process. Additionally you can purchase the Integral RF remote control unit (ILRC001 for touch remote, ILRC002 for button remote or ILRC009 for button and touch) to control the RGB strips. The mood of the room can be easily set by changing the light colours. Additional accessories are available, to suit specific installation requirements.
- Product Feature 1:

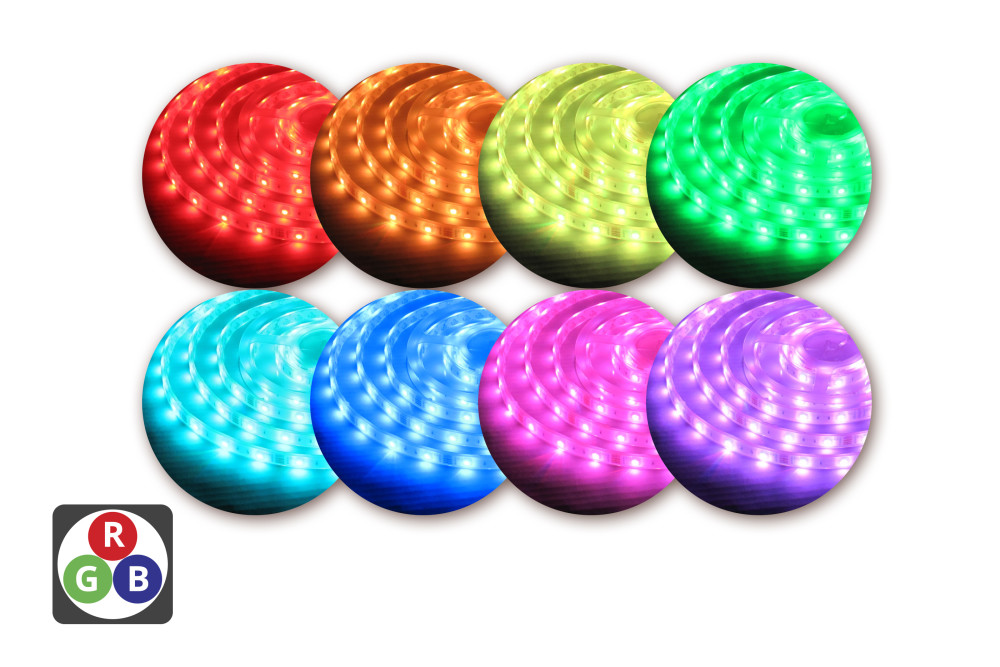

- RGB Colour Changing
- Product Feature 2:
- 24V DC Constant Voltage
- Product Feature 3:
- 30 LEDs per metre
- Product Feature 4:
- 8.64W per metre
- Product Feature 5:
- LED size 50:50
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | '027796 |
|---|---|
| Barcode | 5055788227441 |
| Category | Strips |
| Range Name | RGB Strip |
| Product Type | Colour strip |
| Features | RGB |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 12 |
|---|---|
| Product Weight (g) | 500 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 100 |
| Max Run Length (m) | 5 |
| Strip length (M) | 5 |
| Strip Width (mm) | 12 |
Light Data
| Colour Temperature Name | RGB |
|---|---|
| Beam Angle | 115 |
| Colour Type | RGB |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 30 |
| Lifetime (hours) | 13000 |
Electrical Data
| Power Consumption per meter (W/m) | 8.64 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 6.1w - 10w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 510 |
|---|---|
| Package Length (mm) | 260 |
| Package Width (mm) | 245 |
| Package Depth (mm) | 13 |
