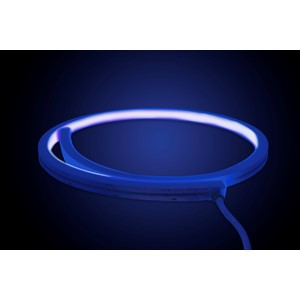

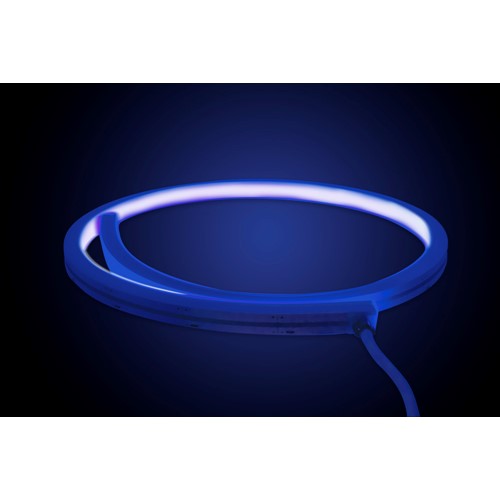

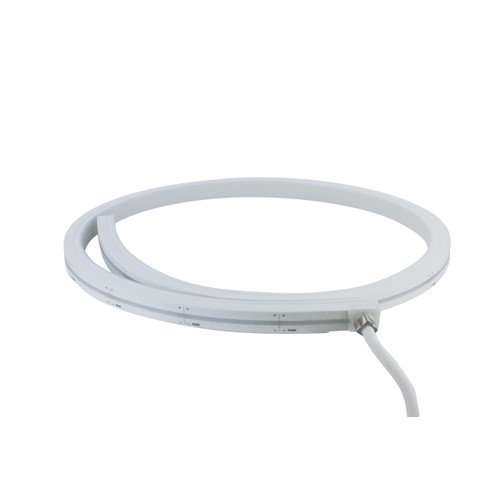

NEON STRIP TOP BEND IP67 5M BLUE 24V 9.6W/M 120LED/M 120 BEAM BOX PACK
Part Number:
ILSTBLUC195E
The IP67 Neon Flex strip offers high quality seamless and dot-free light output, ideal for customised neon lights for offices, retail, venues and domestic applications - even in humid indoor or outdoor environment. The silicone extrusion, along with full range of accessories, provides excellent flexibility, exquisite and unique appearance for every project.
- Product Feature 1:
- Top bend
- Product Feature 2:
- Blue colour
- Product Feature 3:
- 24V DC Constant Voltage
- Product Feature 4:
- 9.6W per metre
- Product Feature 5:
- IP67 for indoor and outdoor humid environment
- Product Feature 6:
- Totally spotless even when dimmed
- Product Feature 7:
- Mimics traditional Neon effect lighting
- Availability:
-
44
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788262336 |
|---|---|
| Quick Order Code | 267963 |
| Category | Strips |
| Range Name | Neon |
| Product Type | Colour strip |
| Market Segment | Commercial indoor, Residential indoor, Outdoor |
| Warranty (Years) | 3 |
Physical Data
| Product Weight (g) | 860 |
|---|---|
| Material | PCB, Silicone |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 50 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor, outdoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 13 |
Light Data
| Colour Temperature Name | Blue |
|---|---|
| Beam Angle | 120 |
| Colour Type | Single Colour |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 120 |
| Lifetime (hours) | 36000 |
Electrical Data
| Power Consumption per meter (W/m) | 9.6 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 6.1w - 10w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788262336 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 956 |
| Package Length (mm) | 380 |
| Package Width (mm) | 376 |
| Package Depth (mm) | 61 |
| Outer Carton Barcode | 05055788266013 |
| Qty per Outer Carton | 12 |
| Outer Carton Length (mm) | 410 |
| Outer Carton Width (mm) | 410 |
| Outer Carton Depth (mm) | 260 |
Safety Guide
ILSTBLUC195E
