STRIP IP20 5M 4000K 12V 4.5W/M 500LM/M 60LED/M 8MM WIDTH 115 BEAM CRI90 BAG PACK
Part Number:
ILSTWHIA058E

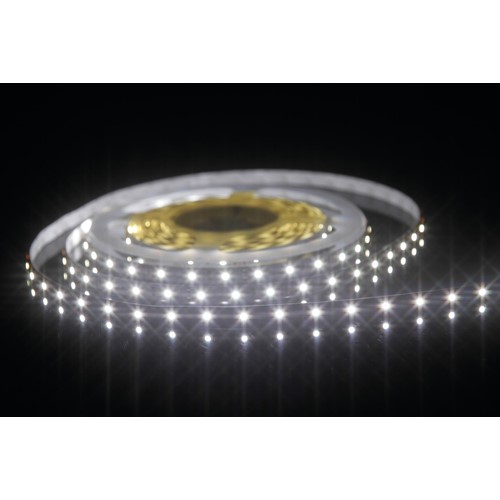

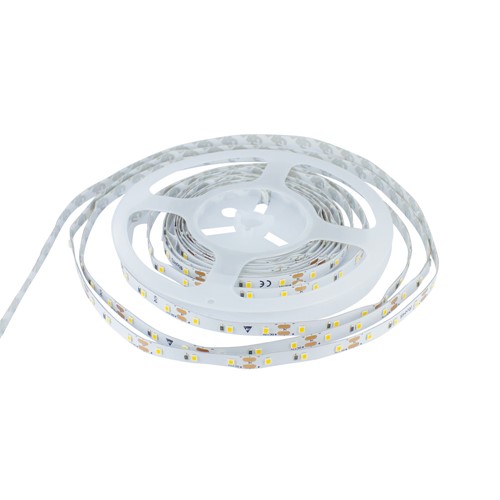

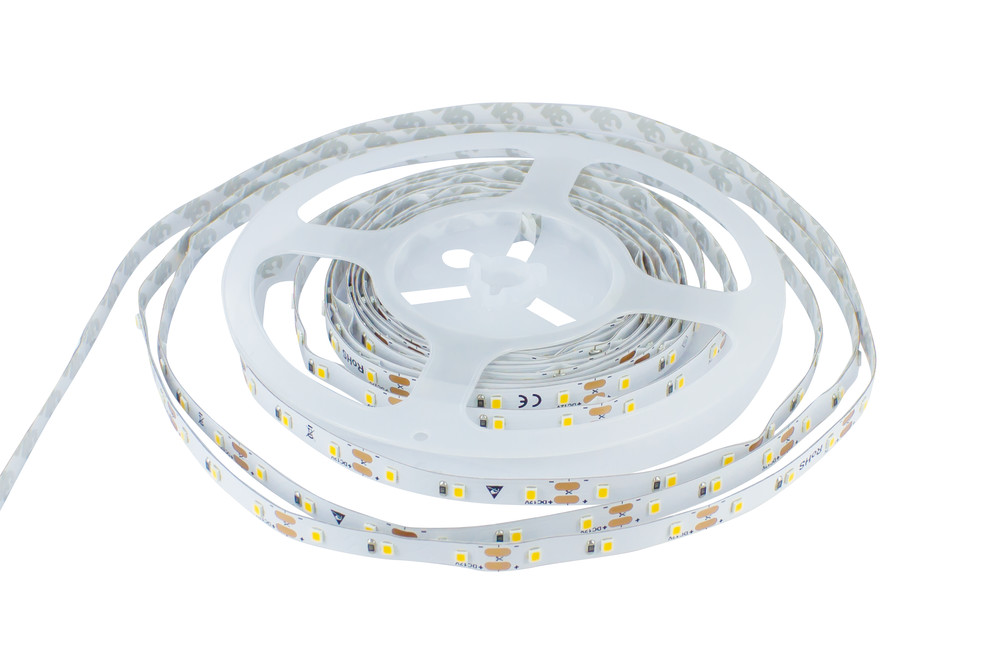

This cool white LED strip has 60pcs of SMD 28:35 LEDs per metre and is constructed using high quality materials to ensure a consistent brightness across the strip.
This Integral LED Strip offers high colour rendering (CRI 90) to bring out the colour in any space, your colours will appear more vibrant and better defined than with a standard LED stip (CRI 80) - ideal for showing colourful furniture, artwork, fashion, food and other retail products at their best.
Each 5m reel is supplied with an easy-to-follow installation guide. Additional accessories are available to purchase. A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).
- Product Feature 1:
- Cool White
- Product Feature 2:
- 12V DC Constant Voltage
- Product Feature 3:
- 4.5W per metre
- Product Feature 4:
- 60 LEDs per metre
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 399657 |
|---|---|
| Barcode | 5055788241300 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Strip Cut Points | 50 |
|---|---|
| Product Weight (g) | 85 |
| Material | PCB |
| Max Run Length (m) | 5 |
| Max Strip Width (mm) | 8 |
| Strip length (M) | 5 |
| Strip Width (mm) | 8 |
| Length (m) | 5 |
Light Data
| Luminous efficacy (lm/W) | 111 |
|---|---|
| Lumens per meter (lm/m) | 500 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 30000 |
Electrical Data
| Power Consumption per meter (W/m) | 4.5 |
|---|---|
| Voltage (V) | 12 |
| Watts per metre | 3.1W - 6w |
| Input Voltage (V) | 12 |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 105 |
|---|---|
| Package Length (mm) | 210 |
| Package Width (mm) | 190 |
| Package Depth (mm) | 15 |
