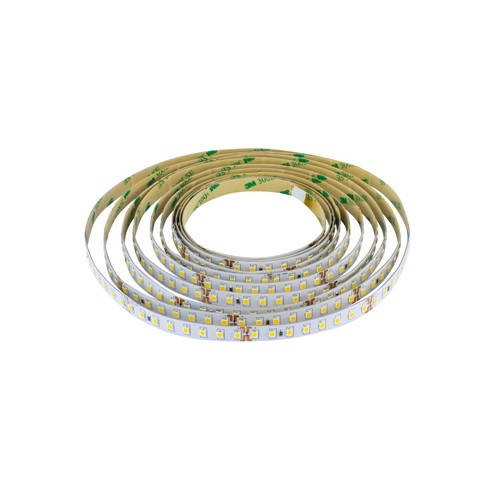

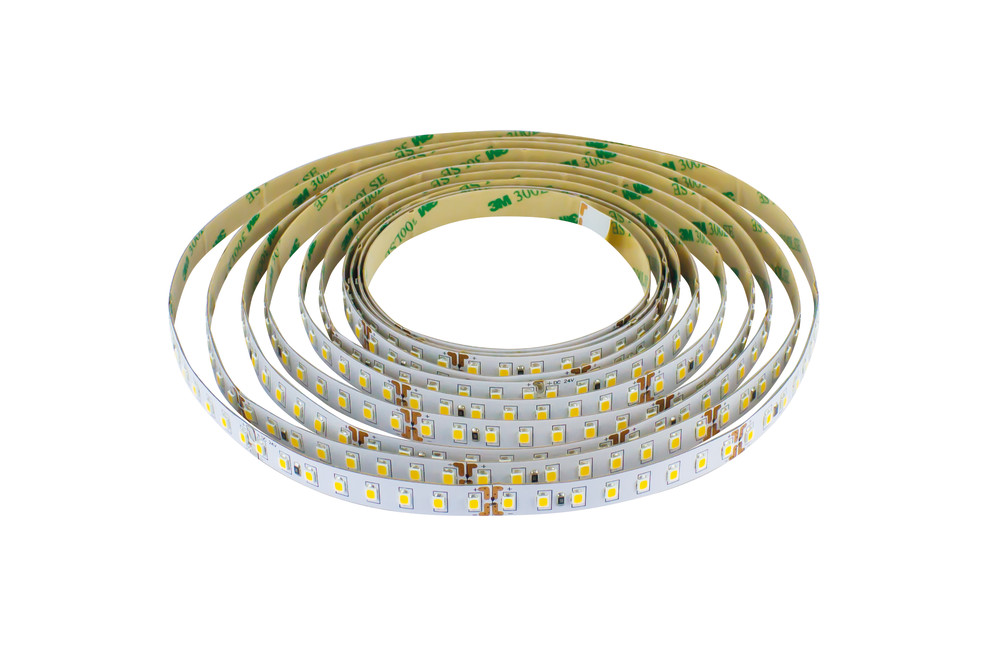

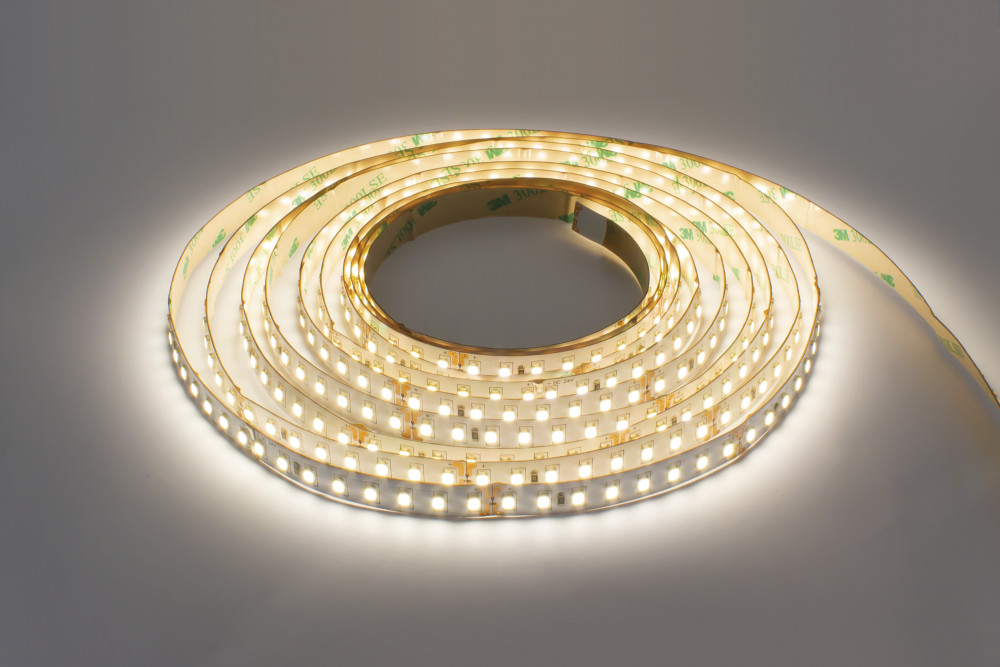

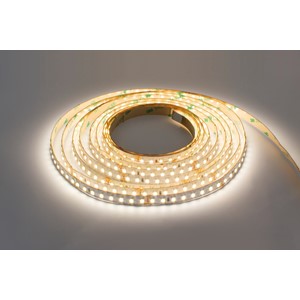

STRIP IP20 5M 4000K 24V 21.6W/M 2800LM/M 120LED/M 10MM WIDTH 120 BEAM CRI90 BAG PACK INTEGRAL
Part Number:
ILSTWHIA133E
The Integral High Lumen LED strips are designed to produce a brightness of 2800lm/m and to ensure superior consistency in colour temperature and light emission across the strip. The high CRI rating of >90 gives a real, vibrant colour rendering to bring out the true colour in space - including homes, retail, galleries and showrooms. The High Lumen LED strips are suitable for highquality architectural lighting and cove lighting with high ceiling integration. The cuttable marked positions every 66.6mm allow for the creation of custom-designed luminaires using suitable aluminium profiles.
- Product Feature 1:
- High Brightness - 2800lm/m
- Product Feature 2:
- High luminous efficacy up to 129lm/W
- Product Feature 3:
- Consistent light across the strip
- Product Feature 4:
- High CRI > 90
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 966678 |
|---|---|
| Barcode | 5055788250913 |
| Category | Strips |
| Range Name | High Lumen Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor |
| Features | High lumen |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 10 |
|---|---|
| Product Weight (g) | 120 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 66.6 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
Light Data
| Energy Efficiency Label (Image) | ILSTWHIA133E_EU_label |
|---|---|
| Luminous efficacy (lm/W) | 130 |
| Lumens per meter (lm/m) | 21.6 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 120 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 21.6 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 20.1w - 30w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 160 |
|---|---|
| Package Length (mm) | 216 |
| Package Width (mm) | 255 |
| Package Depth (mm) | 12 |
