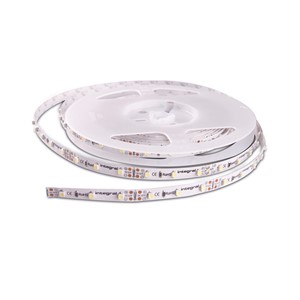

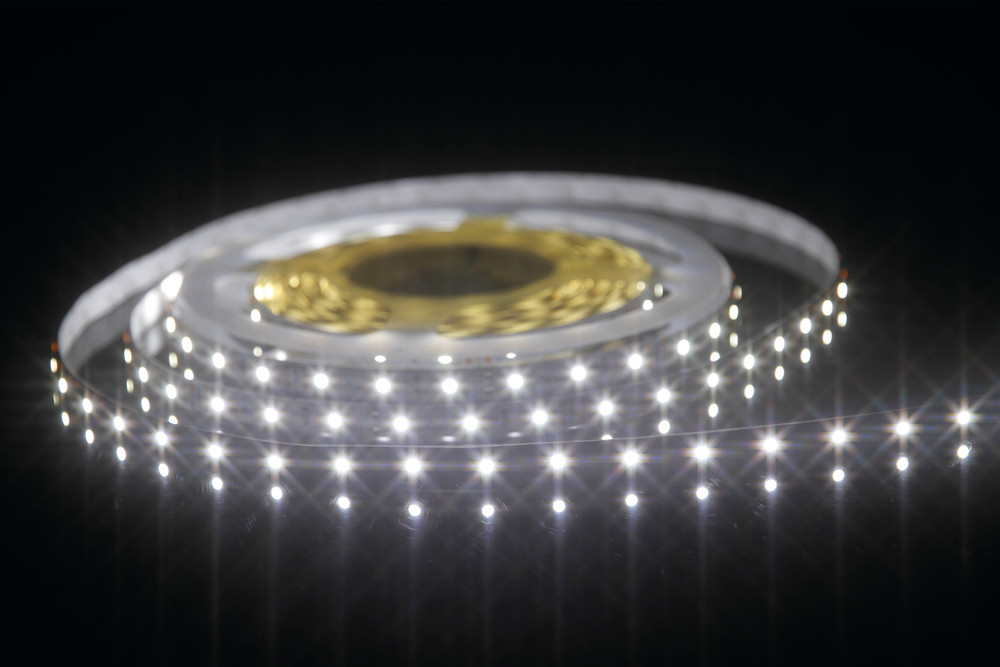

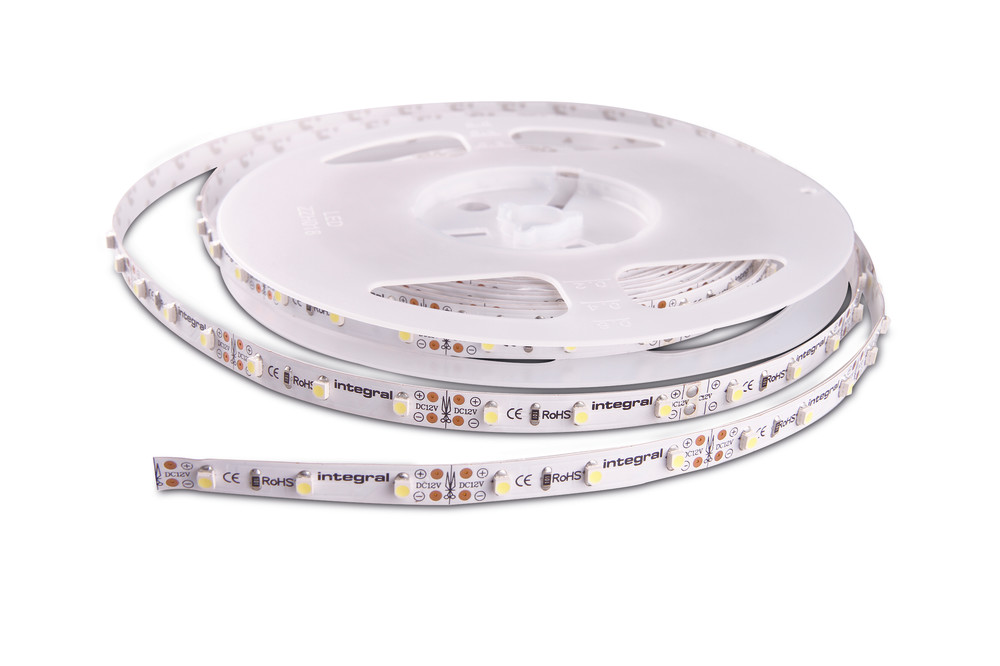

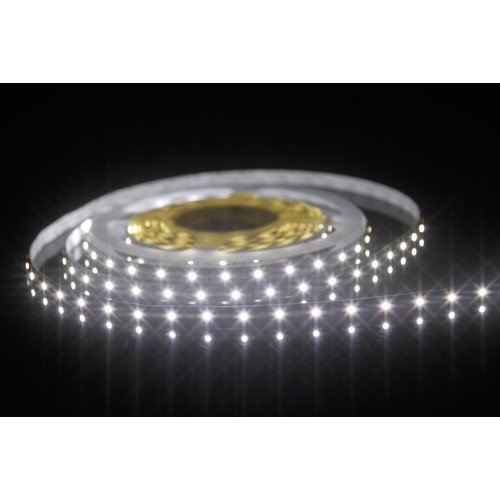

STRIP IP20 5M 6500K 24V 12W/M 1000LM/M 60LED/M 10MM WIDTH 115 BEAM CRI90 BAG PACK INTEGRAL
Part Number:
ILSTWHIA080E
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Rich reds, pretty pinks, gorgeous greens - This Integral LED Strip offers high colour rendering (CRI 90) to bring out the colour in any space . Your colours will appear more vibrant and better defined than with a standard LED stip (CRI 80) - ideal for showing colourful furniture, artwork, fashion, food and other retail products at their best.
- Product Feature 1:
- High CRI 90
- Product Feature 2:
- 24V
- Product Feature 3:
- 12W/m
- Product Feature 4:
- 60LEDs/M
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 808812 |
|---|---|
| Barcode | 5055788235057 |
| Category | Strips |
| Range Name | High CRI Strip |
| Product Type | White strip |
| Market Segment | Indoor commercial, Industrial, residential |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 10 |
|---|---|
| Product Weight (g) | 100 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 100 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative Indoor, General Lighting |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
Light Data
| Energy Efficiency Label (Image) | ILSTWHIA080E_EU_label |
|---|---|
| Lumens per meter (lm/m) | 1000 |
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature Name | Cool Daylight |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 16200 |
Electrical Data
| Power Consumption per meter (W/m) | 12 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Package Weight (g) | 120 |
|---|---|
| Package Length (mm) | 205 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 11 |
