STRIP IP33 5M 4000K 24V 12W/M 950LM/M 60LED/M 10MM WIDTH 115 BEAM CRI80 BAG PACK CAN RUN UP TO MAX 10M INTEGRAL
Part Number:
ILSTWHIA106E
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

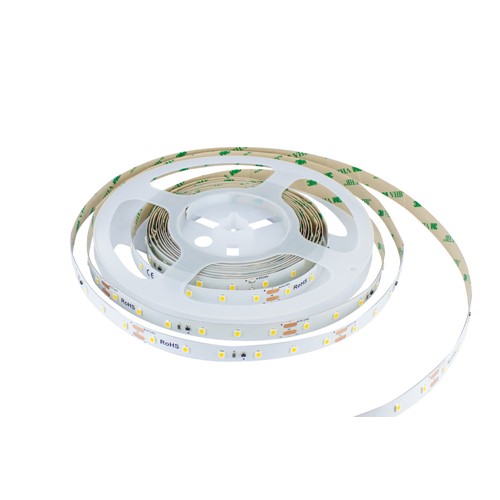

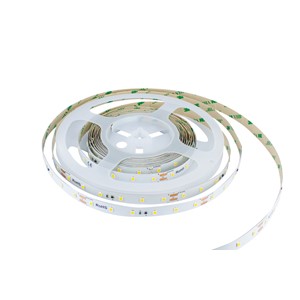

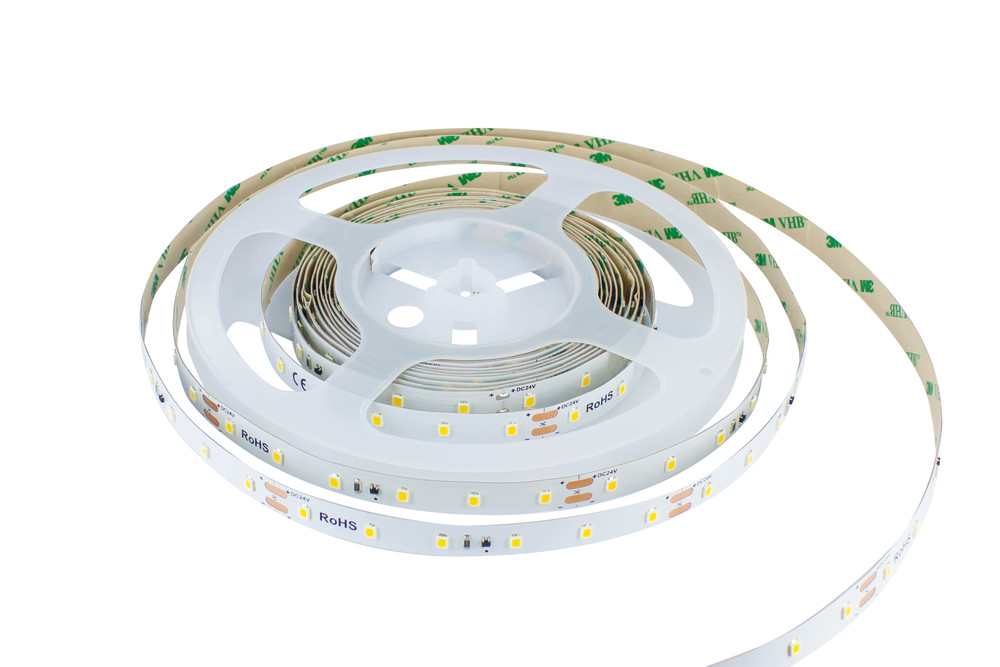

This cool white LED strip has 60pcs of SMD 28:35 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP33 rated and is suitable for indoor applications.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 24V DC Constant Voltage
- Product Feature 3:
- 12W per metre
- Product Feature 4:
- LED size 28:35
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 510024 |
|---|---|
| Barcode | 5055788241331 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 10 |
|---|---|
| Product Weight (g) | 130 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 100 |
| Max Run Length (m) | 10 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
Light Data
| Energy Efficiency Label (Image) | ILSTWHIA106E_EU_label |
|---|---|
| Lumens per meter (lm/m) | 950 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 12 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Lowest Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°C) | 33 |
Packaging
| Package Weight (g) | 140 |
|---|---|
| Package Length (mm) | 205 |
| Package Width (mm) | 180 |
| Package Depth (mm) | 11 |
