STRIP IP67 5M 3500K 12V 6W/M 325LM/M 60LED/M 10MM WIDTH 115 BEAM BAG PACK INTEGRAL

Part Number:

ILSTWHIC012E

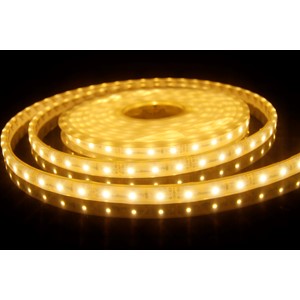

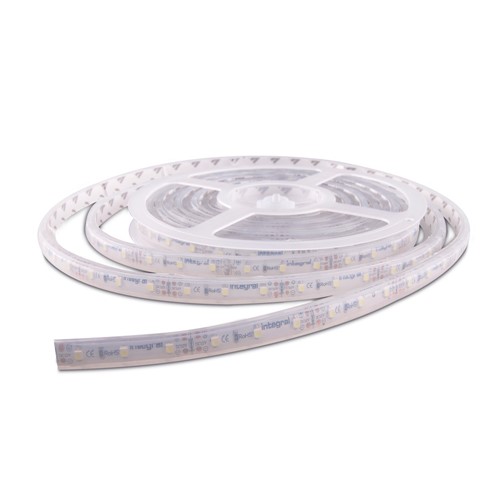

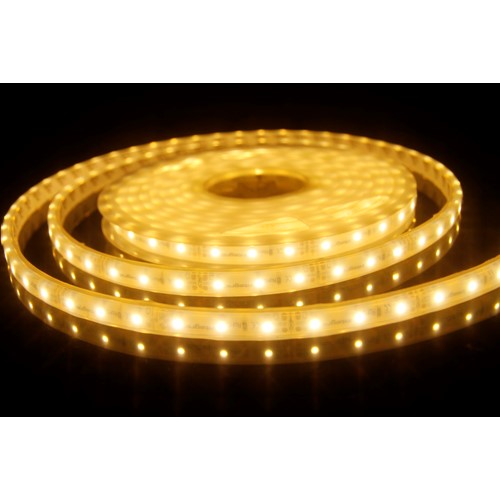

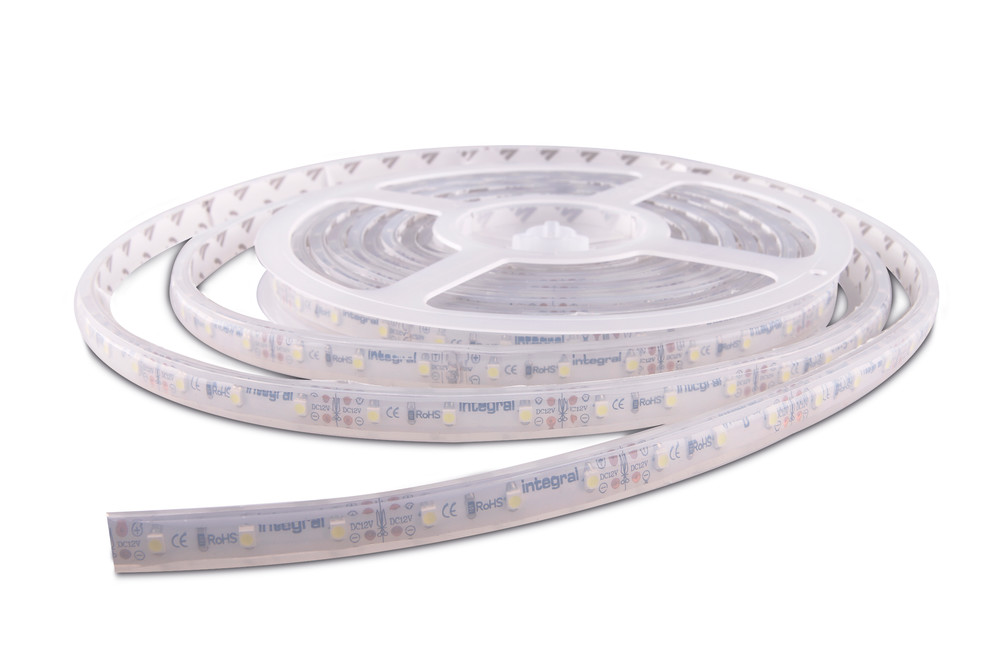

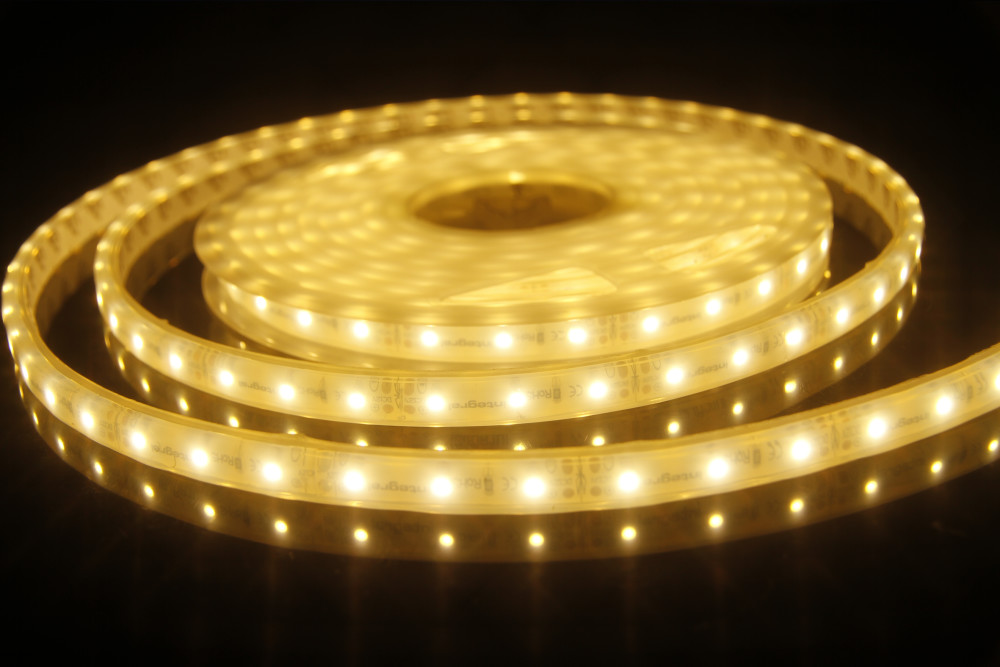

This warm white LED strip has 60 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP67 rated and is suitable for indoor and outdoor applications. Each 5m reel is supplied with an easy-to-follow installation guide and 20 mounting clips. Additional accessories are available to purchase. A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).

Product Feature 1:
Warm white
Product Feature 2:
12V DC Constant Voltage
Product Feature 3:
6W per metre
Product Feature 4:
LED size 35:28
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 729835
Barcode 5055788220732
Category Strips
Range Name White Strip
Product Type White strip
Market Segment Residential indoor, outdoor
Warranty (Years) 3
Product Width (mm) 10
Product Weight (g) 475
Material PCB
Construction LED surface mounted on to strip, silicone poured on to seal
Strip Cut Points (mm) 50
Max Run Length (m) 5
Placement / Application Decorative indoor, outdoor
Strip length (M) 5
Strip Width (mm) 10
Luminous efficacy (lm/W) 54
Lumens per meter (lm/m) 325
Correlated Colour Temperature (CCT) (K) 3500
Colour Temperature Name Warm White
Beam Angle 115
Colour Rendering Index (CRI) 80
Colour Type White
LED Size (mm) 3528
LED Type Surface mounted device (SMD)
LEDs per meter 60
Lifetime (hours) 13000
Power Consumption per meter (W/m) 6
Voltage (V) 12
Watts per metre 3.1W - 6w
Dimming Dimmable
Driver Included No
Electric Current DC
EN EN-62031
LVD Certified Yes
EN EN-62031
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP67
Lowest Operating Temperature (°C) -25
Maximum Operating Temperature (°C) 60
Package Weight (g) 481
Package Length (mm) 205
Package Width (mm) 230
Package Depth (mm) 11
