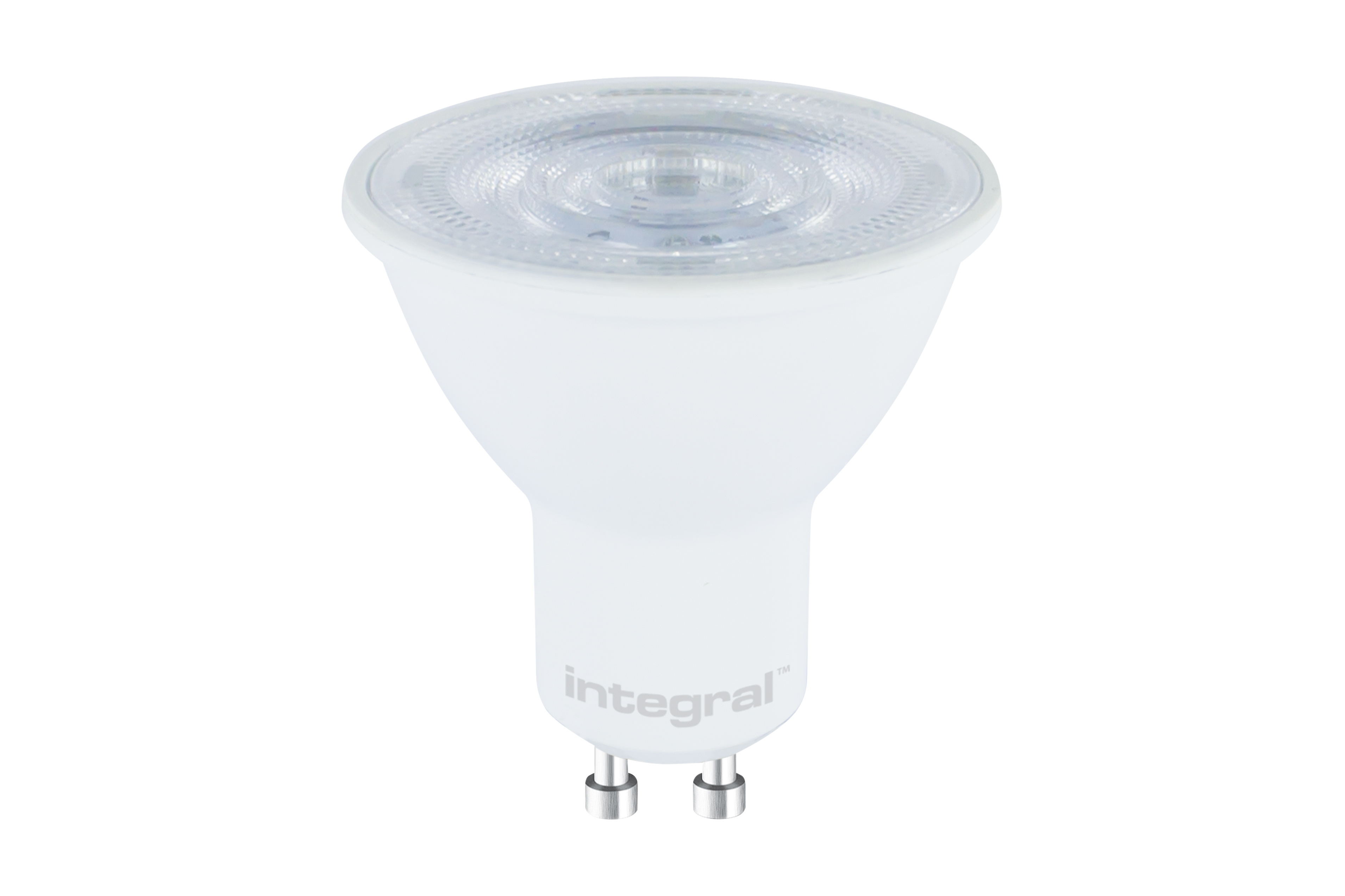

CLASSIC GU10 BULB 520LM 4.9W 4000K DIMMABLE 55 BEAM INTEGRAL
ILGU10DE101
This GU10 lamp offers a wider beam angle of 55 degrees, which will cover a larger area in light with fewer lamps than other GU10 spotlights. The LEDs are specially arranged for a COB-like effect, which paired with the diffuser lens creates a light quality very similar to traditional halogen spotlights.
Details
- Quick Order Code:
- 881146
- Barcode:
- 5055788237211
- Category:
- Lamps
- Range Name:
- 56 deg Beam Angle
- Product Type:
- GU10
- Product Body Finish:
- Matt white
- Market Segment:
- Commercial indoor, Residential indoor
- Warranty (Years):
- 2
- CE RoHS:
- Yes
Physical Data
- Product Length (mm):
- 54
- Product Width (mm):
- 50
- Product Weight (g):
- 50
- Optic:
- Designed to give a Classic Look
- Material:
- Plastic and Aluminium heat-sink, Injection moulded diffuser
- Base Term:
- GU10
- Bulb Base:
- GU10
- Construction:
- Plastic White and "Classic look" difuser lens
- Bulb Fixing:
- Downlight
- Bulb or Luminaire Shape:
- Round
- Placement / Application:
- Indoor, General Lighting
- Spot Type:
- SMD with "COB like effect"
Electrical Data
- Power (W):
- 4.9
- Power Consumption (W) :
- 4.9
- Power Factor:
- 0.4
- Voltage Range (v):
- 220-240
- Wattage equivalent (W):
- 65
- Amperage (mA):
- 32
- Dimming:
- Dimmable with compatible dimmers
- Driver Included:
- Yes
- Electric Current:
- AC
- True Wattage Eq (W):
- 65
- EN:
- EN-62560
- LVD Certified:
- Yes
Light Data
- Luminous Flux in Lumens (lm):
- 540
- Luminous efficacy (lm/W):
- 106
- Peak Intensity (Cd):
- 600
- Correlated Colour Temperature (CCT) (K):
- 4000
- Colour Temperature:
- 4000K - Cool White
- Colour Temperature Name:
- Cool White
- Beam Angle:
- 55
- Colour Rendering Index (CRI):
- 80
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- LED Type:
- Surface mounted device (SMD)
- Lifetime (hours):
- 15000
- Switching Cycles:
- 50000
- Useful Lumens (lm):
- 460
Environment
- EN:
- EN-62560
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- Previous Energy Rating:
- A+
- New Energy Rating:
- E
- Hg 0% (Mercury Free):
- Yes
- IP Rating (Ingress Protection):
- IP20
- Lowest Operating Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 40
Packaging
- Package Weight (g):
- 42
- Package Length (mm):
- 55
- Package Width (mm):
- 55
- Package Depth (mm):
- 60
