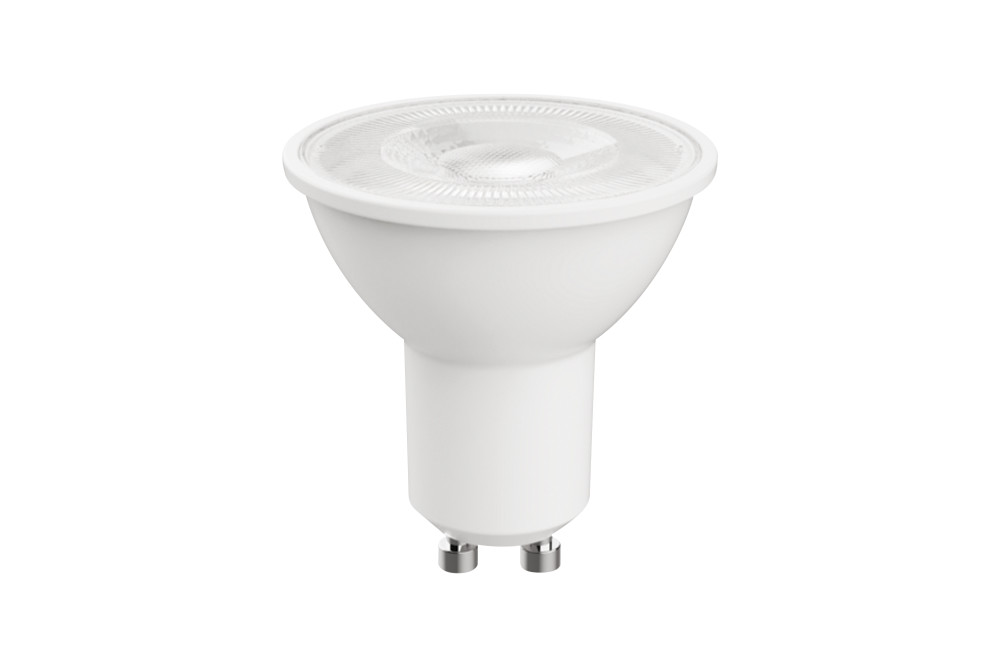

GU10 BULB 360LM 2W 6500K CLASS A NON-DIMM 36 BEAM INTEGRAL
ILGU10NG132
The Integral LED Max Efficiency GU10 range achieves Class A energy rating with up to 212 lm/W, enabling savings of up to 60% on energy usage compared to other LED lamps. By incorporating a stylish engineered lens in an affordable GU10, the Max Efficiency offers directional light with a beam angle that closely mirrors that of familiar halogen lamps along with all the energy-saving and long-life benefits of LED.
Details
- Quick Order Code:
- '042124
- Barcode:
- 5055788276845
- Category:
- Lamps
- Range Name:
- Max Efficiency
- Product Type:
- GU10
- Product Body Finish:
- Matt white
- Market Segment:
- Commercial indoor, Residential indoor
- Warranty (Years):
- 3
- CE RoHS:
- Yes
Physical Data
- Product Length (mm):
- 54
- Product Width (mm):
- 50
- Product Weight (g):
- 32
- Optic:
- Designed to give a Classic Look
- Material:
- Plastic and Aluminium, Injection moulded diffuser
- Base Term:
- GU10
- Bulb Base:
- GU10
- Construction:
- Plastic and Aluminium heat-sink, Injection moulded diffuser
- Globe Finish:
- Clear
- Bulb or Luminaire Shape:
- Round
- Placement / Application:
- Indoor, General Lighting
- Spot Type:
- SMD with "COB like effect"
Electrical Data
- Power (W):
- 2
- Power Consumption (W) :
- 2
- Power Factor:
- 0.4
- Voltage Range (v):
- 220-240
- Wattage equivalent (W):
- 50
- Amperage (mA):
- 22
- Dimming:
- Non-Dimmable
- Driver Included:
- Yes
- Electric Current:
- AC
- True Wattage Eq (W):
- 50
- EN:
- EN-62560
- LVD Certified:
- Yes
Light Data
- Luminous Flux in Lumens (lm):
- 380
- Luminous efficacy (lm/W):
- 212
- Peak Intensity (Cd):
- 600
- Correlated Colour Temperature (CCT) (K):
- 6500
- Colour Temperature:
- 6500K - Cool Daylight
- Colour Temperature Name:
- Cool Daylight
- Beam Angle:
- 36
- Colour Rendering Index (CRI):
- 80
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- LED Type:
- Surface mounted device (SMD)
- Lifetime (hours):
- 50000
- Switching Cycles:
- 50000
- Useful Lumens (lm):
- 360
Environment
- EN:
- EN-62560
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- Previous Energy Rating:
- A++
- New Energy Rating:
- A
- Hg 0% (Mercury Free):
- Yes
- IP Rating (Ingress Protection):
- IP20
- Lowest Operating Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 40
Packaging
- Package Weight (g):
- 41
- Package Length (mm):
- 62
- Package Width (mm):
- 48
- Package Depth (mm):
- 48
- Qty per euro pallet:
- 4000
