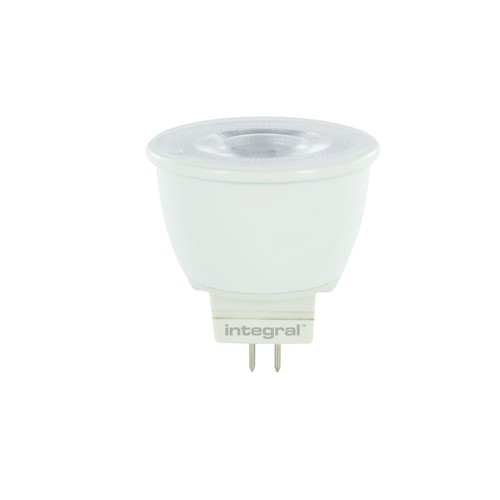

MR11 GU4 BULB 380LM 3.4W 2700K NON-DIMM 36 BEAM INTEGRAL
Part Number:
ILMR11NC009
This 3.7W retro-fit Integral LED MR11 delivers brightness similar to a 35W halogen bulb, in white light. It features three high output Osram LEDs, an anti-glare refractor, all finished with an aluminium and plastic thermally efficient body. The ideal lamp for commercial and home use.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 345 Useful Lumens (380 Nominal)
- Product Feature 3:
- Non-Dimmable
- Availability:
-
500+
More stock due in on 13/09/2024
Details
Quick Order Code | 594879 |
---|---|
Barcode | 5055788234869 |
Category | Lamps |
Range Name | 12V GU4 Base |
Product Type | MR11 |
Market Segment | Commercial indoor, Residential indoor |
Warranty (Years) | 2 |
Physical Data
Product Length (mm) | 38 |
---|---|
Product Width (mm) | 35 |
Product Weight (g) | 18 |
Optic | Refractor Cover for enhanced light distribution |
Material | Plastic |
Base Term | GU4 |
Bulb Base | MR11 |
Globe Finish | Clear |
Bulb Fixing | Downlight |
Bulb or Luminaire Shape | Round |
Placement / Application | Indoor, General Lighting |
Spot Type | High Power Three LED |
Light Data
Energy Efficiency Label (Image) | ILMR11NC009_EU_label |
---|---|
Luminous Flux in Lumens (lm) | 380 |
Luminous efficacy (lm/W) | 103 |
Peak Intensity (Cd) | 780 |
Correlated Colour Temperature (CCT) (K) | 2700 |
Colour Temperature | 2700K - Warm |
Colour Temperature Name | Warm |
Beam Angle | 36 |
Colour Rendering Index (CRI) | 80 |
Compatible Dimmers | Varilight |
Frequency Range (Hz) | 50 |
Instant on (Less than 1 second) | Yes |
LED Type | Surface mounted device (SMD) |
Lifetime (hours) | 15000 |
Switching Cycles | 50000 |
Useful Lumens (lm) | 345 |
Electrical Data
Power (W) | 3.7 |
---|---|
Power Consumption (W) | 3.7 |
Power Factor | 0.4 |
Voltage Range (v) | 12 |
Wattage equivalent (W) | 35 |
Amperage (mA) | 470 |
Dimming | Non-Dimmable |
Driver Included | Integrated, Needs to be powered via 12V AC Transformer |
Electric Current | AC |
True Wattage Eq (W) | 35 |
EN | EN-62560 |
LVD Certified | Yes |
Environmental
EN | EN-62560 |
---|---|
LVD Certified | Yes |
CE RoHS | Yes |
Previous Energy Rating | A+ |
New Energy Rating | F |
Hg 0% (Mercury Free) | Yes |
IP Rating (Ingress Protection) | IP20 |
Lowest Operating Temperature (°C) | -20 |
Maximum Operating Temperature (°C) | 40 |
Packaging
Package Weight (g) | 30 |
---|---|
Package Length (mm) | 35 |
Package Width (mm) | 35 |
Package Depth (mm) | 40 |
