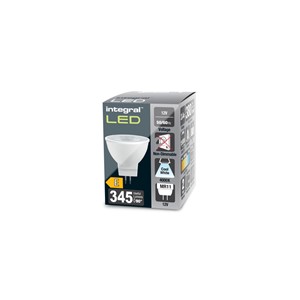

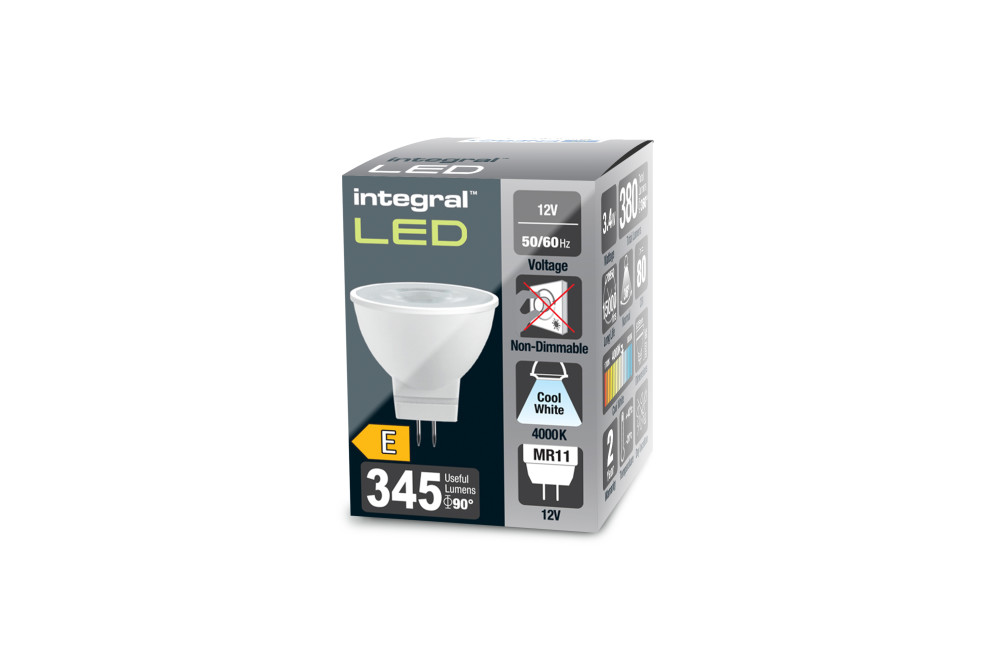

MR11 GU4 BULB 380LM 3.7W 4000K NON-DIMM 36 BEAM INTEGRAL
Part Number:
ILMR11NE010
This 3.4W retro-fit Integral LED MR11 delivers brightness similar to a 35W halogen bulb, in cool white light. It features four high output LEDs, an anti-glare refractor, all finished with a plastic thermally efficient body. The ideal lamp for commercial and home use.
- Product Feature 1:
- Cool White Light
- Product Feature 2:
- 345 Useful Lumens (380 Nominal)
- Product Feature 3:
- Non-Dimmable
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 564732 |
|---|---|
| Barcode | 5055788234890 |
| Category | Lamps |
| Range Name | 12V GU4 Base |
| Product Type | MR11 |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 38 |
|---|---|
| Product Width (mm) | 35 |
| Product Weight (g) | 18 |
| Optic | Refractor Cover for enhanced light distribution |
| Material | Plastic |
| Base Term | GU4 |
| Bulb Base | MR11 |
| Construction | Plastic White, Plastic diffuser |
| Globe Finish | Clear |
| Bulb Fixing | Downlight |
| Bulb or Luminaire Shape | Round |
| Placement / Application | Indoor, General Lighting |
| Spot Type | High Power Three LED |
Light Data
| Energy Efficiency Label (Image) | ILMR11NE010_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 380 |
| Luminous efficacy (lm/W) | 110 |
| Peak Intensity (Cd) | 850 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 30000 |
| Useful Lumens (lm) | 345 |
Electrical Data
| Power (W) | 3.4 |
|---|---|
| Power Consumption (W) | 3.4 |
| Power Factor | 0.4 |
| Voltage Range (v) | 12 |
| Wattage equivalent (W) | 35 |
| Amperage (mA) | 440 |
| Dimming | Non-Dimmable |
| Driver Included | No, needs 12V AC Transformer |
| Electric Current | AC |
| True Wattage Eq (W) | 35 |
| EN | EN-62560 |
| LVD Certified | Yes |
Environmental
| EN | EN-62560 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Previous Energy Rating | A++ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 30 |
|---|---|
| Package Length (mm) | 50 |
| Package Width (mm) | 35 |
| Package Depth (mm) | 35 |
| Qty per euro pallet | 10500 |
