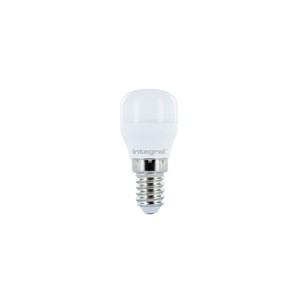

PYGMY BULB E14 144LM 1.5W 2700K NON-DIMM 240 BEAM FROSTED INTEGRAL
ILPYGE14N001
THIS ITEM IS NOW DISCONTINUED. REPLACEMENT PRODUCT ILPYGE14N002
This E14 Pygmy lamp will provide energy efficient light for festoons, fridges and other displays with limited space.
Details
- Barcode:
- 5055788231547
- Quick Order Code:
- 306043
- Category:
- Lamps
- Range Name:
- Pygmy
- Product Type:
- Pygmy
- Market Segment:
- Commercial indoor, Residential indoor
- Warranty (Years):
- 2
Physical Data
- Product Length (mm):
- 59
- Product Width (mm):
- 25
- Product Weight (g):
- 11
- Material:
- Plastic and Aluminium heat-sink, Injection moulded diffuser
- Base Term:
- Small Edison screw
- Bulb Base:
- E14
- Construction:
- Plastic heat-sink, Injection moulded diffuser
- Globe Finish:
- Frosted
- Globe Type:
- Pygmy
- Bulb or Luminaire Shape:
- Round
- Placement / Application:
- Indoor, General Lighting
Electrical Data
- Power (W):
- 1.5
- Power Consumption (W) :
- 1.5
- Power Factor:
- 0.3
- Voltage Range (v):
- 220-240
- Wattage equivalent (W):
- 15
- Amperage (mA):
- 13
- Dimming:
- Non-Dimmable
- Driver Included:
- Yes
- Electric Current:
- AC
- True Wattage Eq (W):
- 10
- EN:
- EN-62560
- LVD Certified:
- Yes
Light Data
- Luminous Flux in Lumens (lm):
- 144
- Luminous efficacy (lm/W):
- 96
- Correlated Colour Temperature (CCT) (K):
- 2700
- Colour Temperature:
- 2700 - Warm
- Colour Temperature Name:
- Warm
- Beam Angle:
- 240
- Colour Rendering Index (CRI):
- 80
- Frequency Range (Hz):
- 50/60
- Instant on (Less than 1 second):
- Yes
- LED Type:
- Surface mounted device (SMD)
- Lifetime (hours):
- 15000
- Switching Cycles:
- 50000
Environment
- EN:
- EN-62560
- LVD Certified:
- Yes
- CE RoHS:
- Yes
- New Energy Rating:
- F
- Hg 0% (Mercury Free):
- Yes
- IP Rating (Ingress Protection):
- IP20
- Lowest Operating Temperature (°C):
- -20
- Maximum Operating Temperature (°C):
- 40
Packaging
- Barcode:
- 5055788231547
- Single box qty:
- 1
- Package Weight (g):
- 30
- Package Length (mm):
- 64
- Package Width (mm):
- 26
- Package Depth (mm):
- 26
- Inner Carton Barcode:
- 05055788267942
- Qty per Inner Carton :
- 10
- Inner Carton Length (mm):
- 146
- Inner Carton Width (mm):
- 118
- Inner Carton Depth (mm):
- 74
- Outer Carton Barcode:
- 05055788231561
- Qty per Outer Carton:
- 100
- Outer Carton Length (mm):
- 418
- Outer Carton Width (mm):
- 166
- Outer Carton Depth (mm):
- 138
- Qty per euro pallet:
- 15600
