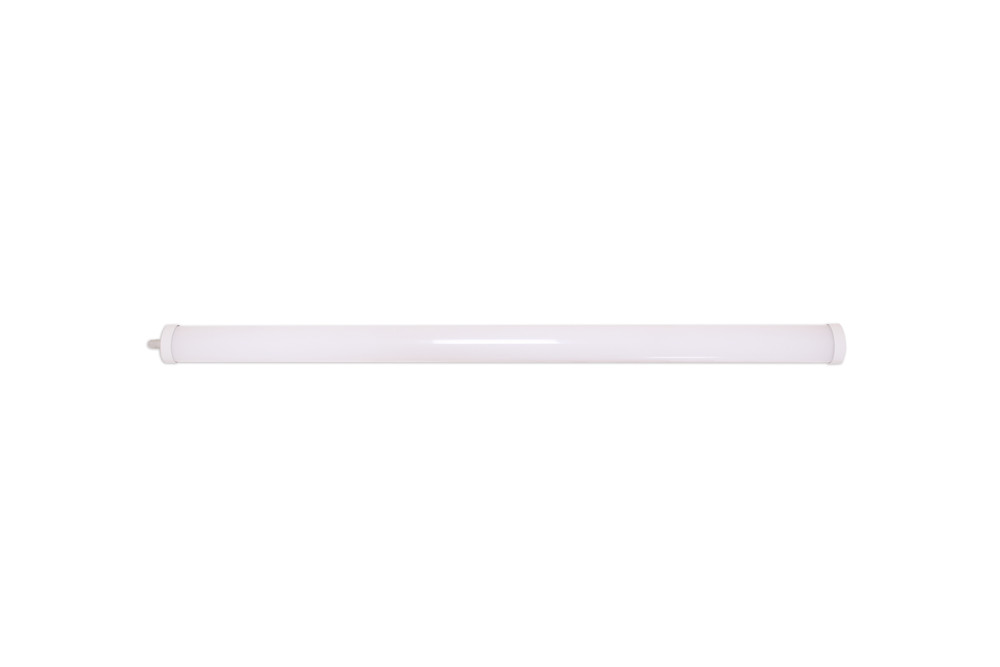

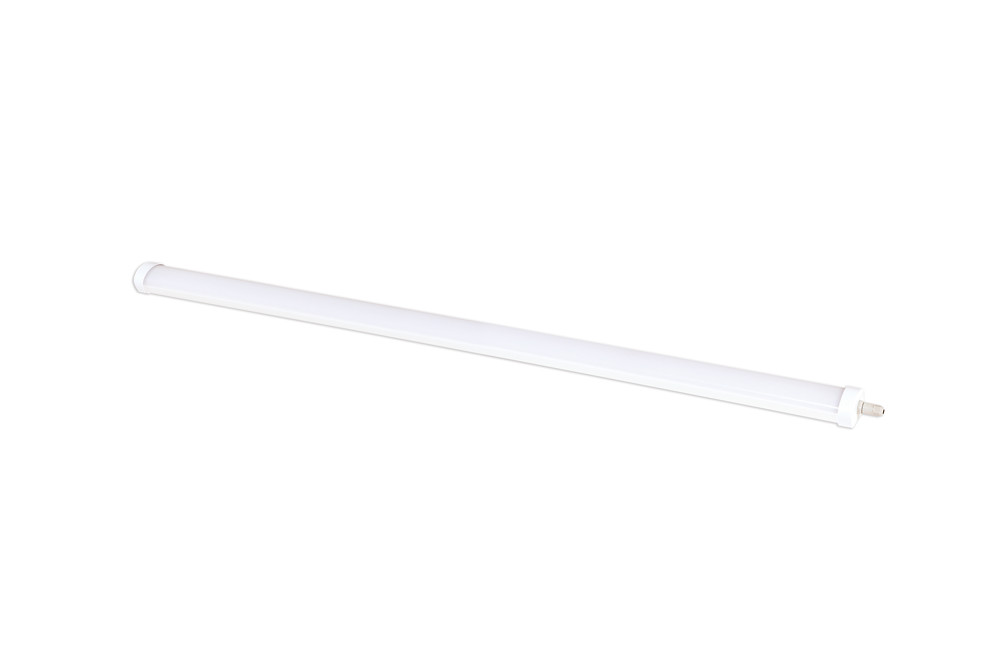

SLIMLINE BATTEN IP65 4370LM 38W 4000K 120 BEAM 115LM/W 1200MM 4FT NON-LINK NON-DIMM INTEGRAL

Part Number:

ILBTOA006

Integral IP65 LED battens are highly efficient, perfect for new installations and ideal for replacing traditional waterproof luminaires.

The batten range has a white injection moulded housing and diffuser. To connect more than one batten in a series, use the cable entry gland supplied with the batten. Fixing brackets are also included and the LED driver is integrated for easier installation.

Product Feature 1:
4370lm
Product Feature 2:
Cool White
Product Feature 3:
25000hrs
Product Feature 4:
Class II
Product Feature 5:
115lm/W
Product Feature 6:
3 year warranty
Availability:
100+

Call us on 0208 451 8700 to check the next availability

49.88 GBP

RRP + VAT

Suggested products

Barcode 5055788218197
Category Luminaires
Range Name Slimline IP65
Type Twin
Product Type Battens
Product Body Finish Matt white
Market Segment Indoor and Outdoor Commercial, Industrial, Residential
Finish Matt White
Warranty (Years) 3
Emergency Option No
Size (in ft) 4ft
Product Length (mm) 1266
Product Depth (mm) 52
Product Width (mm) 75
Product Weight (g) 960
Optic Polycarbonate diffuser
Material Polycarbonate
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Wall/Ceiling mounted
Mounting Type Rear & Side Cable Entry
Placement / Application Indoor, Outdoor, General Lighting
Energy Efficiency Label (Image) ILBTOA006_EU_label
Luminous Flux in Lumens (lm) 4370
Luminous efficacy (lm/W) 115
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 25000
Switching Cycles 12500
Useful Lumens (lm) 4370
Power Consumption (w) 38
Power Factor 0.9
Voltage Range (v) 220-240
Wattage equivalent (W) 56
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
Package Weight (g) 1040
Package Length (mm) 1335
Package Width (mm) 76
Package Depth (mm) 54
Qty per euro pallet 144

Product Specification Sheet

IES Files

LDT Files

Installation Guides
