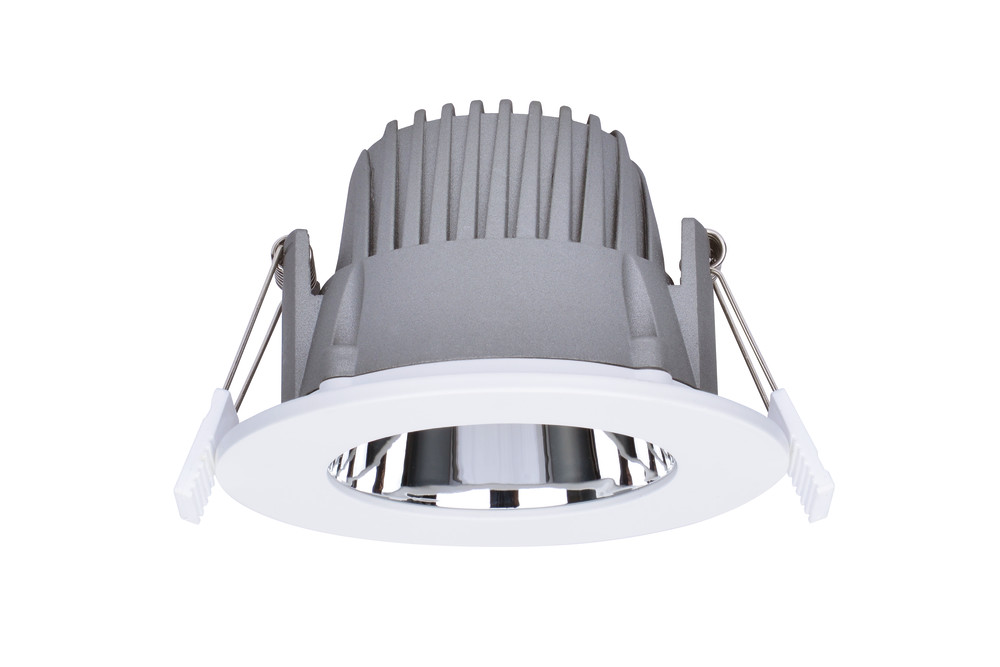

RECESSED DOWNLIGHT 90MM CUTOUT 10W 950LM 95LM/W 3000K 65 BEAM NON-DIMM WHITE INTEGRAL

Part Number:

ILDL90H005

Recess Pro is a range of high-performance aluminium LED downlights with outstanding efficiency and extra-long lifetime. Ideal for replacement of traditional recessed CFL downlights. The deep-recessed design ensures a low-glare. The Recess Pro family is engineered to reduce your lighting energy consumption by up to 50%.

This range of well-finished, lightweight and IP44 protection rated downlights are suitable for placement in Zones 1 and 2 of bathrooms/washrooms as well as common indoor spaces. The included easy to use loop-in/loop-out driver with push-fit connector provides for a quick and safe installation.

Product Feature 1:
90mm cut out
Product Feature 2:
950lm
Product Feature 3:
65 Degrees Beam
Product Feature 4:
95lm/W
Product Feature 5:
3000K
Product Feature 6:
IP44
Product Feature 7:
Non-Dimmable
Availability:
100+

Call us on 0208 451 8700 to check the next availability

28.90 GBP

RRP + VAT

Barcode 5055788250166
Category Downlights
Range Name Recess Pro
Product Type LED Downlights
Product Body Finish Matt white
Market Segment Commercial indoor
Finish Matt White
Fixed/Tiltable Fixed
Warranty (Years) 3
Product Depth (mm) 70
Product Weight (g) 280
Diameter (mm) 102
Optic PMMA diffuser
Material Aluminium
Overall diameter (mm) 102
Cut Out Diameter (mm) 90
Luminaire Fixing Wall/Ceiling mounted
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILDL90H005_EU_label
Luminous efficacy (lm/W) 95
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature 3000K - Warm White
Colour Temperature Name Warm White
Beam Angle 65
Colour Rendering Index (CRI) 80
LED Type Surface mounted device (SMD)
Lifetime (hours) 60000
Switching Cycles 15000
Power (W) 10
Power Consumption (w) 10
Voltage Range (v) 220-240VAC 50/60Hz
Wattage equivalent (W) CFL 18W
Dimming Non-Dimmable
Driver Included Yes
EN EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified Yes
EN EN 60598, EN 55015, EN 61547, EN 61000
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP44
Lowest Operating Temperature (°C) -10
Maximum Operating Temperature (°C) 40
Package Weight (g) 420
Package Length (mm) 140
Package Width (mm) 140
Package Depth (mm) 95

Product Specification Sheet

LDT Files

Installation Guides
