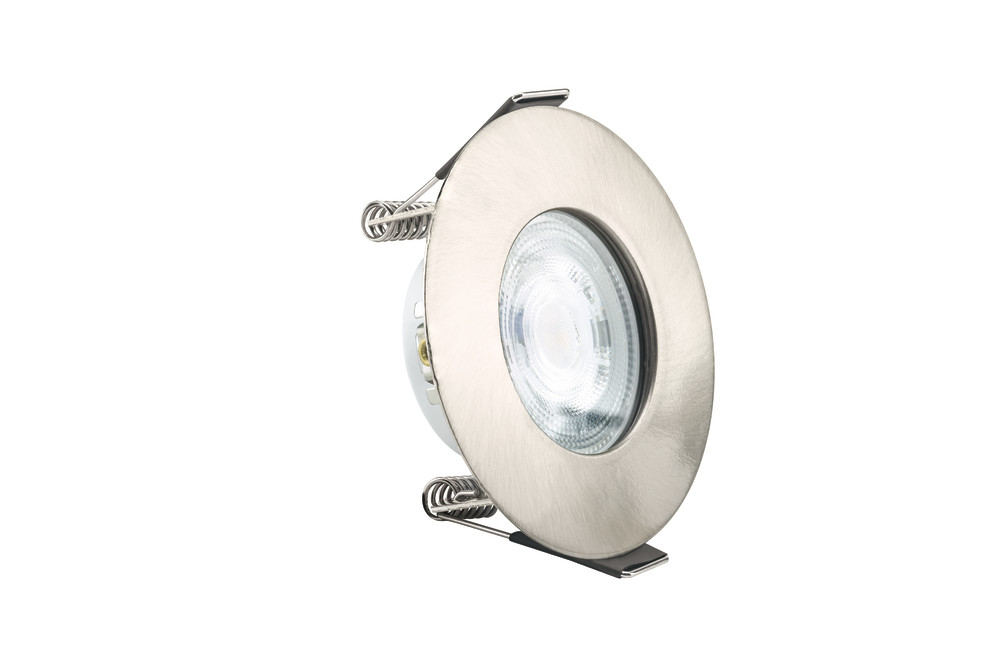

EVOFIRE+ FRDL 70MM CUTOUT IP65 400LM 3.8W 4000K 36 BEAM DIMMABLE 105LM/W SATIN NICKEL ROUND INTEGRAL
Part Number:
ILDLFR70D036
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Ideal for tight spaces - 38.5mm super-low profile and replaceable lamp (Evolight).

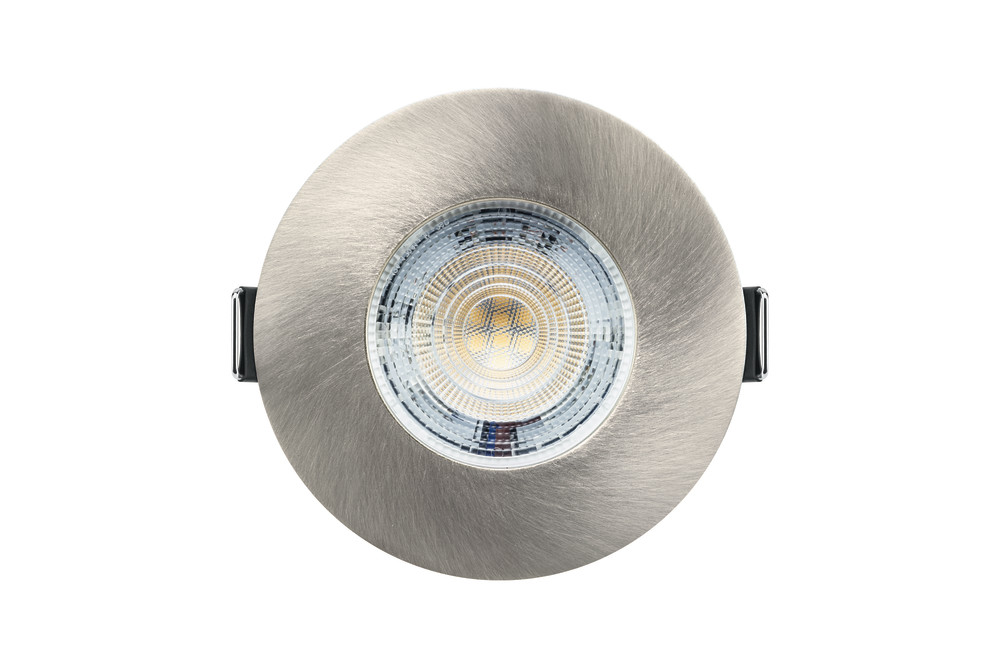

Attractive look in any room - Ultra-thin 1mm blend-in bezel with a premium finish.
Easy wiring - with a 28cm cable and Fast-Fit, loop-in/loop-out, junction box for tool-free assembly.
Easy to install and remove - Lightweight steel body, only 104g.
Extended lamp life - Open design allows airflow to extend lamp life compared to traditional designs.
70mm Cut-Out, 85mm Diameter, IP65, Dimmable.
This downlight is fire rated to 30, 60 and 90 minutes in compliance with BS476 Part 21:1987, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. See installation guide for full details.
- Product Feature 1:
- Only 38.5mm high
- Product Feature 2:
- Developed in the UK - Patent GB2557957
- Product Feature 3:
- Fire Rating 30/60/90 minutes - Tested in UKAS Accredited Lab
- Product Feature 4:
- Ultra-thin 1mm 'blend-in' bezel with a premium finish for an attractive look in any room
- Product Feature 5:
- Supplied with a 28cm cable and Fast-Fit loop-in/loop-out junction box
- Product Feature 6:
- Lamp included
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 278689 |
|---|---|
| Barcode | 5055788254485 |
| Category | Downlights |
| Range Name | Evofire+ |
| Product Body Finish | Satin Nickel |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Satin Nickel |
| Warranty (Years) | 3 |
Physical Data
| Product Depth (mm) | 38.5 |
|---|---|
| Product Weight (g) | 104 |
| Diameter (mm) | 85 |
| Material | Steel, Glass, Plastic |
| Overall diameter (mm) | 85 |
| Construction | Injection molded plastic, Pressed Steel, Glass |
| Cut Out Diameter (mm) | 70 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILDLFR70D036_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 400 |
| Luminous efficacy (lm/W) | 106 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90 |
| Frequency Range (Hz) | 50 |
| LED Size (mm) | 2835 |
| LED Type | SMD |
| Lifetime (hours) | 15000 |
| Switching Cycles | 7500 |
| Useful Lumens (lm) | 400 |
Electrical Data
| Power Consumption (W) | 3.8 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 24 |
| Dimming | Dimmable |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 185 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 97 |
| Package Depth (mm) | 60 |
| Qty per euro pallet | 2400 |
