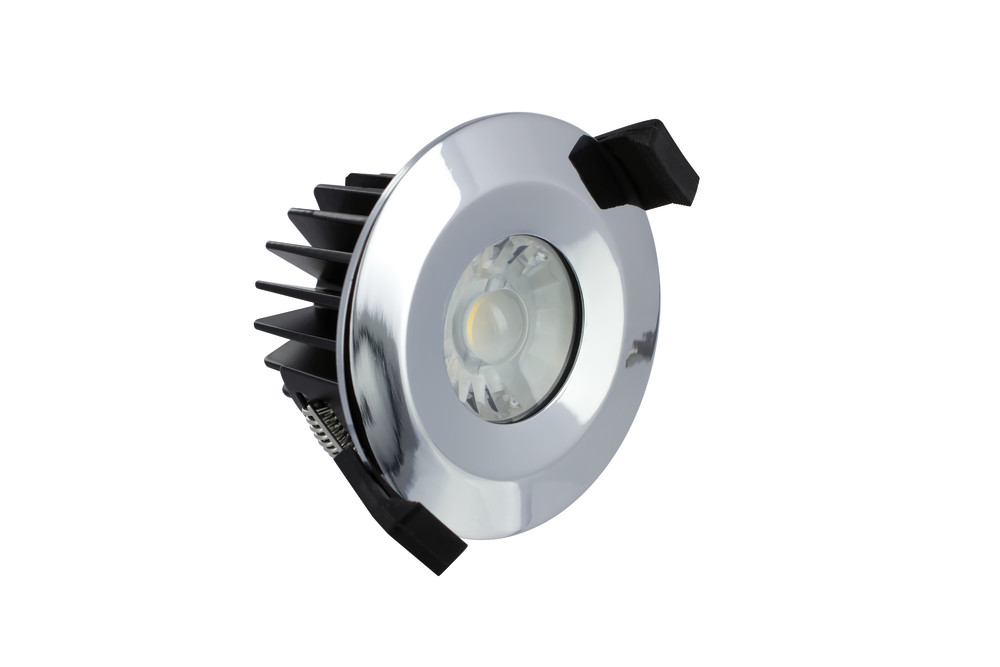

LOW-PROFILE FIRE RATED DOWNLIGHT 70-75MM CUTOUT IP65 440LM 6W 4000K 38 BEAM DIMMABLE 73LM/W POLISHED CHROME INTEGRAL
Part Number:
ILDLFR70B009
These low-profile lamps are fire rated to 30, 60 and 90 minutes, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. Warm White and Cool White colour temperature options and dimmable or non-dimmable options are available. Importantly, these lamps are IP65 rated and designed to offer the safety and quality of other Fire Rated Downlights but with a lower price-tag.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 440 Lumens
- Product Feature 3:
- Dimmable
- Product Feature 4:
- Low-profile body
- Product Feature 5:
- Supplied with polished chrome bezel
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
277
More stock due in on 13/12/2024
Suggested products
Details
| Quick Order Code | 659872 |
|---|---|
| Barcode | 5055788225133 |
| Category | Downlights |
| Range Name | Low-profile |
| Product Type | Fire Rated |
| Product Body Finish | Polished Chrome |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Polished Chrome |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Downlights |
| Product Length (mm) | 58 |
| Product Weight (g) | 280 |
| Diameter (mm) | 85 |
| Optic | Clear Refractor |
| Material | Aluminium alloy, Iron, Steel |
| Overall diameter (mm) | 85 |
| Construction | Extruded Aluminium heat-sink, Iron body, Steel springs and mounting plate |
| Cut Out Diameter (mm) | 70-75 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Energy Efficiency Label (Image) | ILDLFR70B009_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 440 |
| Luminous efficacy (lm/W) | 73 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power (W) | 6 |
|---|---|
| Power Consumption (W) | 6 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 40 |
| Amperage (mA) | 300 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 350 |
|---|---|
| Package Length (mm) | 110 |
| Package Width (mm) | 108 |
| Package Depth (mm) | 82 |
| Qty per euro pallet | 1500 |
