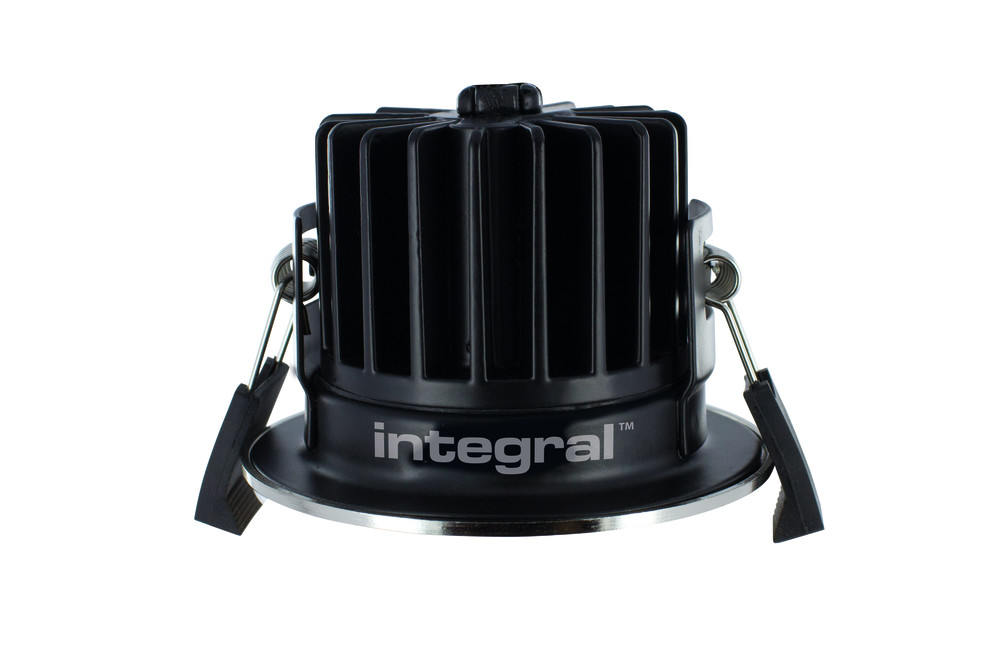

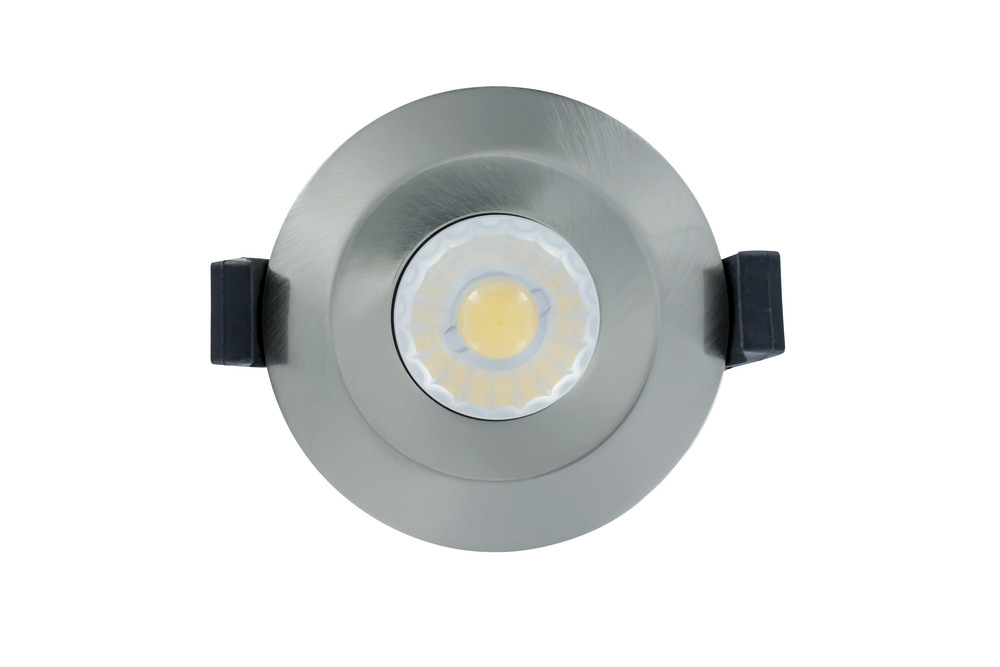

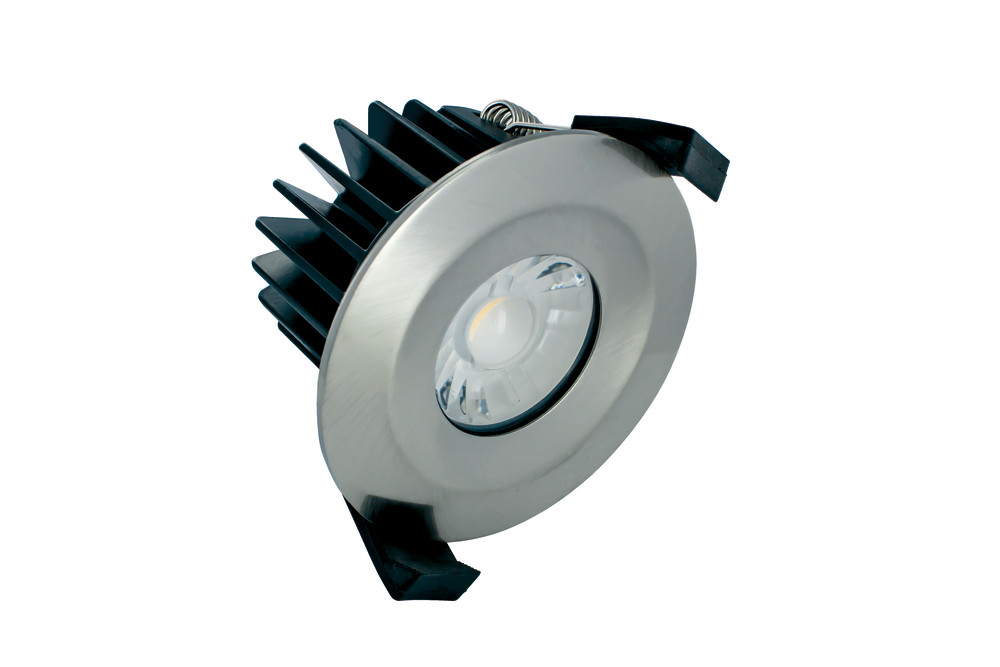

LOW-PROFILE FIRE RATED DOWNLIGHT 70-75MM CUTOUT IP65 510LM 6W 3000K 36 BEAM DIMMABLE 85LM/W SATIN NICKEL INTEGRAL
Part Number:
ILDLFR70B014
These low-profile lamps are fire rated to 30, 60 and 90 minutes, Air Tightness compliant with Part C and Part L and Resistance to Sound compliant with Part E. Warm White and Cool White colour temperature options and dimmable or non-dimmable options are available. Importantly, these lamps are IP65 rated and designed to offer the safety and quality of other Fire Rated Downlights but with a lower price-tag. The stylish satin-nickel finish looks great in any ceiling.
- Product Feature 1:
- Warm white
- Product Feature 2:
- 510 Lumens
- Product Feature 3:
- Dimmable
- Product Feature 4:
- Supplied with satin nickel bezel
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
500+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788229247 |
|---|---|
| Quick Order Code | 147016 |
| Category | Downlights |
| Range Name | Low-profile |
| Product Type | Fire Rated |
| Product Body Finish | Satin Nickel |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Satin Nickel |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Emergency Category | Downlights |
| Product Length (mm) | 45 |
| Product Width (mm) | 85 |
| Product Weight (g) | 280 |
| Diameter (mm) | 85 |
| Optic | Clear Refractor |
| Material | Aluminium alloy, Acrylic, Iron |
| Overall diameter (mm) | 85 |
| Construction | Extruded Aluminium alloy heat-sink, Iron body, Steel springs and mounting plate, Acrylic diffuser |
| Cut Out Diameter (mm) | 70-75 |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | COB |
Light Data
| Energy Efficiency Label (Image) | ILDLFR70B014_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 510 |
| Luminous efficacy (lm/W) | 85 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000K - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 38 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Fire Rating (mins) | 30, 60, 90 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Chip-on-board (COB) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 12500 |
Electrical Data
| Power (W) | 6 |
|---|---|
| Power Consumption (W) | 6 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 40 |
| Amperage (mA) | 300 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788229247 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 350 |
| Package Length (mm) | 110 |
| Package Width (mm) | 108 |
| Package Depth (mm) | 82 |
| Inner Carton Barcode | 05055788229285 |
| Qty per Inner Carton | 10 |
| Inner Carton Length (mm) | 560 |
| Inner Carton Width (mm) | 255 |
| Inner Carton Depth (mm) | 80 |
| Outer Carton Barcode | 05055788229322 |
| Qty per Outer Carton | 40 |
| Outer Carton Length (mm) | 575 |
| Outer Carton Width (mm) | 525 |
| Outer Carton Depth (mm) | 185 |
| Qty per euro pallet | 1500 |
Safety Guide
ILDLFR70B014
