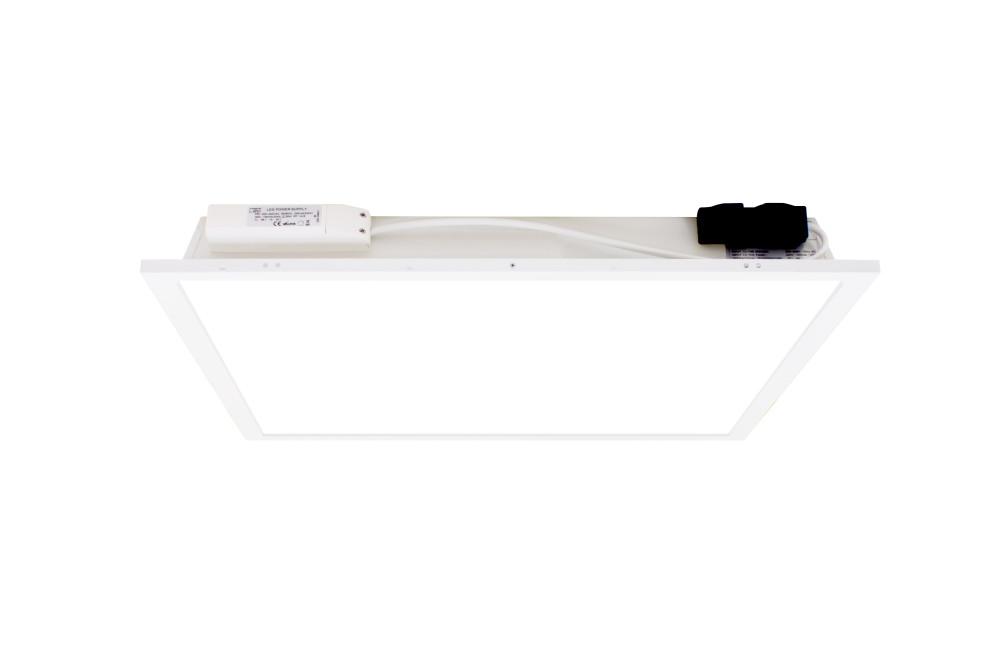

COMPACT HIGH PERFORMANCE+ PANEL 600X600 IP44 3500LM 23W 5000K NON-DIMM 152LM/W BACKLIT INTEGRAL
Part Number:
ILP6060B026
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
This 23W and 3500lm Integral LED High Performance+ panel delivers a uniform Daylight light across the whole of its surface. Its very high level of efficacy (152lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panels.
The panel is fitted with a polycarbonate diffuser that has been tested by a UK based laboratory and passes BS782-0:2004 Method 508A, as required by Fire Safety regulations. Its lightweight steel and PC design, with integrated non-flicker driver, means installation is simple and maintenance is minimal. It is an ideal solution for many applications: office, meeting rooms, corridors, schools/universities and retail premises.
- Product Feature 1:
- Daylight
- Product Feature 2:
- 3500 Lumens
- Product Feature 3:
- 152lm/W
- Product Feature 4:
- TP(a) rated Polycarbonate diffuser
- Product Feature 5:
- 5 Year Warranty
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788228264 |
|---|---|
| Quick Order Code | '053852 |
| Category | Panels |
| Range Name | Compact High Performance+ |
| Product Type | 600 x 600 |
| Product Body Finish | White steel |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 596 |
|---|---|
| Product Depth (mm) | 65 |
| Product Width (mm) | 596 |
| Product Weight (g) | 2900 |
| Optic | TP(a) rated Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |

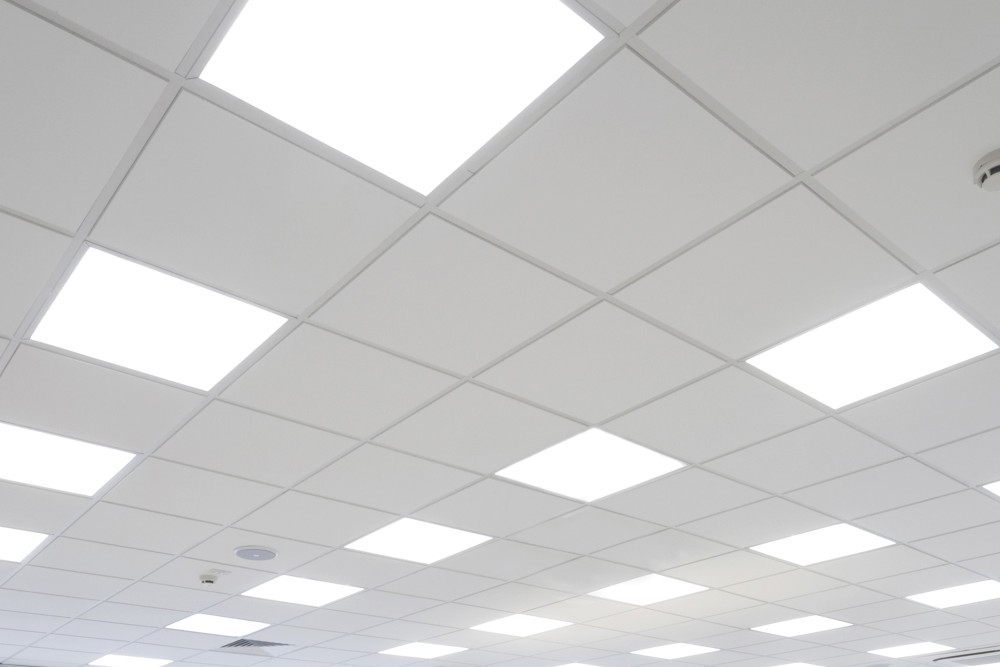

| Luminaire Fixing | Recessed in ceiling grid, surface mounted (with accessory) |
| Panel Equivalent | The Luminaire is Class II |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 3500 |
|---|---|
| Luminous efficacy (lm/W) | 152 |
| Correlated Colour Temperature (CCT) (K) | 5000 |
| Colour Temperature | 5000K - Daylight |
| Colour Temperature Name | Daylight |
| Beam Angle | 110 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Back-lit |
| Lifetime (hours) | 50000 |
| Lighting Method | Back-lit |
| Switching Cycles | 25000 |
Electrical Data
| Power (W) | 23, 25 |
|---|---|
| Power Consumption (W) | 25, 23 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 86.4 |
| Amperage (mA) | 380 |
| Dimming | Non-Dimmable |
| Driver Included | Integrated |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP40 |
| IP Rating (Ingress Protection) | IP44 |
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 40 |
| TP rating | TP(a) |
Packaging
| Barcode | 5055788228264 |
|---|---|
| Package Weight (g) | 3200 |
| Package Length (mm) | 630 |
| Package Width (mm) | 615 |
| Package Depth (mm) | 80 |
| Qty per euro pallet | 38 |
