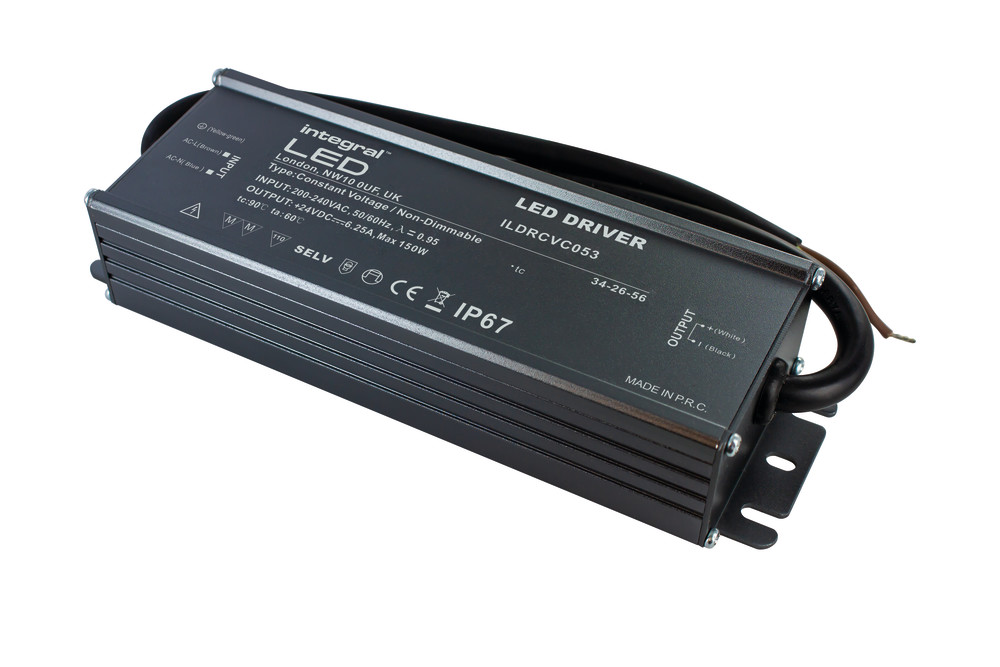

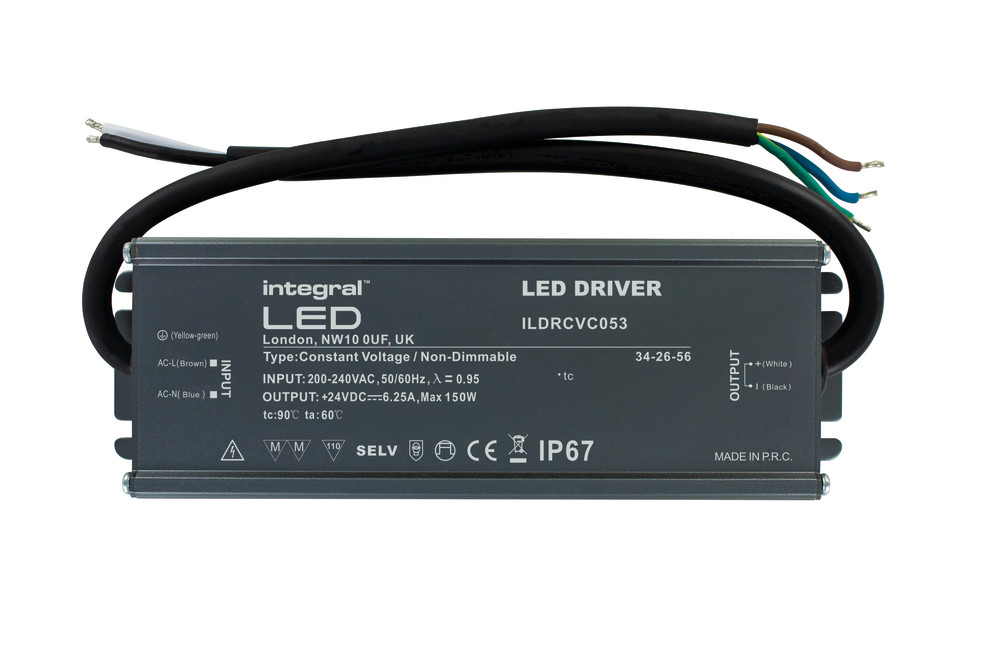

CONSTANT VOLTAGE DRIVER 150W 24VDC IP67 NON-DIMM 200-240V INPUT INTEGRAL
Part Number:
ILDRCVC053
The Integral 150W constant voltage LED driver operates 200-240VAC input range. The LED driver provides 24V constant voltage and up to 6.25A of output current for a 150W maximum output power. Integral LED drivers deliver high reliability and efficiency >= 85% and are fully compatible with 24V constant voltage LED lighting systems. This LED driver features an IP67 rated casing, making it suitable for outdoor installation with IP67 LED strip. Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Input Voltage: 200-240VAC
- Product Feature 2:
- Output Power: 150W
- Product Feature 3:
- Output: 24VDC Constant Voltage
- Product Feature 4:
- Short Circuit / Over Load / Over Heat Protection
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788238782 |
|---|---|
| Quick Order Code | 342656 |
| Category | Drivers |
| Range Name | Non-Dimmable |
| Product Type | Constant Voltage |
| Market Segment | Commercial outdoor , Residential outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 190 |
|---|---|
| Product Depth (mm) | 36.5 |
| Product Width (mm) | 61.5 |
| Product Weight (g) | 660 |
| Material | Metal Shell |
| Placement / Application | Outdoor LED Light |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Power (W) | 150 |
|---|---|
| Power Consumption (W) | 150 |
| Power Factor | 0.95 |
| Voltage (V) | 24 |
| Input Current (A) | 1 |
| Input Voltage (V) | 200-240 |
| Output Current (mA) | 6250 |
| Dimming | Non-Dimmable |
| Protection Function | Short Circuit Protection, Overload Protection, Overheat Protection |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788238782 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 720 |
| Package Length (mm) | 235 |
| Package Width (mm) | 95 |
| Package Depth (mm) | 50 |
| Outer Carton Barcode | 5055788239048 |
| Qty per Outer Carton | 15 |
| Outer Carton Length (mm) | 285 |
| Outer Carton Width (mm) | 235 |
| Outer Carton Depth (mm) | 255 |
