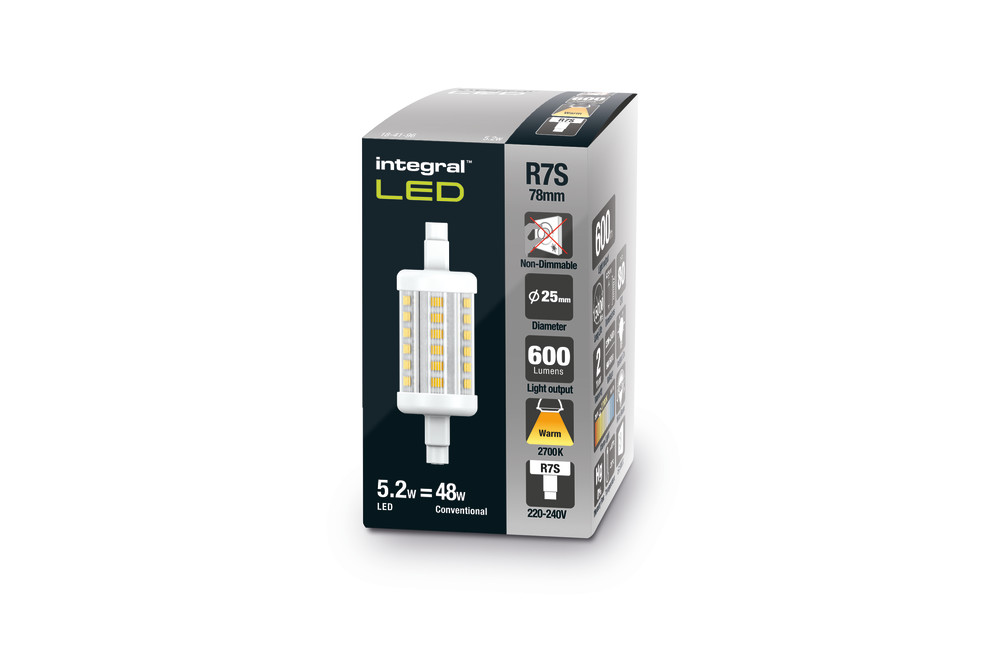

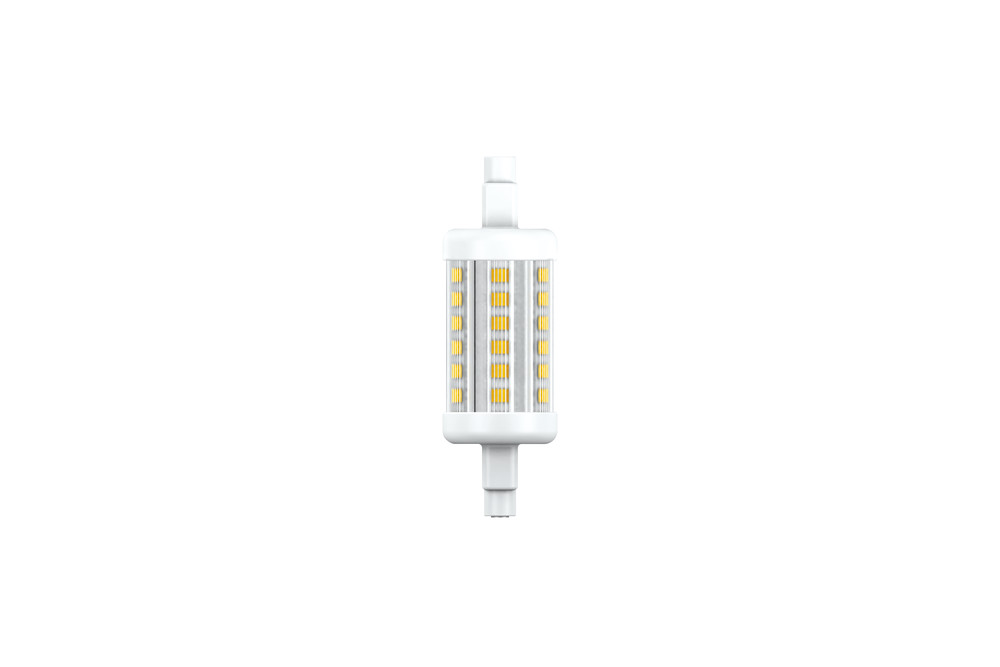

R7S BULB 78MM 600LM 5.2W 2700K NON-DIMM 360 BEAM CLEAR INTEGRAL
Part Number:
ILR7SN001
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Integral LED R7S lamps are ideal for commercial and residential outdoor use in floodlights and in interior uplighter and downlighter wall fittings. Integral LED R7S lamps are designed to retrofit easily into existing R7S halogen lamp fittings.
- Product Feature 1:
- Warm Light
- Product Feature 2:
- 600 Lumens
- Product Feature 3:
- Non-Dimmable
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 184196 |
|---|---|
| Barcode | 5055788224747 |
| Category | Lamps |
| Range Name | R7S |
| Product Type | R7S |
| Market Segment | Commercial outdoor (with appropriate outdoor fitting), Residential outdoor (with appropriate outdoor fitting) |
| Warranty (Years) | 2 |
Physical Data
| Product Length (mm) | 78 |
|---|---|
| Product Width (mm) | 25 |
| Product Weight (g) | 23 |
| Material | Polycarbonate |
| Base Term | R7S |
| Bulb Base | R7S |
| Construction | Polycarbonate |
| Globe Finish | Clear |
| Bulb Fixing | Uplighters, Floodlights |
| Bulb or Luminaire Shape | Cylindrical |
| Placement / Application | Outdoor (with appropriate outdoor fitting), General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILR7SN001_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 600 |
| Luminous efficacy (lm/W) | 115 |
| Correlated Colour Temperature (CCT) (K) | 2700 |
| Colour Temperature | 2700K - Warm |
| Colour Temperature Name | Warm |
| Beam Angle | 360 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 15000 |
| Switching Cycles | 50000 |
Electrical Data
| Power (W) | 5.2 |
|---|---|
| Power Consumption (W) | 5.2 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 48 |
| Amperage (mA) | 46 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN 61547:2009 |
Environmental
| EN | EN 61547:2009 |
|---|---|
| CE RoHS | Yes |
| Previous Energy Rating | A++ |
| New Energy Rating | E |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Length (mm) | 86 |
|---|---|
| Package Width (mm) | 48 |
| Package Depth (mm) | 48 |
| Qty per euro pallet | 3600 |
