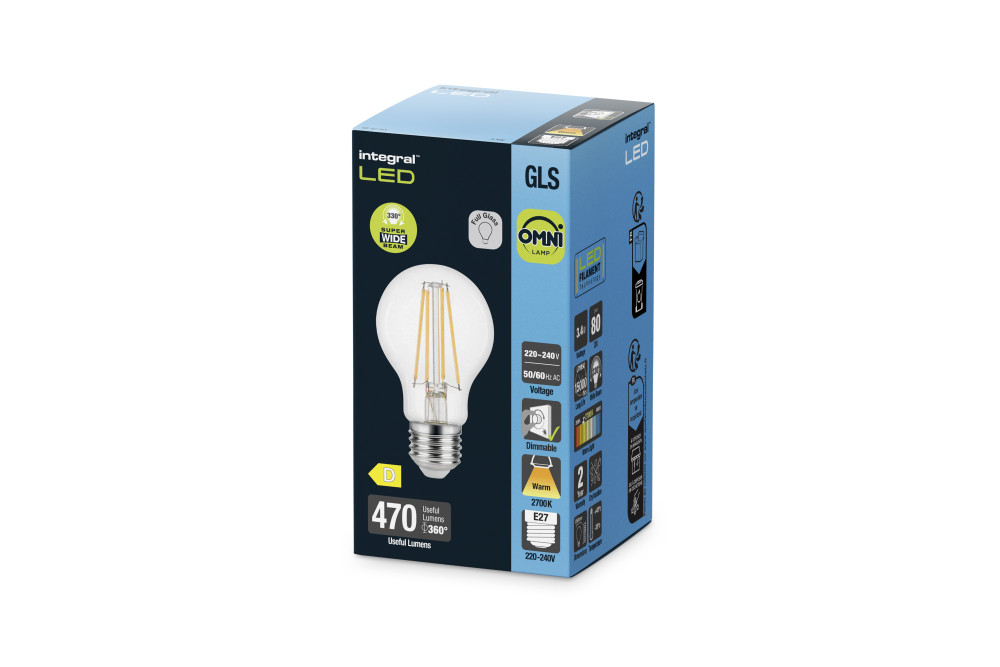

OMNI FILAMENT GLS BULB E27 470LM 4.5W 2700K DIMMABLE 300 BEAM CLEAR FULL GLASS INTEGRAL

Part Number:

ILGLSE27DC052

Integral Filament Omni GLS Lamps utilise Filament LED technology and a full-glass body to create a decorative look and wide beam angle that looks fantastic in ceiling pendants and fittings where the lamp is exposed.

These retrofit lamps are highly efficient and are an ideal replacement for traditional tungsten filament bulbs.

Product Feature 8:
Product Feature 1:
Filament technology with super-wide beam angle
Product Feature 2:
Warm
Product Feature 3:
470 Lumens
Product Feature 4:
Dimmable
Product Feature 5:
A++ Energy rating
Product Feature 6:
Product Feature 7:
Availability:
0

More stock due in on 21/03/2022

Application
Mounting Type (Emergency)
Barcode 5055788222439
Category Lamps
Range Name Omni
Type
Product Type GLS
Product Body Finish
Market Segment Commercial indoor, Residential indoor
Finish
Features
Fixed/Tiltable
Warranty (Years) 2
Strip Cut Points
Emergency Option
Size (in ft)
PIR
Emergency Category
Product Length (mm) 104
Product Depth (mm)
Product Width (mm) 60
Product Weight (g) 32
Diameter (mm) 60
Optic
Material Aluminium, Glass
Overall diameter (mm)
Base Term Edison screw
Bulb Base E27
Construction Glass shell, Filament strip, Aluminium base
Cut Out Diameter (mm)
Cut Out Length (mm)
Strip Cut Points (mm)
Cut Out Width (mm)
Globe Finish Clear
Globe Type GLS
Handheld or Wall Mount
Bulb Fixing Pendant, Wall, lamp stand, table lamp
Bulb or Luminaire Shape Round
Luminaire Fixing
Max Run Length (m)
Max Strip Width (mm)
Mounting Type
Panel Equivalent
Placement / Application Indoor, Outdoor, General Lighting
Spot Type
Strip length (M)
Strip Width (mm)
Typical Mounting Height
Wiring / Mounting Options
Zones
Profile Height (in mm)
Profile Width
Length (m)
Beam Type
Dimming Range %
Lumen output
Energy Efficiency Label (Image) ILGLSE27DC052_EU_label
Luminous Flux in Lumens (lm) 470
Luminous efficacy (lm/W) 104
Lumens per meter (lm/m)
Maximum Luminous Intensity at 65
Peak Intensity (Cd)
Correlated Colour Temperature (CCT) (K) 2700
Colour Temperature 2700K - Warm
Colour Temperature Name Warm
Beam Angle 300
Colour Rendering Index (CRI) 80
Colour Type
Compatible Dimmers
Fire Rating (mins)
Frequency Range (Hz) 50
Instant on (Less than 1 second) Yes
Integrated Light Source
LED Size (mm)
LED Type Filament chip
LEDs per meter
Lifetime (hours) 15000
Lighting Method
Lumens in Emergency mode (lm)
Sensor / Overide
Switching Cycles 7500
Unified Glare Rating (UGR)
Useful Lumens (lm)
Power (W) 4.5
Power Consumption (w) 4.5
Power Consumption per meter (W/m)
Power Factor 0.8
Voltage (V)
Wattage equivalent (W) 40
Wattage Saving (W)
Amperage (mA) 22
Input Current (A)
Input Voltage (V)
Output Current (mA)
Output Voltage (V)
Battery Configuration
Dimming Dimmable
Driver IC Manufacturer
Driver Included Yes
Electric Current AC
Emergency Battery Life (years)
Emergency Lumens (lm)
Emergency Type
Insulation Guard
Protection Function
True Wattage Eq (W)
EN EN-62560
LVD Certified Yes
EN EN-62560
LVD Certified Yes
CE RoHS Yes
Energy Rating A++
EU Luminaire
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection)
IP Rating (Back/Recessed side)
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Max Strip IP Rating
Maximum Operating Temperature (°C) 45
Metal Halide Equivalent
Profile IP Rating
TP rating
Package Weight (g) 82
Package Length (mm) 64
Package Width (mm) 64
Package Depth (mm) 115
Qty per euro pallet 1350
Installation Guide
LDT File
IES File
Polar Curve
PDF strip image

Product Specification Sheet
