STRIP AND DRIVER KIT IP67 5M 4000K 12V 6W/M 400LM/M 60LED/M 10MM WIDTH 115 BEAM BOX PACK WITH 12V IP20 40W DRIVER INTEGRAL
Part Number:
ILSTWHIC126W

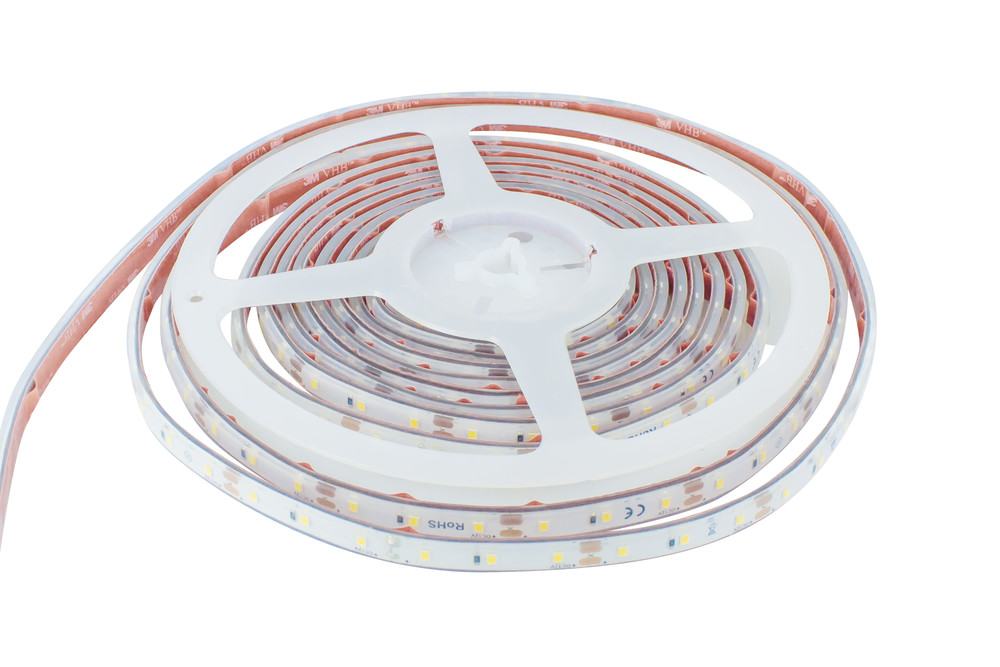

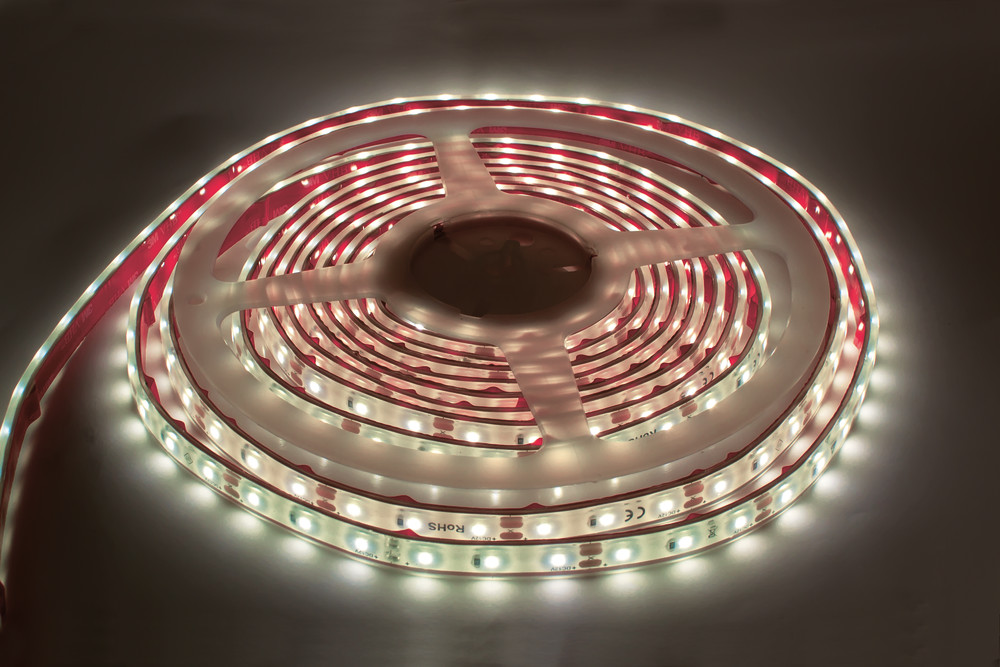

Integral LED 5M Strip and Driver Kit comprises of our 5 meter IP67 cool white LED strip and 40W 12V constant voltage LED driver.
Integral LED cool white LED strip has 60 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP67 rated and is suitable for indoor and outdoor applications. Each 5m reel is supplied with an easy-to-follow installation guide and 20x mounting clips. Additional accessories are available, to suit specific installation requirements.
The kit also contains Integral LED 40W 12V constant voltage LED driver operates 200-240VAC input range. The LED driver features an ultra slim, IP20 rated casing that helps to provide an easy installation and smart finish, ideal for indoor use. When installing outdoors, please make sure the driver is used with appropriate outdoor fitting.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 60 LEDs per metre
- Product Feature 3:
- LED size 28:35
- Product Feature 4:
- 40W 12V (IP20) driver included
- Availability:
-
1
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788246930 |
|---|---|
| Quick Order Code | 364823 |
| Category | Strips |
| Range Name | Strip And Driver Kit |
| Product Type | White strip |
| Market Segment | Decorative indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 10 |
|---|---|
| Product Weight (g) | 596 |
| Material | Strip: PCB / Silicon, Driver: Plastic Shell |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 50 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 8 |
Light Data
| Lumens per meter (lm/m) | 400 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | White |
| Frequency Range (Hz) | 50 |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 60 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 6 |
|---|---|
| Voltage (V) | 12 |
| Voltage Range (v) | 200-240 |
| Watts per metre | 3.1W - 6w |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Protection Function | Short Circuit, overload and overheating protection on driver |
| LVD Certified | Yes |
Environmental
| LVD Certified | Yes |
|---|---|
| CE RoHS | Yes |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788246930 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 855 |
| Package Length (mm) | 355 |
| Package Width (mm) | 220 |
| Package Depth (mm) | 40 |
