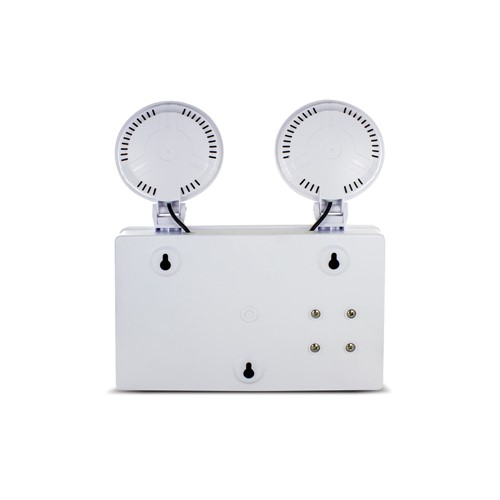

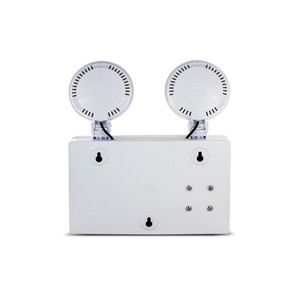

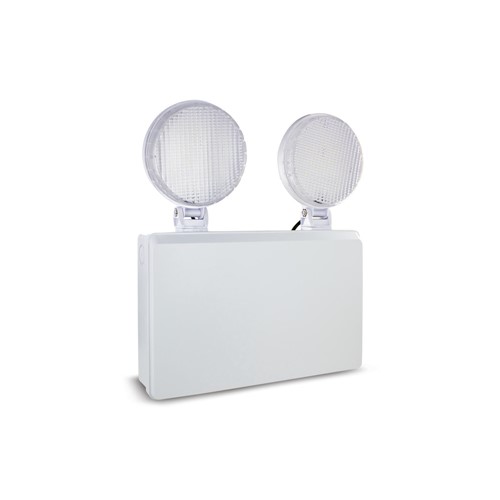

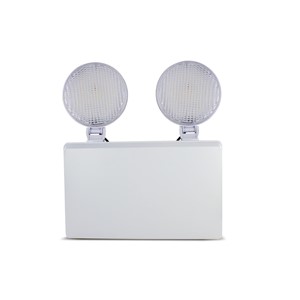

TWIN SPOT EMERGENCY LUMINAIRE 4W 400LM NON MAINTAINED IP20 6500K SELF TEST INTEGRAL LED
Part Number:
ILEMTS033
Our new comprehensive Twin Spot Emergency Floodlights provide for both indoor offices and retail use with an attractive IP20 model and a more sturdy IP65 option for factories and warehouses.
- Product Feature 1:
- Attractive design
- Product Feature 2:
- IP20
- Product Feature 3:
- Directional and adjustable spotlights
- Product Feature 4:
- 3 Year warranty
- Product Feature 5:
- Easy Installation
- Product Feature 6:
- 3 Hour Emergency Operation
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 259636 |
|---|---|
| Barcode | 5055788253907 |
| Category | Emergency |
| Range Name | Twin Spot |
| Product Body Finish | White |
| Market Segment | Commercial indoor |
| Finish | White |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 287 |
|---|---|
| Product Depth (mm) | 55 |
| Product Width (mm) | 255 |
| Product Weight (g) | 800 |
| Optic | Clear Refractor |
| Material | Polycarbonate |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall |
| Placement / Application | Indoor, Emergency Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 400 |
|---|---|
| Luminous efficacy (lm/W) | 89 |
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature | 6500K - Cool Daylight |
| Colour Temperature Name | Cool Daylight |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | Single |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 35000 |
| Lighting Method | Back-lit |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 400 |
Electrical Data
| Power (W) | 4.5 |
|---|---|
| Power Consumption (W) | 4.5 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | 3.2V 1500/3000mAH LIFePO4, 24 hours to charge |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 2 |
| Emergency Lumens (lm) | 400 |
| Protection Function | Short circuit, overload and over heating |
| EN | EN-60608 |
| LVD Certified | Yes |
Environmental
| EN | EN-60608 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 850 |
|---|---|
| Package Length (mm) | 400 |
| Package Width (mm) | 320 |
| Package Depth (mm) | 60 |
Safety Guide
