PROFILE ALUMINIUM NARROW RECESSED 1M FROSTED DIFFUSER INCLUDE 2 ENDCAPS
Part Number:
ILPFR175
This recessed mounted profile is designed to be plastered into interior walls and ceilings. It is ideal for lighting applications including illuminating kitchens, bathrooms, toilets, changing rooms and similar rooms which have ceramic tiling.
The profile can also be used on plastered walls and ceilings to create linear lighting effects. The L shape trim of the profile makes it easy to fit the profile into plaster and concrete materials, with a seamless finish.
- Product Feature 1:
- Frosted diffuser for even light
- Product Feature 2:
- Suitable for max 10mm width IP65/IP67 strip
- Product Feature 3:
- Include 2 endcaps (Dual purpose with/without cable entry)
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 874711 |
|---|---|
| Barcode | 5055788255826 |
| Category | Strips |
| Range Name | Plaster-in |
| Product Type | Aluminium Profiles |
| Warranty (Years) | 1 |

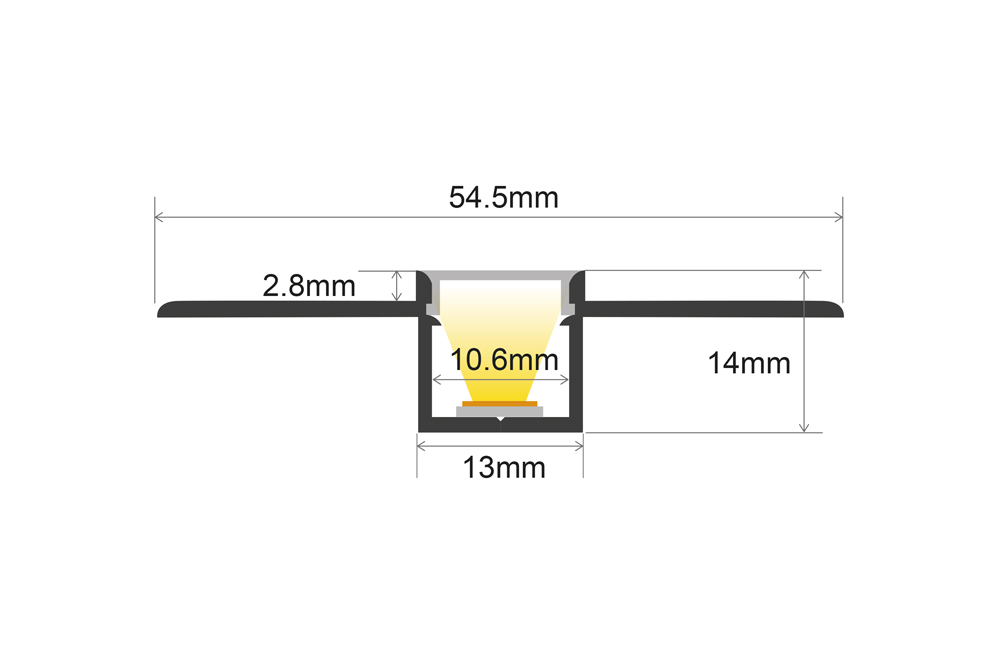

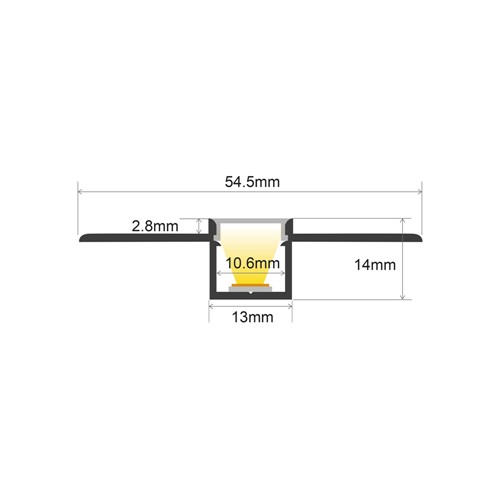

Physical Data
| Product Weight (g) | 280 |
|---|---|
| Max Strip Width (mm) | 10 |
| Mounting Type | Recessed |
| Profile Height (in mm) | 14 |
| Profile Width | 54.5 |
| Length (m) | 1 |
Light Data
Electrical Data
Environmental
| Max Strip IP Rating | IP67 |
|---|
Packaging
| Package Weight (g) | 2000 |
|---|---|
| Package Length (mm) | 1080 |
| Package Width (mm) | 170 |
| Package Depth (mm) | 130 |
