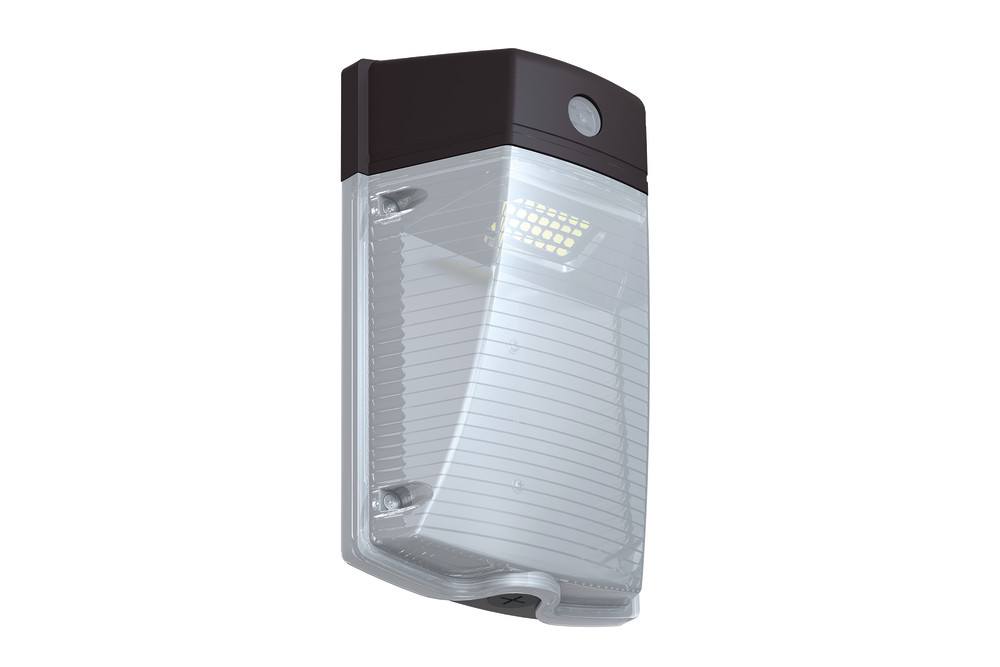

OUTDOOR WALL PACK COMPACT IP65 3150LM 30W 4000K 115 BEAM BLACK INTEGRAL

Part Number:

ILWPA008

Integral Compact Tough Wall Pack Lights are ideal for perimeter lighting as well as pedestrian and vehicle access areas in commercial and industrial environments. The IP65 weatherproof and IK08 impact-resistant cast aluminium body makes it perfectly suitable for outdoor installation.

Product Feature 8:
Product Feature 1:
Stylish and contemporary design
Product Feature 2:
Hard-wearing and weatherproof
Product Feature 3:
Cast-aluminium body
Product Feature 4:
Product Feature 5:
Product Feature 6:
Product Feature 7:
Availability:
0

More stock due in on 16/03/2022

Suggested products

Application
Mounting Type (Emergency)
Barcode 5055788247173
Category Luminaires
Range Name Compact Tough
Type
Product Type Wall Packs
Product Body Finish Black
Market Segment Outdoor
Finish Black
Features
Fixed/Tiltable
Warranty (Years) 3
Strip Cut Points
Emergency Option No
Size (in ft)
PIR
Emergency Category
Product Length (mm) 241.7
Product Depth (mm) 76
Product Width (mm) 150
Product Weight (g) 115
Diameter (mm)
Optic Polycarbonate diffuser
Material ADC12 Aluminium
Overall diameter (mm)
Base Term
Bulb Base
Construction Aluminium heat-sink, PC injection moulded driver case
Cut Out Diameter (mm)
Cut Out Length (mm)
Strip Cut Points (mm)
Cut Out Width (mm)
Globe Finish
Globe Type
Handheld or Wall Mount
Bulb Fixing
Bulb or Luminaire Shape Rectangle
Luminaire Fixing Wall
Max Run Length (m)
Max Strip Width (mm)
Mounting Type Rear Cable Entry
Panel Equivalent
Placement / Application Outdoor
Spot Type
Strip length (M)
Strip Width (mm)
Typical Mounting Height
Wiring / Mounting Options
Zones
Profile Height (in mm)
Profile Width
Length (m)
Beam Type
Dimming Range %
Lumen output
Energy Efficiency Label (Image) ILWPA008_EU_label
Luminous Flux in Lumens (lm) 3150
Luminous efficacy (lm/W) 105
Lumens per meter (lm/m)
Maximum Luminous Intensity at 65
Peak Intensity (Cd)
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature
Colour Temperature Name Cool White
Beam Angle 115
Colour Rendering Index (CRI) 80
Colour Type
Compatible Dimmers
Fire Rating (mins)
Frequency Range (Hz) 50/60
Instant on (Less than 1 second)
Integrated Light Source
LED Size (mm)
LED Type
LEDs per meter
Lifetime (hours) 50000
Lighting Method
Lumens in Emergency mode (lm)
Sensor / Overide
Switching Cycles 100000
Unified Glare Rating (UGR)
Useful Lumens (lm) 3150
Power (W)
Power Consumption (w) 30
Power Consumption per meter (W/m)
Power Factor 0.95
Voltage (V)
Wattage equivalent (W)
Wattage Saving (W)
Amperage (mA)
Input Current (A)
Input Voltage (V) 220-240
Output Current (mA)
Output Voltage (V)
Battery Configuration
Dimming Non-Dimmable
Driver IC Manufacturer
Driver Included
Electric Current AC
Emergency Battery Life (years)
Emergency Lumens (lm)
Emergency Type
Insulation Guard
Protection Function
True Wattage Eq (W)
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Energy Rating
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Back/Recessed side)
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) 0
Max Strip IP Rating
Maximum Operating Temperature (°C) 45
Metal Halide Equivalent
Profile IP Rating
TP rating
Package Weight (g)
Package Length (mm)
Package Width (mm)
Package Depth (mm)
Qty per euro pallet
Installation Guide
LDT File
IES File
Polar Curve
PDF strip image

Product Specification Sheet
