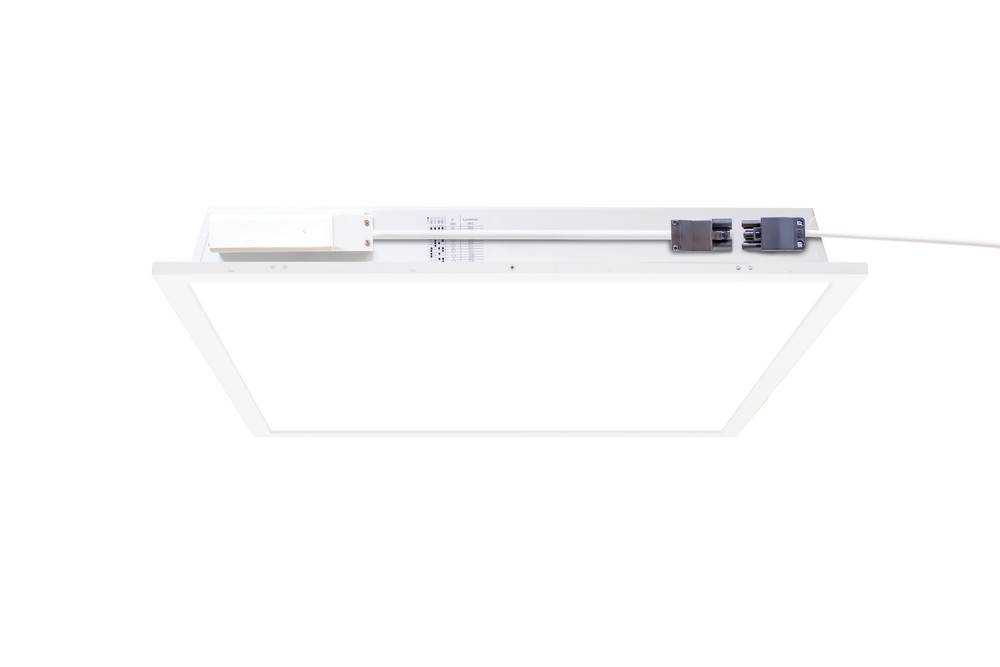

ADJUSTABLE WATTAGE PANEL 600X600 1600-5600LM 9.5-32W 4000K TPb diffuser NON-DIMM 175LM/W BACKLIT

Part Number:

ILP6060B042

The Wattage of the Variable High Performance+ panel can be adjusted from 9.5 to 32W in 1.5W steps to give a light output range from 1600 to 5600lm in cool white. Its market leading level of efficacy (175lm/W) offers savings in running cost against traditional 72W fluorescent fitting as well as many other LED panel.

Its lightweight steel and PC design, with integrated non-flicker driver, means installation is simple and maintenance is minimal. With a wide range of lumen outputs It is an ideal solution for many applications: office, meeting rooms, corridors, schools/universities and retail premises.

Product Feature 8:
Product Feature 1:
Cool White
Product Feature 2:
1600-5600 Lumens
Product Feature 3:
Market-leading 175lm/W
Product Feature 4:
TP(b) rated Polycarbonate diffuser
Product Feature 5:
5 Year Warranty
Product Feature 6:
Product Feature 7:

For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information

Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Application
Mounting Type (Emergency)
Barcode 5055788253099
Category Panels
Range Name High Performance+ Variable Wattage
Type
Product Type 600 x 600
Product Body Finish Matt white
Market Segment Commercial indoor
Finish
Features
Fixed/Tiltable
Warranty (Years) 5
Strip Cut Points
Emergency Option Optional Conversion Kit
Size (in ft)
PIR
Emergency Category Panels
Product Length (mm)
Product Depth (mm) 63
Product Width (mm) 596
Product Weight (g) 3500
Diameter (mm)
Optic TP(b) rated Polycarbonate diffuser
Material Steel, Polycarbonate
Overall diameter (mm)
Base Term
Bulb Base
Construction Folded Mild Steel and Polycarbonate diffuser
Cut Out Diameter (mm)
Cut Out Length (mm)
Strip Cut Points (mm)
Cut Out Width (mm)
Globe Finish
Globe Type
Handheld or Wall Mount
Bulb Fixing
Bulb or Luminaire Shape
Luminaire Fixing Recessed in ceiling grid, surface mounted (additional surface mounting kit required)
Max Run Length (m)
Max Strip Width (mm)
Mounting Type
Panel Equivalent The Luminaire is Class II
Placement / Application Indoor, General Lighting
Spot Type
Strip length (M)
Strip Width (mm)
Typical Mounting Height
Wiring / Mounting Options
Zones
Profile Height (in mm)
Profile Width
Length (m)
Beam Type
Dimming Range %
Lumen output
Luminous Flux in Lumens (lm) 1600-5600
Luminous efficacy (lm/W) 168-179
Lumens per meter (lm/m)
Maximum Luminous Intensity at 65
Peak Intensity (Cd)
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 110
Colour Rendering Index (CRI) 80
Colour Type
Compatible Dimmers
Fire Rating (mins)
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
Integrated Light Source
LED Size (mm) 2835
LED Type Back-lit
LEDs per meter
Lifetime (hours) 50000
Lighting Method Back-lit
Lumens in Emergency mode (lm)
Sensor / Overide
Switching Cycles 25000
Unified Glare Rating (UGR)
Useful Lumens (lm)
Power (W)
Power Consumption (w) 9.5 to 32
Power Consumption per meter (W/m)
Power Factor 0.9
Voltage (V)
Wattage equivalent (W) 86.4
Wattage Saving (W)
Amperage (mA) 200
Input Current (A)
Input Voltage (V)
Output Current (mA)
Output Voltage (V)
Battery Configuration
Dimming Non-Dimmable
Driver IC Manufacturer
Driver Included Integrated
Electric Current AC
Emergency Battery Life (years)
Emergency Lumens (lm)
Emergency Type
Insulation Guard
Protection Function
True Wattage Eq (W)
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Energy Rating
EU Luminaire
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection)
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -10
Max Strip IP Rating
Maximum Operating Temperature (°C) 40
Metal Halide Equivalent
Profile IP Rating
TP rating TP(b)
Package Weight (g) 4000
Package Length (mm) 630
Package Width (mm) 615
Package Depth (mm) 80
Qty per euro pallet
Installation Guide
LDT File
IES File
Polar Curve
PDF strip image

Product Specification Sheet
