SLIM LED T5 & UNDER CABINET BATTEN 3CCT 5FT 22W 2640LM 3000/4000/6500K 135 BEAM 120LM/W 1450MM LINKABLE NON-DIMM INTEGRAL
Part Number:
ILCLB025
Slim and discreet, the Integral LED Under Cabinet Batten is ideal for adding light under units and cabinets, and above vanities without spoiling the look and feel of the room.

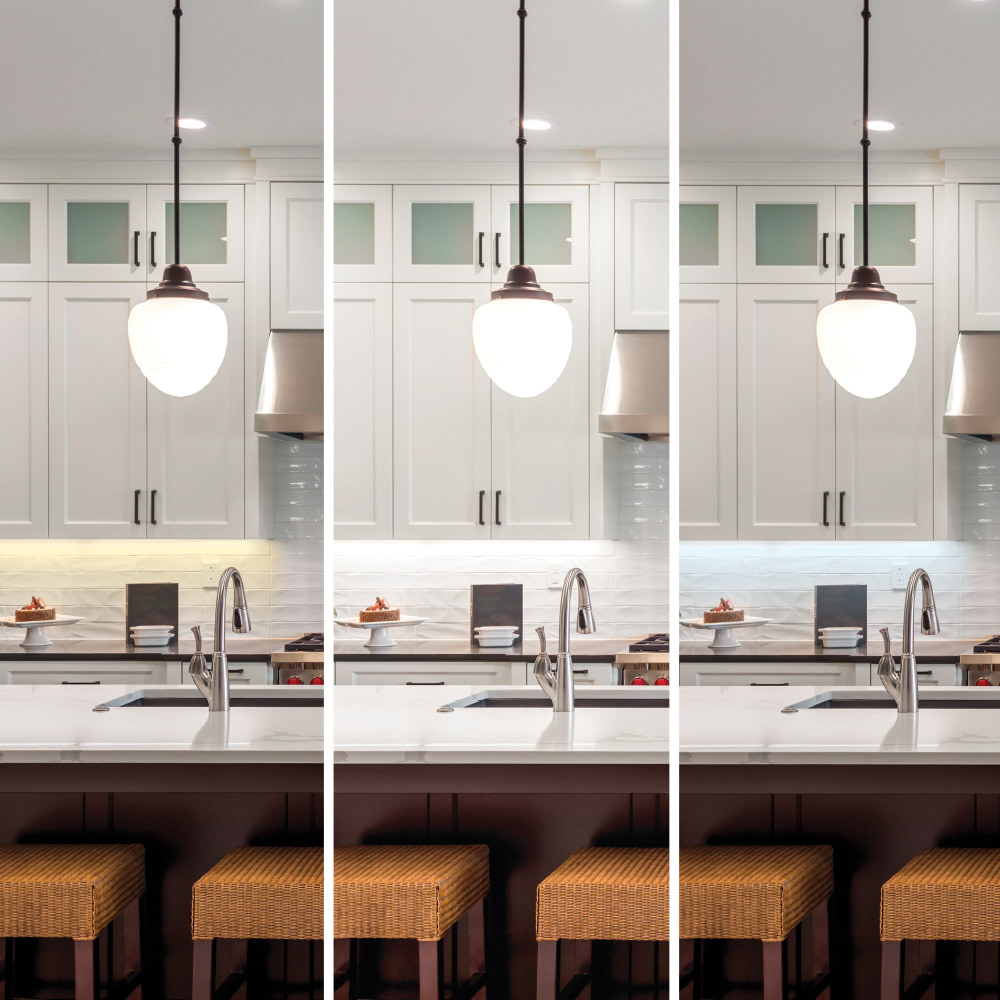

With an impressive efficacy of 120lm/W, these battens offer 3 colour temperature options selectable via the on-board switch (3000K, 4000K and 6500K), allowing CCT to be adjusted both during and after installation helping create the right ambiance whatever the space.
Available in sizes 1ft to 5ft, the Under Cabinet Batten can be quickly and easily linked to create longer runs of luminaires without the need for more wiring. Made from durable polycarbonate, the batten is lightweight and easy to install whilst being able to withstand the rigours of daily life in a residential setting.
- Product Feature 1:
- Easily switch between Warm White, Cool White, Cool Daylight
- Product Feature 2:
- Linkable for easy installation
- Product Feature 3:
- 2200lm
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788297208 |
|---|---|
| Quick Order Code | 925176 |
| Product Type | Battens |
| Category | Luminaires |
| Range Name | Colour Switching |
| Finish | Matt White |
| Product Body Finish | Matt white |
| Features | CCT Switchable |
| Type | Single |
| Market Segment | Commercial & Industrial |
| Placement / Application | Indoor |
| Warranty (Years) | 3 |
Physical Data
| Bulb or Luminaire Shape | Linear |
|---|---|
| Product Length (mm) | 1449 |
| Product Width (mm) | 22 |
| Product Depth (mm) | 30 |
| Product Weight (g) | 389 |
| Material | Polycarbonate |
| Construction | PC extrusion |
| Luminaire Fixing | Ceiling mounted |
| Emergency Option | No |
| Size (in ft) | 5ft |
| Linkable | Yes |
| Optic | Polycarbonate diffuser |
| Mounting Type | Side cable entry |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 2640 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 / 6500 (CCT Switchable) |
| Colour Temperature | 3000/4000/6500 - Warm White / Cool White / Cool Daylight |
| Colour Temperature Name | Warm White, Cool White, Cool Daylight |
| Beam Angle | 135 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 2200 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 22 |
|---|---|
| Power Consumption (W) | 22 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| IP Rating (Ingress Protection) | IP20 |
|---|---|
| Lowest Operating Temperature (°C) | -10 |
| Maximum Operating Temperature (°C) | 45 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK03 |
| New Energy Rating | E |
| EU Luminaire | L |
Packaging
| Barcode | 5055788297208 |
|---|---|
| Package Weight (g) | 459 |
| Package Length (mm) | 1510 |
| Package Width (mm) | 50 |
| Package Depth (mm) | 53 |
Safety Guide
ILCLB025-3000K
