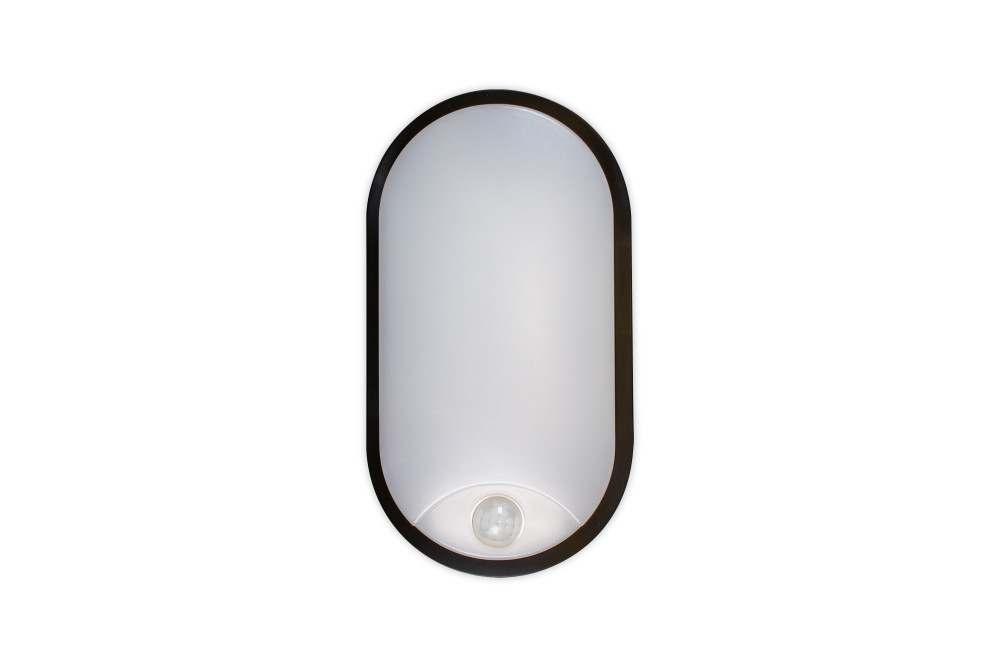

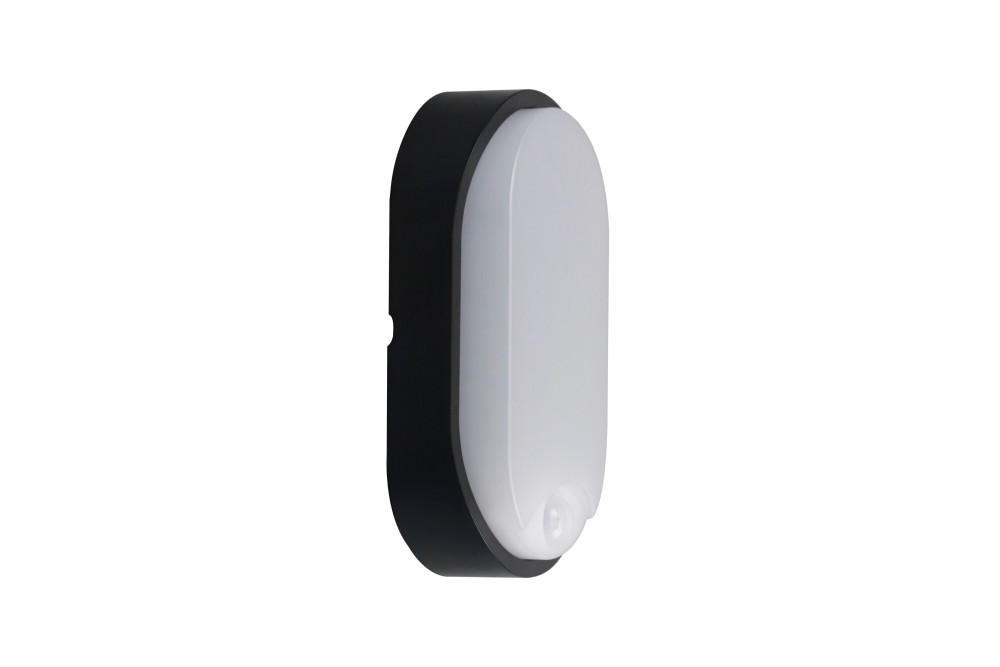

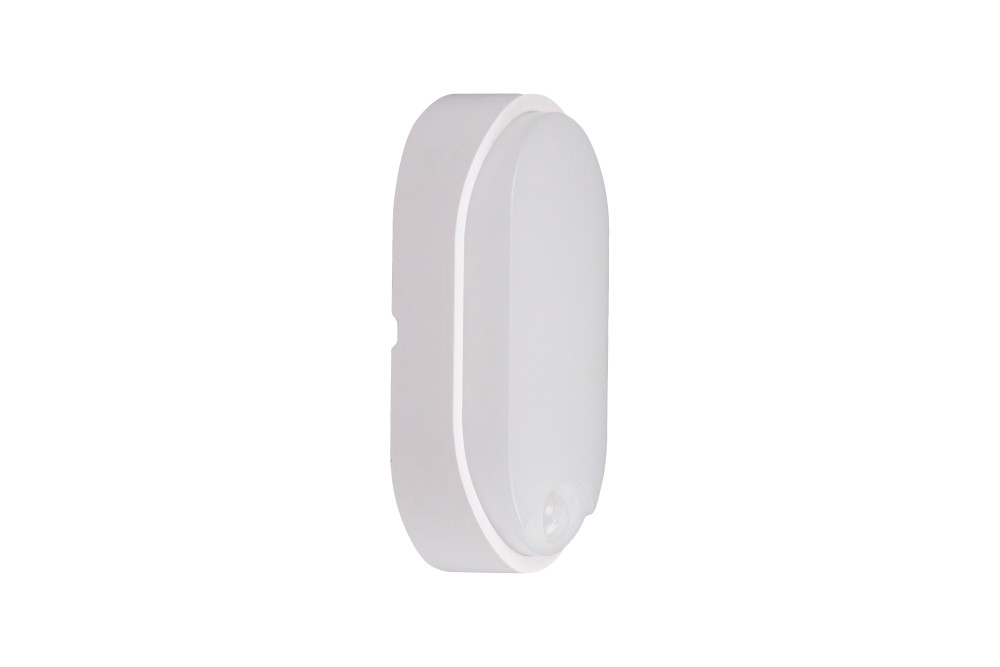

TOUGH SHELL COMPACT OVAL PIR BULKHEAD 213X120MM 10W 1100LM 3000/4000/6000K SWITCHABLE CCT IP65 IK10 110LM/W INCLUDING WHITE AND BLACK BEZELS LED INTEGRAL
Part Number:
ILBHP002
Integral's Tough Shell Compact Oval CIR Bulkhead is a high-performance, durable lighting solution ideal for residential, commercial, or industrial settings. Thanks to its IP65 and IK10 ratings, the bulkhead boasts protection from knocks, spills, and dust, making it perfect for both indoor and outdoor use. Plus, with a light output of 1100 lumens and efficacy of 110lm/W, this bulkhead provides illumination that is both bright and efficient. The adjustable colour setting ensures it is adaptable to any lighting need--from cozy warm white to energising cool white--while the PIR sensor ensures illumination when you need it. Comes with 3 years warranty for maximum peace of mind.
- Product Feature 1:
- 1100 Lumens
- Product Feature 2:
- Highly efficient - 100lm/W
- Product Feature 4:
- Adjustable PIR sensor
- Availability:
-
100+
More stock due in on 02/11/2026
Suggested products
Details
| Barcode | 5055788292326 |
|---|---|
| Quick Order Code | 528702 |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Category | Luminaires |
| Range Name | Tough Shell Compact |
| Product Body Finish | Matt white and black |
| Features | Adjustable PIR Sensor, CCT Switchable |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Warranty (Years) | 3 |
Physical Data
| Bulb or Luminaire Shape | Round |
|---|---|
| Product Length (mm) | 213 |
| Product Width (mm) | 120 |
| Product Depth (mm) | 65 |
| Product Weight (g) | 300 |
| Material | Polycarbonate |
| Construction | Polycarbonate casing and diffuser |
| Luminaire Fixing | Wall Mounted |
| Optic | Polycarbonate |
| Wiring / Mounting Options | Rear cable entry |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 1100 |
|---|---|
| Luminous efficacy (lm/W) | 110 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Sensor / Overide | Yes with sensor |
| Switching Cycles | 25000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 10 |
|---|---|
| Power Consumption (W) | 10 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Lumens (lm) | No |
Environmental
| IP Rating (Ingress Protection) | IP65 |
|---|---|
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| New Energy Rating | D |
Packaging
| Barcode | 5055788292326 |
|---|---|
| Package Weight (g) | 400 |
| Package Length (mm) | 220 |
| Package Width (mm) | 130 |
| Package Depth (mm) | 105 |
| Qty per euro pallet | 350 |
Safety Guide
ILBHP002-3000K
