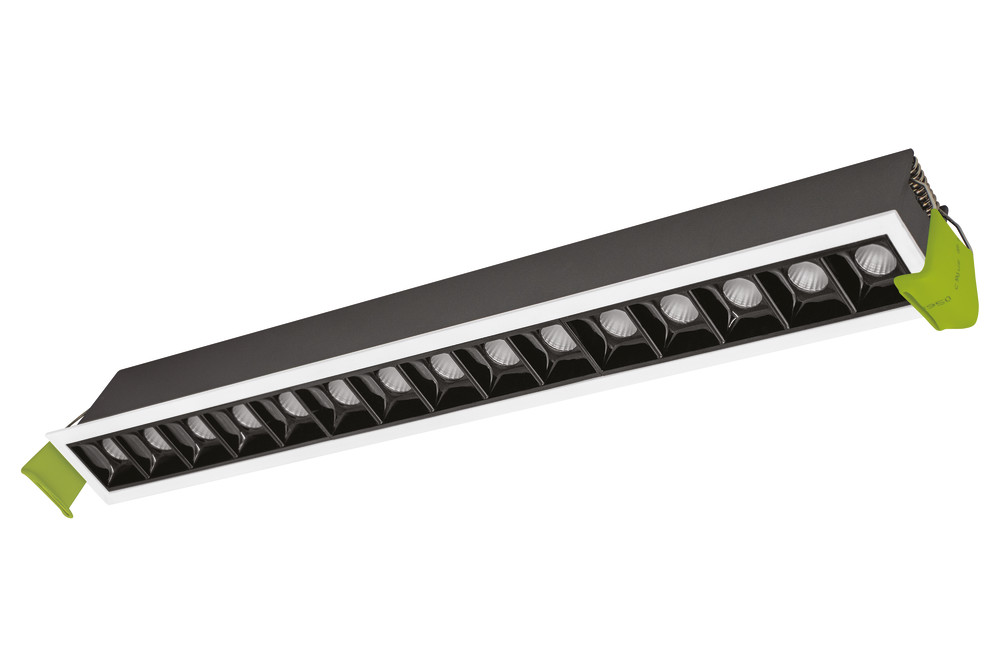

TRACELUX 30W 15 LIGHT 4000K 45MM WIDTH RECESSED LINEAR DOWNLIGHT LED 405MM BY 37MM CUTOUT CRI90 IP20 2500LM 30 DEG BEAM 83LM/W WHITE BEZEL WITHOUT OUTER COVER WITHOUT DRIVER
Part Number:
ILDLTR006
Integral LED’s Tracelux family is a set of linear recessed downlights in various lengths that brings designer lighting at an affordable price, perfect for architectural spaces such as hotel foyers, boardrooms, high-end shops, museums, and galleries.
The lights contain heavily recessed LEDs and can be integrated into a UGR<19 lighting scheme to achieve very low glare, and feature CRI90 to make colours pop. The single die caste aluminium body dissipates heat super efficiently.
Tracelux can be paired with a variety of drivers such as non-dim, and dimmable DALI and 0-10V, as well as working with Integral LED’s emergency pack. To give the lighting designer even further ability to match the light to any installation, Integral LED offer a range of outer cover finishes. See related products for drivers and covers available. Please feel free to approach our sales team with any special customization requests Note: Warranty increased to 5 years on 27/03/2025
The lights contain heavily recessed LEDs and can be integrated into a UGR<19 lighting scheme to achieve very low glare, and feature CRI90 to make colours pop. The single die caste aluminium body dissipates heat super efficiently.
Tracelux can be paired with a variety of drivers such as non-dim, and dimmable DALI and 0-10V, as well as working with Integral LED’s emergency pack. To give the lighting designer even further ability to match the light to any installation, Integral LED offer a range of outer cover finishes. See related products for drivers and covers available. Please feel free to approach our sales team with any special customization requests Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Premium designer look
- Product Feature 2:
- Attractive low glare design
- Product Feature 3:
- High quality aluminium construction
- Product Feature 4:
- CRI90 real colour
- Product Feature 5:
- Interchangeable outer covers
- Product Feature 6:
- Light does not include driver or outer cover
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788274759 |
|---|---|
| Quick Order Code | 712676 |
| Category | Downlights |
| Range Name | Tracelux |
| Product Body Finish | Matt white |
| Market Segment | Accent lighting |
| Fixed/Tiltable | Fixed |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Length (mm) | 413 |
| Product Depth (mm) | 49 |
| Product Width (mm) | 45 |
| Product Weight (g) | 615 |
| Optic | Clear Refractor |
| Construction | Die cast Aluminium heat-sink and body |
| Cut Out Length (mm) | 405 |
| Cut Out Width (mm) | 37 |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
| Spot Type | SMD |
Light Data
| Luminous Flux in Lumens (lm) | 2500 |
|---|---|
| Luminous efficacy (lm/W) | 83 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 30 |
| Colour Rendering Index (CRI) | 90 |
| Integrated Light Source | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 189 |
Electrical Data
| Power Consumption (W) | 30 |
|---|---|
| Amperage (mA) | 600 |
| Input Voltage (V) | 45 |
| Driver Included | No |
| Electric Current | DC |
| EN | Yes |
| LVD Certified | Yes |
Environmental
| EN | Yes |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788274759 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 750 |
| Package Length (mm) | 447 |
| Package Width (mm) | 66 |
| Package Depth (mm) | 72 |
| Outer Carton Barcode | 5055788274889 |
| Qty per Outer Carton | 20 |
| Outer Carton Length (mm) | 455 |
| Outer Carton Width (mm) | 395 |
| Outer Carton Depth (mm) | 325 |
Safety Guide
ILDLTR006-30W-4000K
