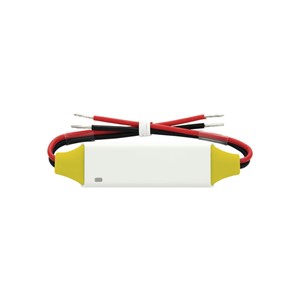

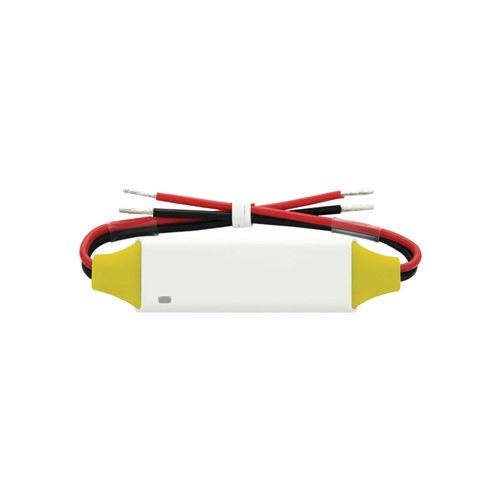

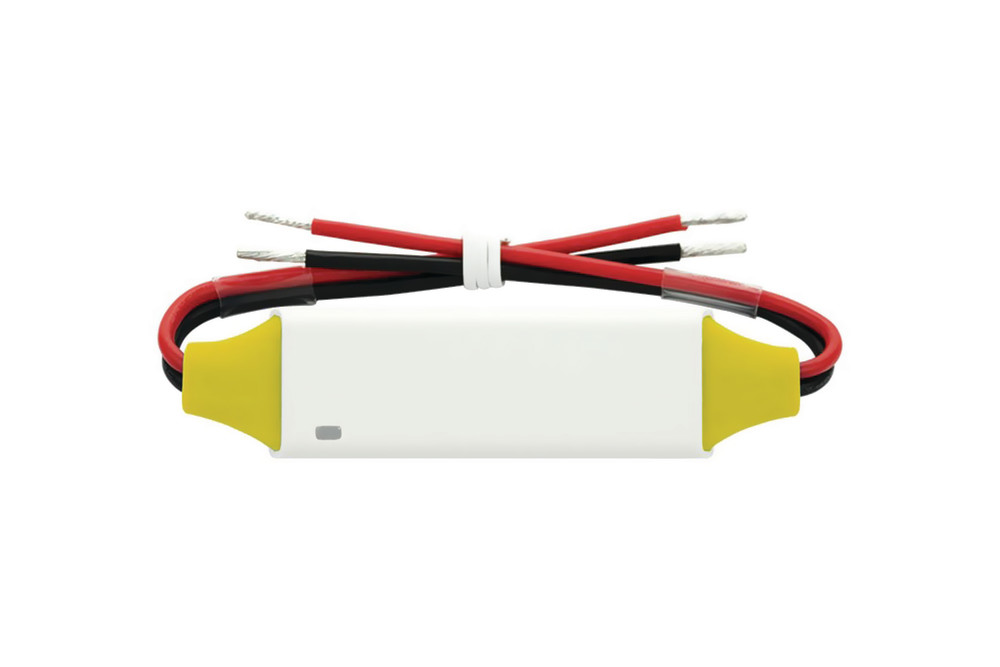

CONSTANT CURRENT DRIVER CASAMBI SECONDARY UNIT 20W 0-700MA IP20 0-48VDC OUTPUT POWER-LINE-DIMMABLE
Part Number:
ILCTCAS-SDF20-S
For areas inaccessible by Bluetooth signal, use our combination of Primary and Secondary application drivers to allow full connectivity.
This Secondary driver requires 48VDC input along with Casambi-to-power-line communication from a Primary unit, and can be used for connecting single colour or CCT-tunable LED panels and downlights into a local hard-wired network operated without the need of direct BLE signal reception.
The constant current adjustment, gradient speed, current trim level, zoning & grouping features are adjustable from the Casambi app and the Primary driver will transfer the commands to connected Secondary drivers via the power cable based on "Power-On" status detection. One Secondary driver is required for each connected luminaire.
- Product Feature 1:
- Suitable for controlling Single colour and Tunable White LED downlights
- Product Feature 2:
- Input: 48VDC + PLC data
- Product Feature 3:
- Output: 0-20W / 0-48VDC
- Product Feature 4:
- Adjustable Constant Current: 0-700mA (via Casambi app)
- Product Feature 5:
- Used in conjunction with ILCTCAS-PD200CB Primary driver
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788287834 |
|---|---|
| Quick Order Code | 725399 |
| Category | Strips |
| Range Name | Casambi |
| Type | Constant Current |
| Product Type | Constant Current |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 87 |
|---|---|
| Product Depth (mm) | 2.5 |
| Product Width (mm) | 21 |
| Product Weight (g) | 23 |
| Material | PCB, Plastic Shell |
| Placement / Application | Indoor, LED Lighting |
Light Data
Electrical Data
| Power (W) | 20 |
|---|---|
| Power Consumption (W) | 20 |
| Input Voltage (V) | 48VDC |
| Output Current (mA) | Adjustable |
| Output Voltage (V) | 0-48VDC |
| Dimming | Casambi |
| Driver Included | No |
| Electric Current | DC |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP63 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788287834 |
|---|---|
| Package Weight (g) | 29 |
| Package Length (mm) | 140 |
| Package Width (mm) | 38 |
| Package Depth (mm) | 16 |
