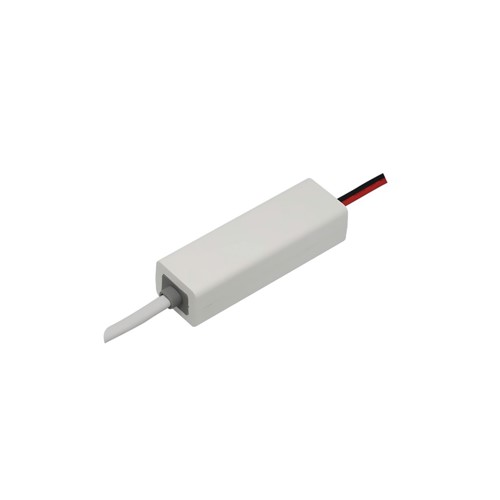

CASAMBI TO DALI SIGNAL CONVERTER IP63 DALI-BUS 16V OUTPUT 90-265V INPUT
Part Number:
ILCTCAS-HCB10
Designed to control standard DALI-interface drivers, this adapter with built-in DALI power supply converts the Casambi signal to compatible single colour or CCT-tunable DALI modules and connects existing lights without the need of replacing them. Simply wire the signal converter output bus into the luminaire DALI bus terminals for instant compatibility and smart link with the Casambi app.
- Product Feature 1:
- Input Voltage: 100-240VAC
- Product Feature 2:
- Signal Output: 50mA / 16VDC
- Product Feature 3:
- Built-in DALI power supply
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788286530 |
|---|---|
| Quick Order Code | 195243 |
| Category | Luminaires |
| Range Name | Casambi |
| Type | Signal Converter |
| Product Type | Signal Converter |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 81 |
|---|---|
| Product Depth (mm) | 20 |
| Product Width (mm) | 26 |
| Product Weight (g) | 45 |
| Material | PCB, Plastic Shell |
| Placement / Application | Indoor, LED Lighting |
Light Data
| Frequency Range (Hz) | 50/60 |
|---|
Electrical Data
| Input Voltage (V) | 100-240VAC |
|---|---|
| Electric Current | AC |
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
| LVD Certified | Yes |
Environmental
| EN | EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Barcode | 5055788286530 |
|---|---|
| Package Weight (g) | 54 |
| Package Length (mm) | 140 |
| Package Width (mm) | 38 |
| Package Depth (mm) | 16 |
