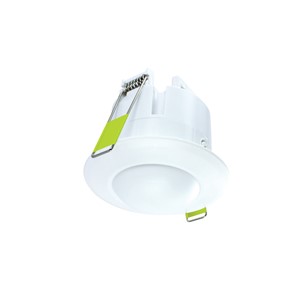

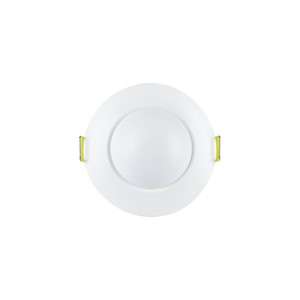

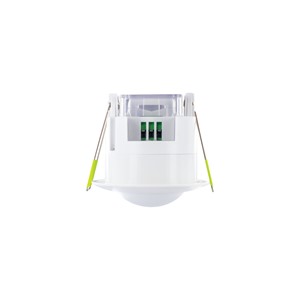

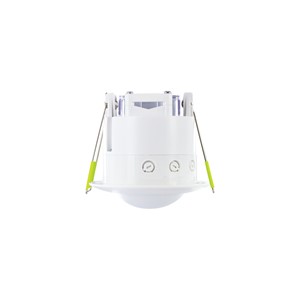

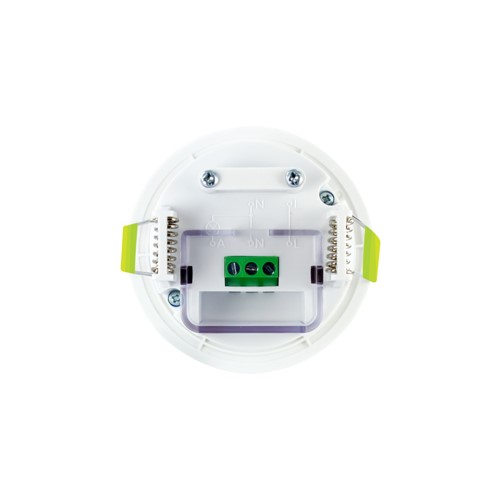

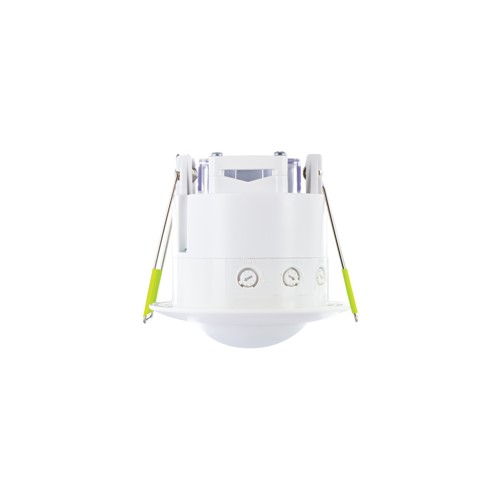

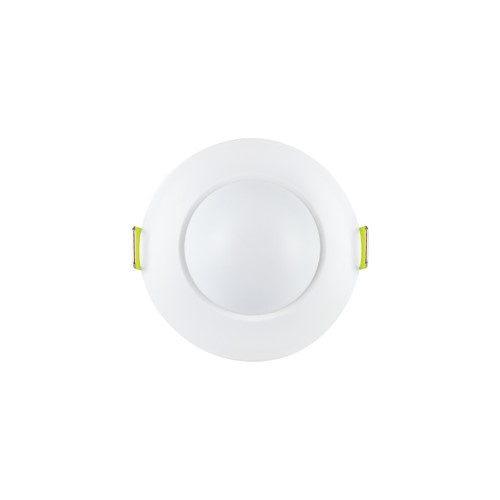

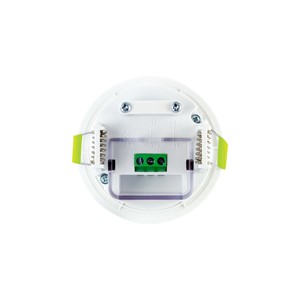

MICROWAVE SENSOR RECESS MOUNT 62MM CUTOUT 360DEG SINGLE DETECTOR 10M RANGE 5.8GHZ IP20 WHITE 110/240VAC INPUT 1200W MAX
Part Number:
ILSENMW003
Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Recess mount: Ceiling
- Product Feature 2:
- Daylight threshold: <10LUX, <25LUX, <250LUX, <500LUX, 24H
- Availability:
-
35
More stock due in on 15/12/2025
Suggested products
Details
| Barcode | 5055788288374 |
|---|---|
| Quick Order Code | 558028 |
| Category | Sensors |
| Range Name | Sensors |
| Product Type | Sensors |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | Matt White |
| Features | Microwave Sensor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 80 |
|---|---|
| Product Depth (mm) | 76 |
| Product Width (mm) | 80 |
| Product Weight (g) | 90 |
| Cut Out Diameter (mm) | 61.5 |
| Mounting Type | Recess mount |
Light Data
Electrical Data
| Input Voltage (V) | 220-240 |
|---|---|
| Output Voltage (V) | 220-240 |
| Electric Current | AC |
Environmental
| IP Rating (Ingress Protection) | IP20 |
|---|
Packaging
| Barcode | 5055788288374 |
|---|
