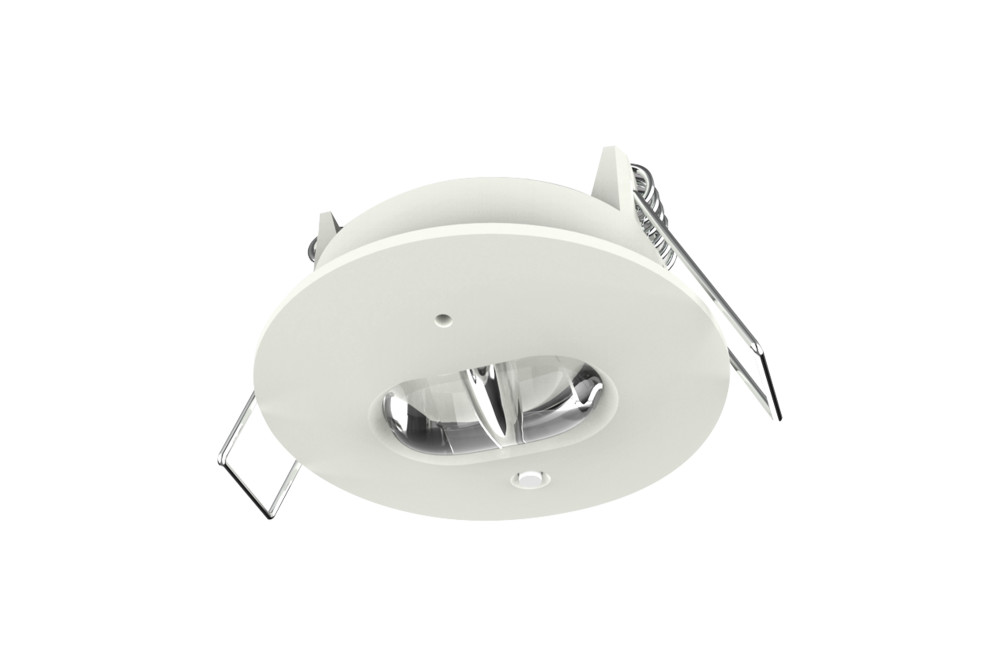

EMERGENCY COMPACT DOWNLIGHT 1W 120LM 3HR NON-MAINTAINED 30MM CUTOUT 5700K CORRIDOR MANUAL TEST INTEGRAL LED
Part Number:
ILEMDL073
Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- 120 Lumens in emergency mode
- Product Feature 2:
- Cool White
- Product Feature 3:
- 38mm cut-out
- Product Feature 4:
- 5 year warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788288763 |
|---|---|
| Application | Corridor |
| Quick Order Code | 186503 |
| Category | Emergency |
| Range Name | Compact |
| Product Type | Emergency Downlights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Finish | Matt White |
| Warranty (Years) | 5 |
Physical Data
| Emergency Category | Downlights |
|---|---|
| Linkable | No |
| Product Depth (mm) | 23 |
| Product Weight (g) | 149 |
| Diameter (mm) | 42 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Cut Out Diameter (mm) | 30 |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Recessed |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 120 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Lumens in Emergency mode (lm) | 120 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 120 |
Electrical Data
| Power Consumption (W) | 1 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240 |
| Amperage (mA) | 350 |
| Input Voltage (V) | 220-240 |
| Battery Configuration | LiFePo4 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| Emergency Lumens (lm) | 120 |
| Emergency Type | Non-Maintained |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK04 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | 5 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788288763 |
|---|---|
| Package Weight (g) | 170 |
| Package Length (mm) | 240 |
| Package Width (mm) | 45 |
| Package Depth (mm) | 30 |
Safety Guide
ILEMDL073
