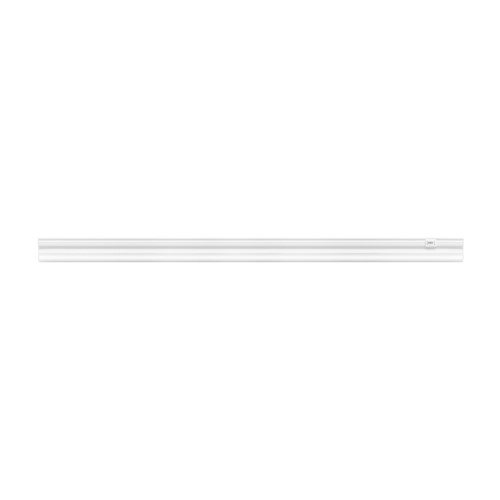

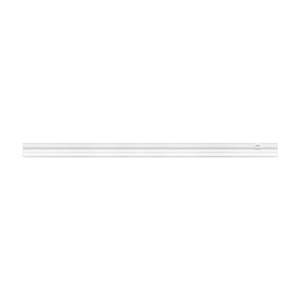

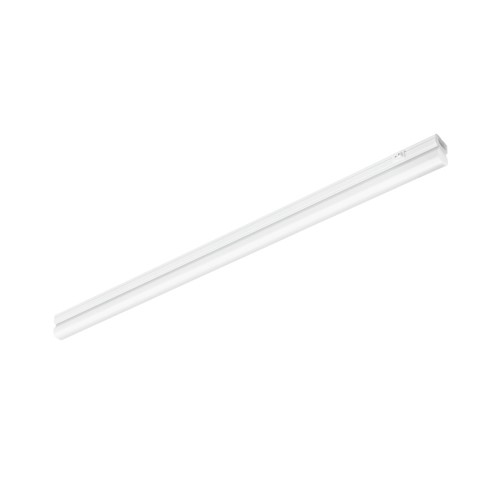

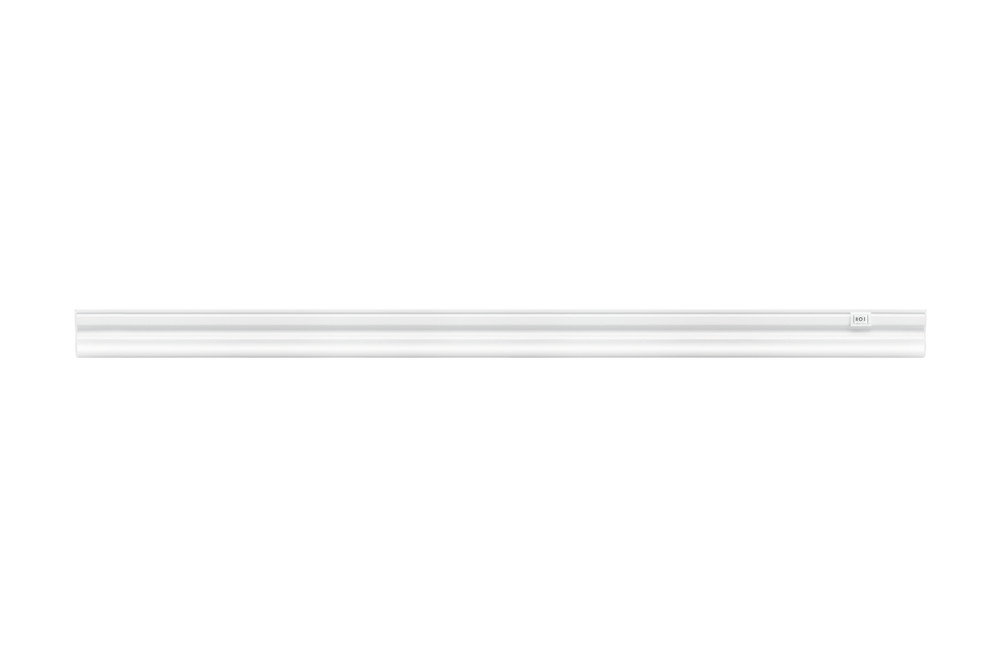

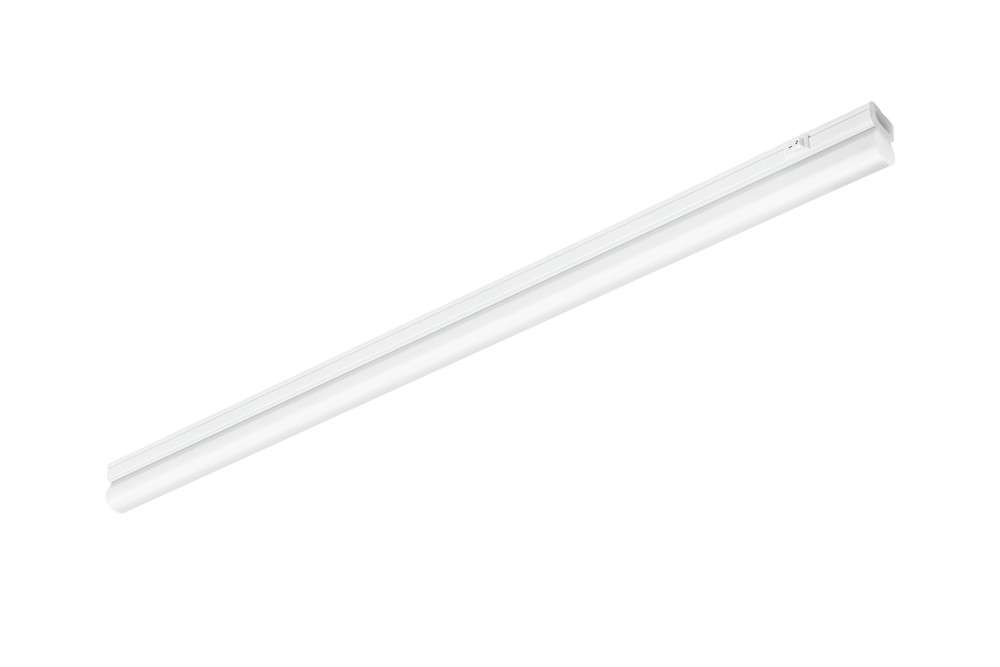

CABINET BATTEN SWITCHABLE COLOUR 620LM 8W 2700/4000K 140 BEAM 90LM/W 570MM 2FT LINKABLE NON-DIMM INTEGRAL
Part Number:
ILCLB014
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
The Colour Switching Cabinet Batten let's you easily switch between Cool White task lighting or Warm White lighting for dining or entertaining. A three-way switch on the unit gives you direct control over the ambience of your kitchen or other under-cabinet environments, such as a study or home office. These battens are linkable, making it easier to install a series of battens in large furnishings.
- Product Feature 1:
- Easily switch between Warm White and Cool White
- Product Feature 2:
- Linkable for easy installation
- Product Feature 3:
- 720lm
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788241874 |
|---|---|
| Quick Order Code | 928505 |
| Category | Luminaires |
| Range Name | Colour Switching |
| Type | Single |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Commercial & Industrial |
| Finish | Matt White |
| Features | Variable Colour Temperature |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 2ft |
| Linkable | No |
| Product Length (mm) | 570 |
| Product Depth (mm) | 36 |
| Product Width (mm) | 23 |
| Product Weight (g) | 200 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Mounting Type | Side Conduit Entry |
| Placement / Application | Indoor |
Light Data
| Energy Efficiency Label (Image) | ILCLB014_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 720 |
| Luminous efficacy (lm/W) | 90 |
| Correlated Colour Temperature (CCT) (K) | 2700, 4000 |
| Colour Temperature Name | Warm White, Cool White |
| Beam Angle | 140 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 35000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 720 |
Electrical Data
| Power Consumption (W) | 8 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| LVD Certified | Yes |
Environmental
| LVD Certified | Yes |
|---|---|
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK06 |
| IP Rating (Ingress Protection) | IP20 |
Packaging
| Barcode | 5055788241874 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 260 |
| Package Length (mm) | 585 |
| Package Width (mm) | 50 |
| Package Depth (mm) | 40 |
| Outer Carton Barcode | 05055788241881 |
| Qty per Outer Carton | 25 |
| Outer Carton Length (mm) | 610 |
| Outer Carton Width (mm) | 295 |
| Outer Carton Depth (mm) | 220 |
