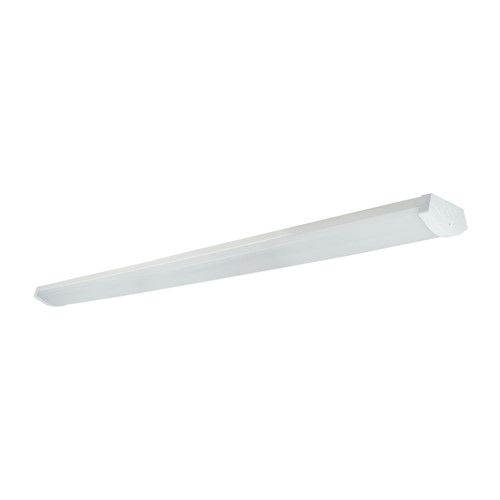

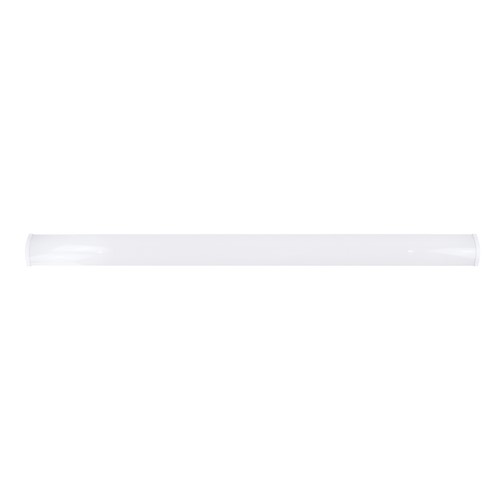

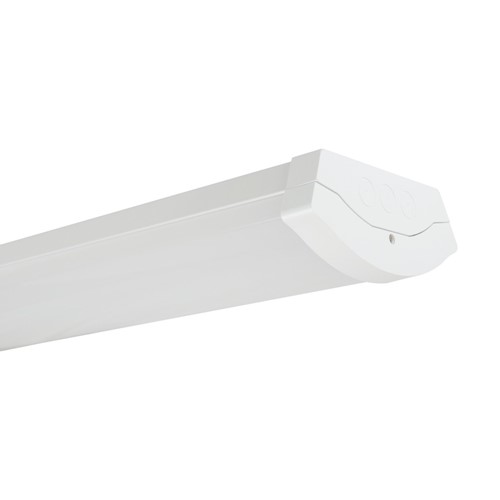

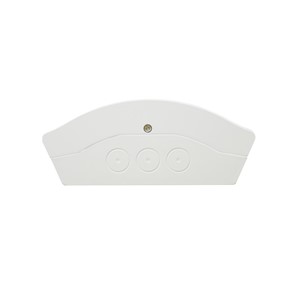

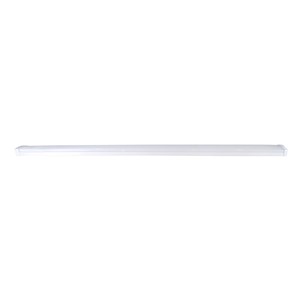

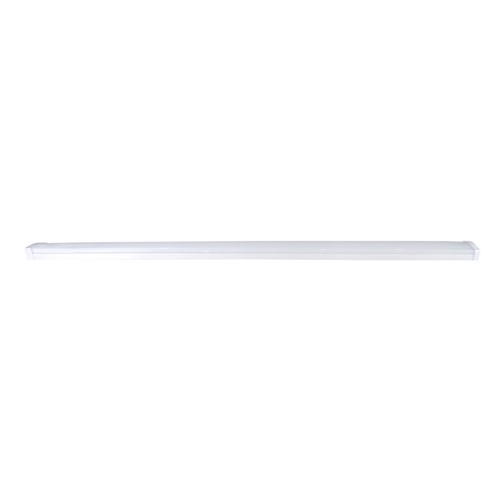

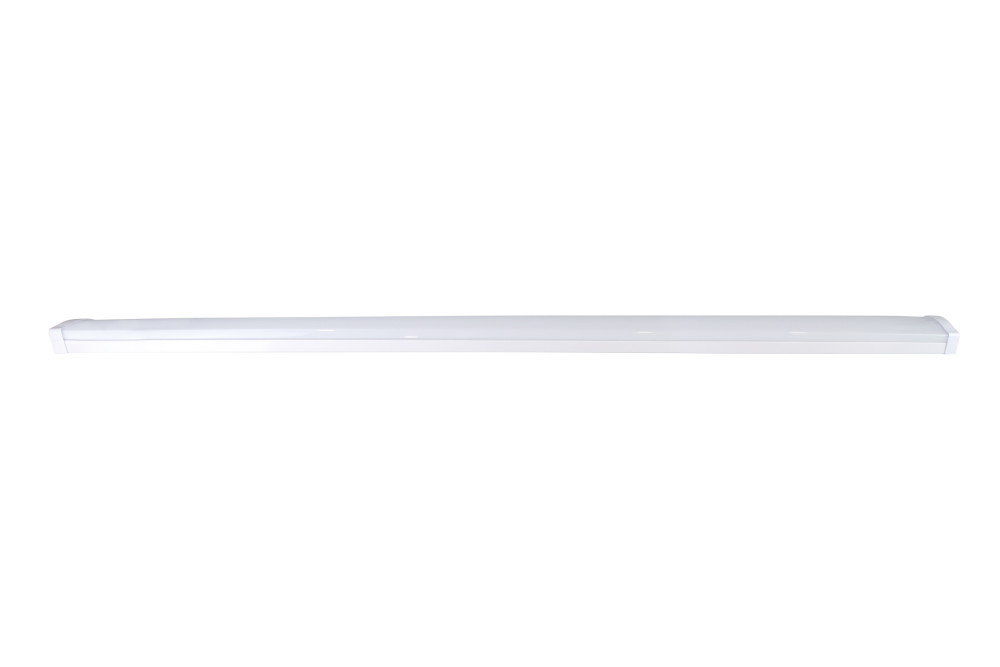

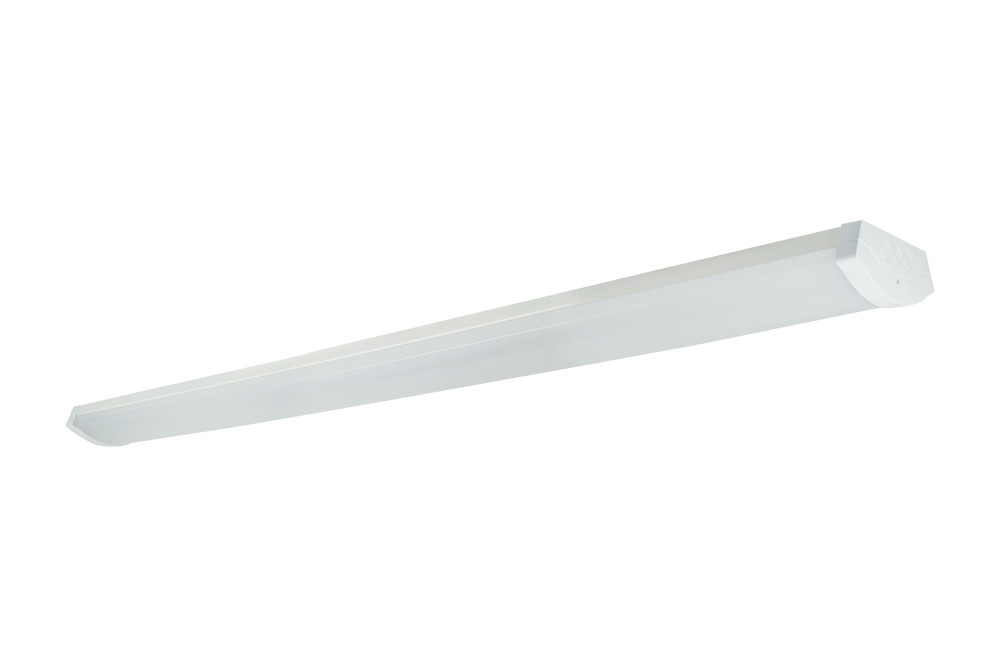

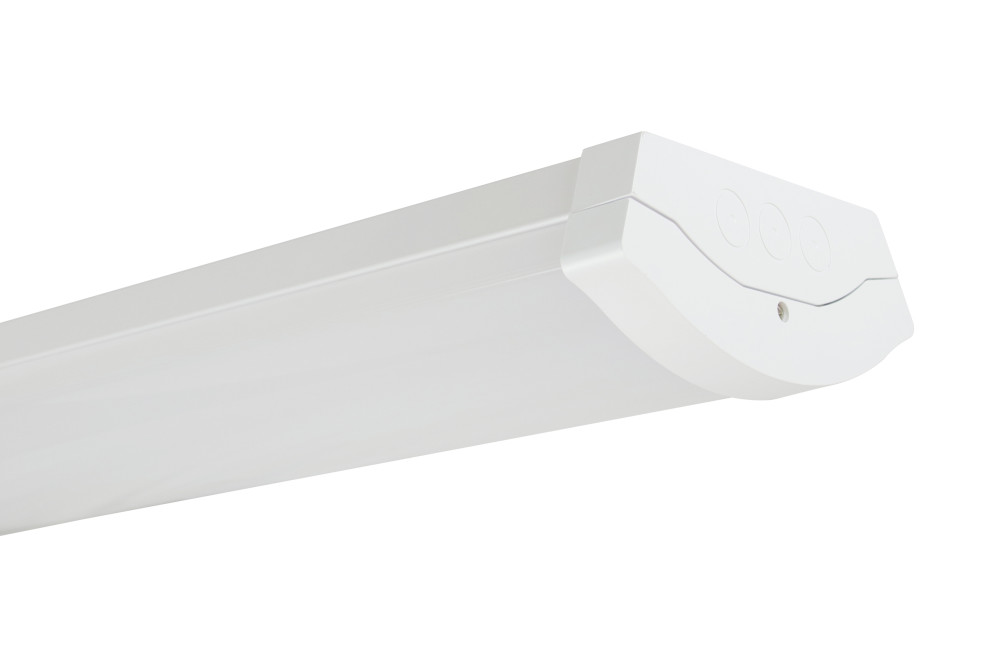

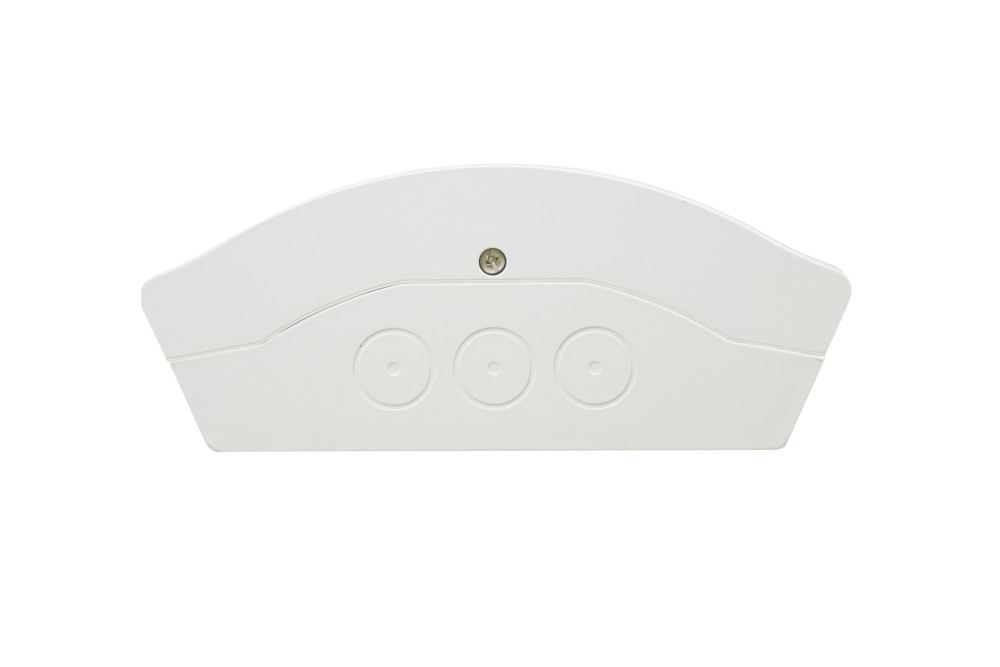

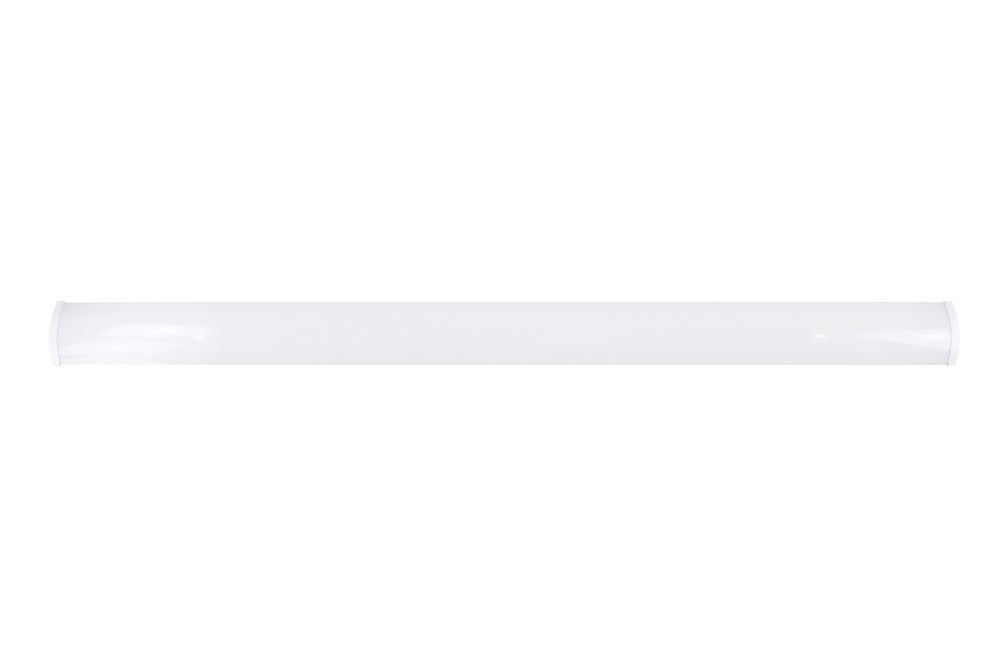

DIFFUSALITE 6FT EM3HR IP40 IK08 65W 8125LM 4000K 120° 125LM/W NON-DIMMABLE
Part Number:
ILBTK126
DiffusaLITE is a new range of highly reliable battens that provides a range of options for effective and efficient LED lighting.
A low glare light output with a discreet, slim and low profile design in a range of sizes, makes DiffusaLITE battens ideal for schools, colleges, hospitals, offices, retail areas and general applications.
Being lightweight, linkable and BESA mountable allows for an easy and rapid installation. A definitive range that can enhance a wide variety of projects.
- Product Feature 1:
- 8125lm
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- 125lm/W
- Product Feature 4:
- Low Glare
- Product Feature 5:
- 3hr emergency
- Product Feature 6:
- IP40
- Product Feature 7:
- IK08
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 948222 |
|---|---|
| Barcode | 5055788257400 |
| Category | Luminaires |
| Range Name | Diffusalite |
| Type | Twin |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Emergency Function |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Size (in ft) | 6ft |
| Linkable | Yes |
| Product Length (mm) | 1790 |
| Product Depth (mm) | 81 |
| Product Width (mm) | 200 |
| Product Weight (g) | 3400 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTK126_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 8125 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 65 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP40 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 4300 |
|---|---|
| Package Length (mm) | 1802 |
| Package Width (mm) | 203 |
| Package Depth (mm) | 90 |
