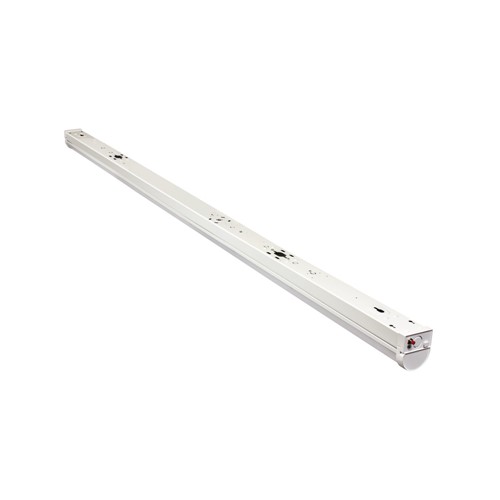

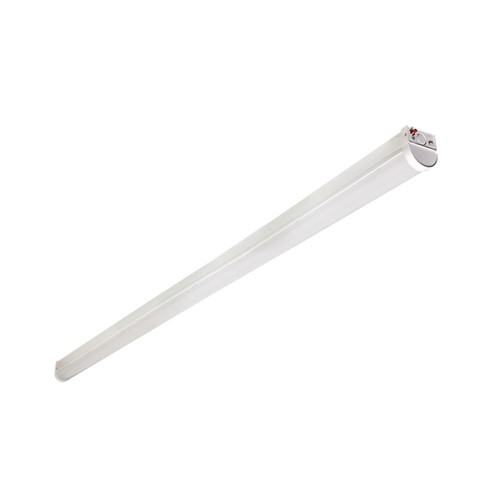

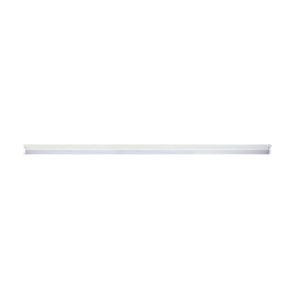

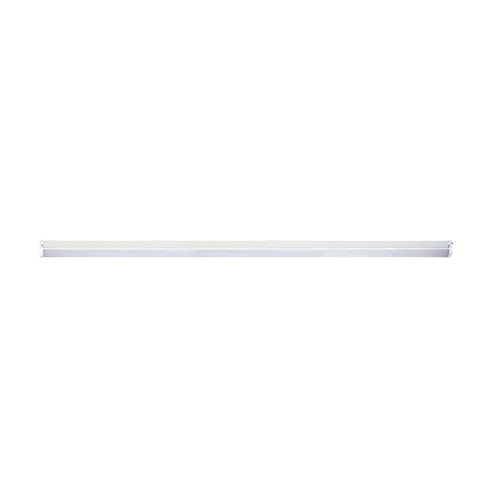

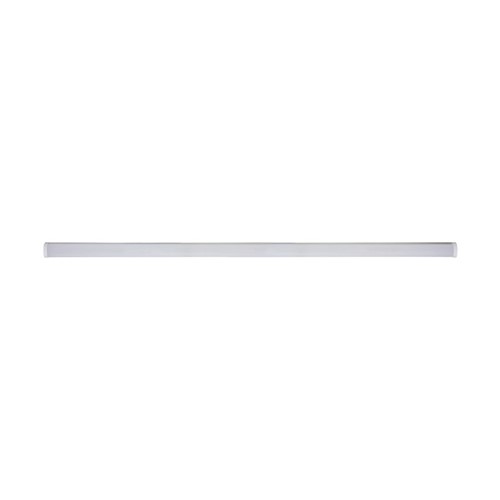

LIGHTSPAN T8 BATTEN 6FT SINGLE EMERGENCY 3HR 5200LM 40W 130LM/W 4000K 120 BEAM 1734MM LINKABLE NON-DIMM INTEGRAL

Part Number:

ILBTC116

Integral Lightspan Battens provide an efficient alternative to T8 fluorescent tube fittings. With their high lumen output, Lightspan battens are ideal for indoor commercial spaces that need bright task lighting and at up to 130lm/W they offer big energy savings compared to equivalent fluorescent fittings.

Product Feature 1:
5200lm
Product Feature 2:
Class I
Product Feature 3:
130lm/W
Product Feature 4:
3 Year warranty
Product Feature 5:
Emergency
Availability:
82

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 119067
Barcode 5055788251293
Category Luminaires
Range Name Lightspan
Type Single
Product Type Battens
Product Body Finish Matt white
Market Segment Indoor commercial, Industrial, residential
Finish Matt White
Features Emergency Function
Warranty (Years) 3
Emergency Option Integrated
Size (in ft) 6ft
Emergency Category Battens
Linkable No
Product Length (mm) 1734
Product Depth (mm) 70
Product Width (mm) 60
Product Weight (g) 2600
Optic Polycarbonate diffuser
Material Polycarbonate, Aluminium
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Wall / Ceiling / Pendant / Conduit mounted
Mounting Type Rear & Side Cable Entry
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILBTC116_EU_label
Luminous Flux in Lumens (lm) 5200
Luminous efficacy (lm/W) 130
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 30000
Lumens in Emergency mode (lm) 260
Useful Lumens (lm) 5200
Power Consumption (W) 40
Power Factor 0.9
Voltage Range (v) 220-240
Wattage equivalent (W) 70
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
Emergency Battery Life (years) 2
Emergency Type Non-Maintained
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK06
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 50
Package Weight (g) 2750
Package Length (mm) 1735
Package Width (mm) 68
Package Depth (mm) 79

Product Specification Sheet

Safety Guides

LDT Files

Installation Guides
