TOUGHSHELL BATTEN TWIN EMERGENCY 3HR IP65 45W 5400LM 4000K 120 BEAM ANGLE 120LM/W 4FT NON-DIMM NON-LINKABLE

Part Number:

ILBTD043

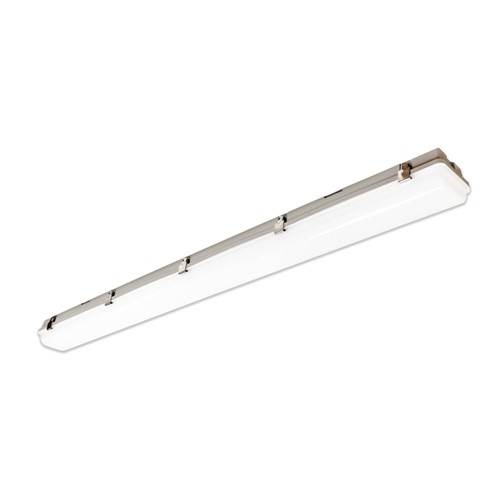

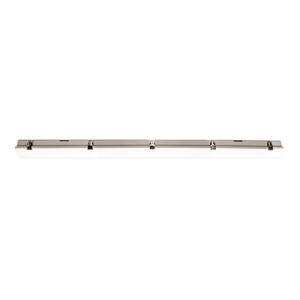

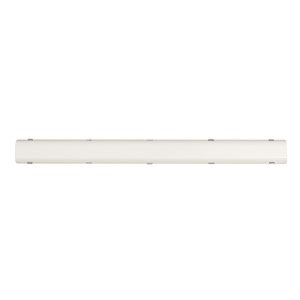

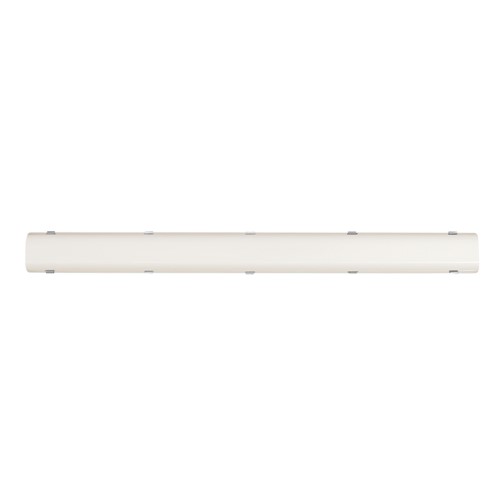

The Tough-Shell Batten features a tough IK08 and IP65 dust and waterproof polycarbonate casing with secure clips. The frosted diffuser provides even light distribution. Ideal for demanding environments such as warehouses, factories, car parks and more.

This model features an integrated Emergency Function to provide three hours of illumination in the event of a power cut.

Product Feature 1:
Integrated Emergency Function
Product Feature 2:
IK08 for high impact resistance
Product Feature 3:
IP65 body protects against dust and moisture ingress
Product Feature 4:
Long 30000 hour lifetime
Product Feature 5:
Highly efficient - 120lm/W
Product Feature 6:
3 year warranty
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 234465
Barcode 5055788239864
Category Luminaires
Range Name Tough-Shell
Type Twin
Product Type Battens
Product Body Finish Matt white
Market Segment Indoor commercial, Industrial, residential
Finish Matt White
Features Emergency Function
Warranty (Years) 3
Emergency Option Integrated
Emergency Category Battens
Linkable No
Product Length (mm) 1250
Product Depth (mm) 83
Product Width (mm) 123
Product Weight (g) 2210
Optic Polycarbonate diffuser with Stainless Steel Clips
Material Polycarbonate
Construction Injection moulding
Bulb or Luminaire Shape Linear
Luminaire Fixing Wall/Ceiling mounted
Mounting Type Rear & Side Cable Entry
Placement / Application Indoor, General Lighting
Energy Efficiency Label (Image) ILBTD043_EU_label
Luminous Flux in Lumens (lm) 5400
Luminous efficacy (lm/W) 120
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 30000
Lumens in Emergency mode (lm) 275
Switching Cycles 50000
Useful Lumens (lm) 5400
Power (W) 45
Power Consumption (W) 45
Power Factor 0.9
Voltage Range (v) 220-240
Input Voltage (V) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
Emergency Type Non-Maintained
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating E
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP65
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 40
Package Weight (g) 2290
Package Length (mm) 1251
Package Width (mm) 123
Package Depth (mm) 83
