TOUGHSHELL BATTEN EMERGENCY 3HR IP65 24W 2880LM 120LM/W 4000K 120 BEAM 600MM 2FT LINKABLE NON-DIMM LiFePO4 1500mAh 2.5W 6.4V 275LM INTEGRAL
Part Number:
ILBTD097
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

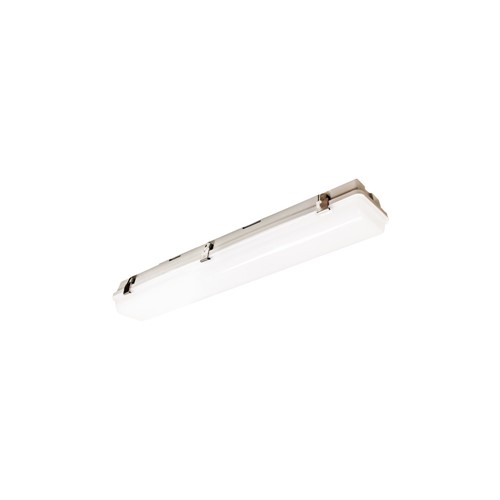

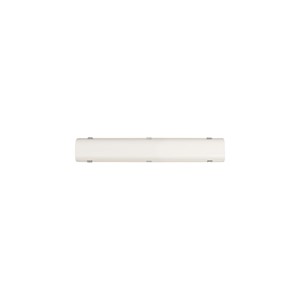

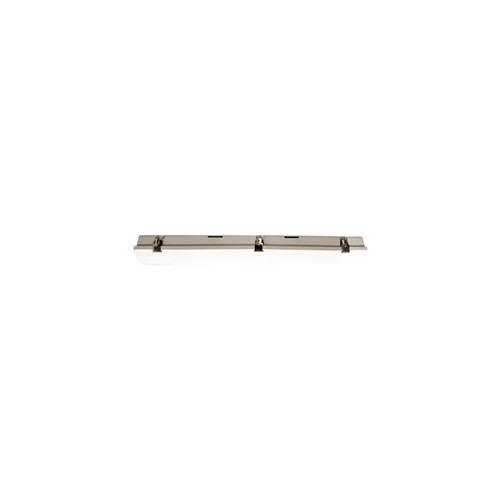

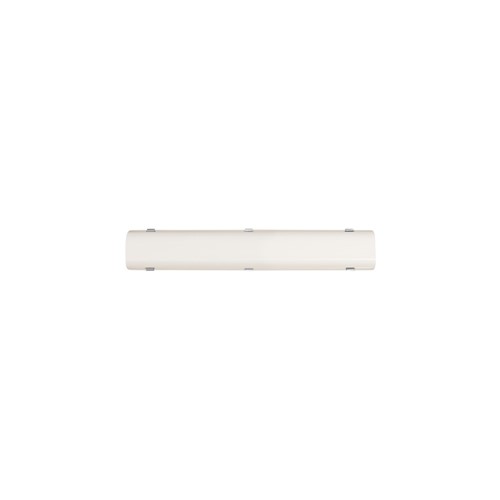

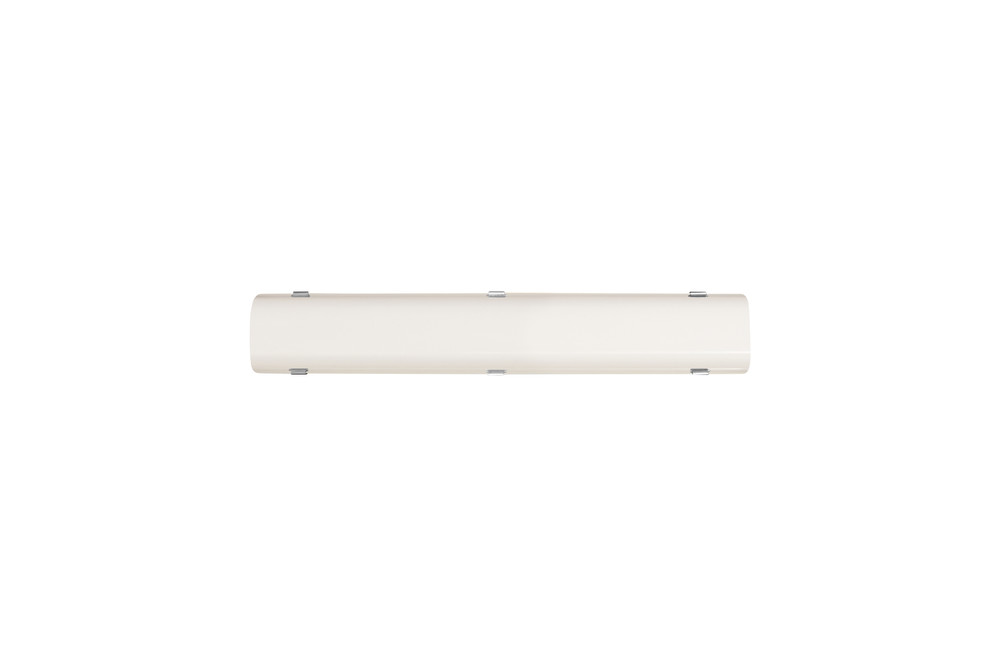

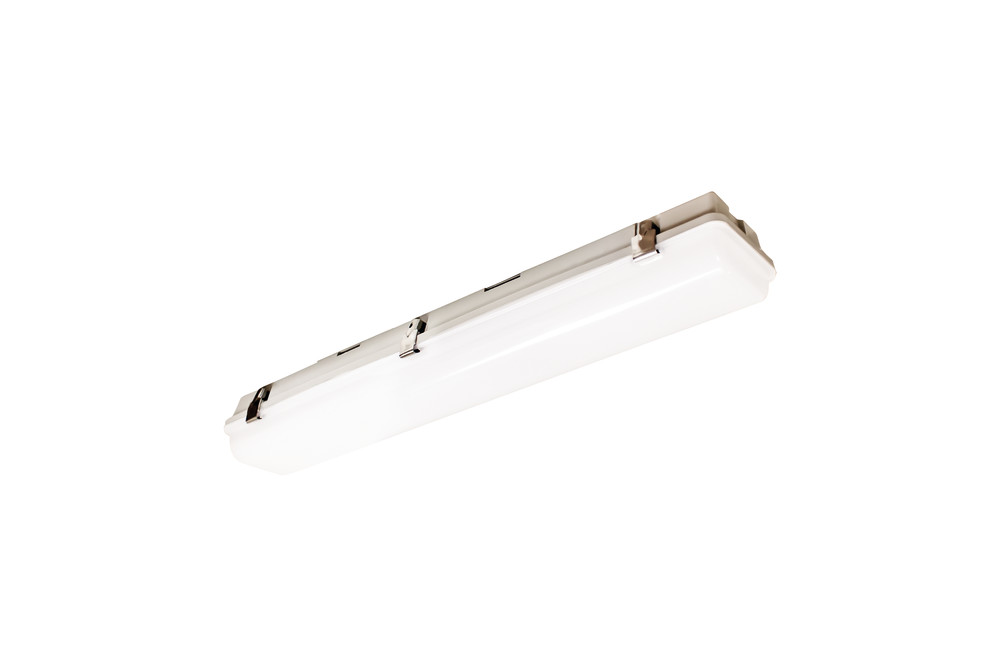

The Tough-Shell Batten features a tough IK08 and IP65 dust and waterproof polycarbonate casing with secure clips. The frosted diffuser provides even light distribution. Ideal for demanding environments such as warehouses, factories, car parks and more.
This model features an integrated Emergency Function to provide three hours of illumination in the event of a power cut.
- Product Feature 1:
- Integrated Emergency Function
- Product Feature 2:
- IK08 for high impact resistance
- Product Feature 3:
- IP65 body protects against dust and moisture ingress
- Product Feature 4:
- Long 30000 hour lifetime
- Product Feature 5:
- Highly efficient - 120lm/W
- Product Feature 6:
- 3 year warranty
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 758779 |
|---|---|
| Barcode | 5055788248101 |
| Category | Luminaires |
| Range Name | Tough-Shell |
| Type | Twin |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Finish | Matt White |
| Features | Emergency Function |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Battens |
| Product Length (mm) | 651 |
| Product Depth (mm) | 77 |
| Product Width (mm) | 118 |
| Product Weight (g) | 1500 |
| Optic | Polycarbonate diffuser with Stainless Steel Clips |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Wall/Ceiling mounted |
| Mounting Type | Rear & Side Cable Entry |
| Placement / Application | Indoor, General Lighting |
Light Data
| Energy Efficiency Label (Image) | ILBTD097_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 2880 |
| Luminous efficacy (lm/W) | 120 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 30000 |
| Switching Cycles | 50000 |
| Useful Lumens (lm) | 2880 |
Electrical Data
| Power Factor | 0.9 |
|---|---|
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Type | Non-Maintained |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | E |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
