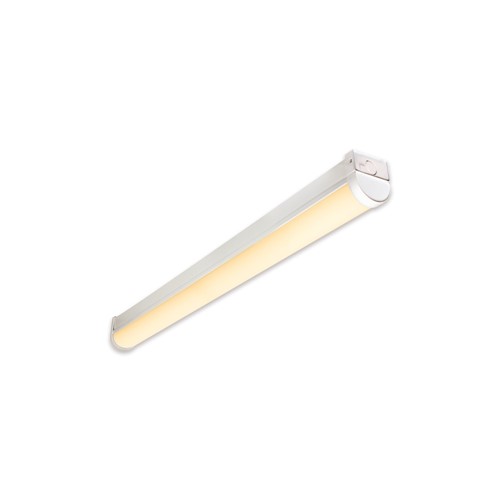

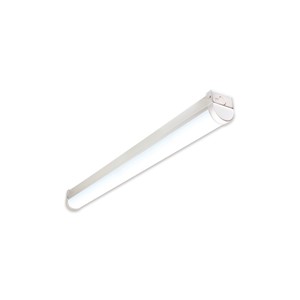

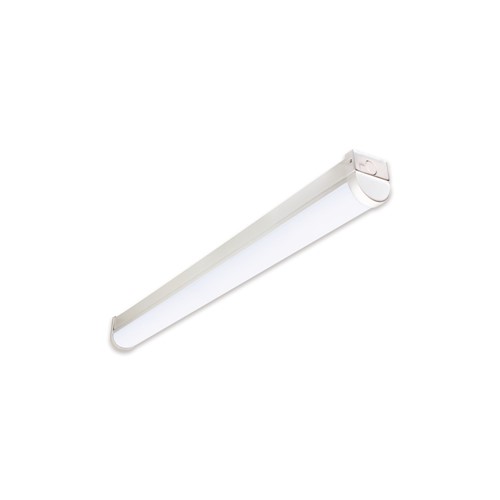

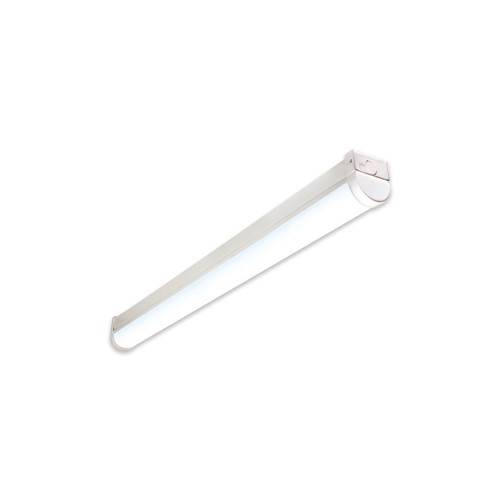

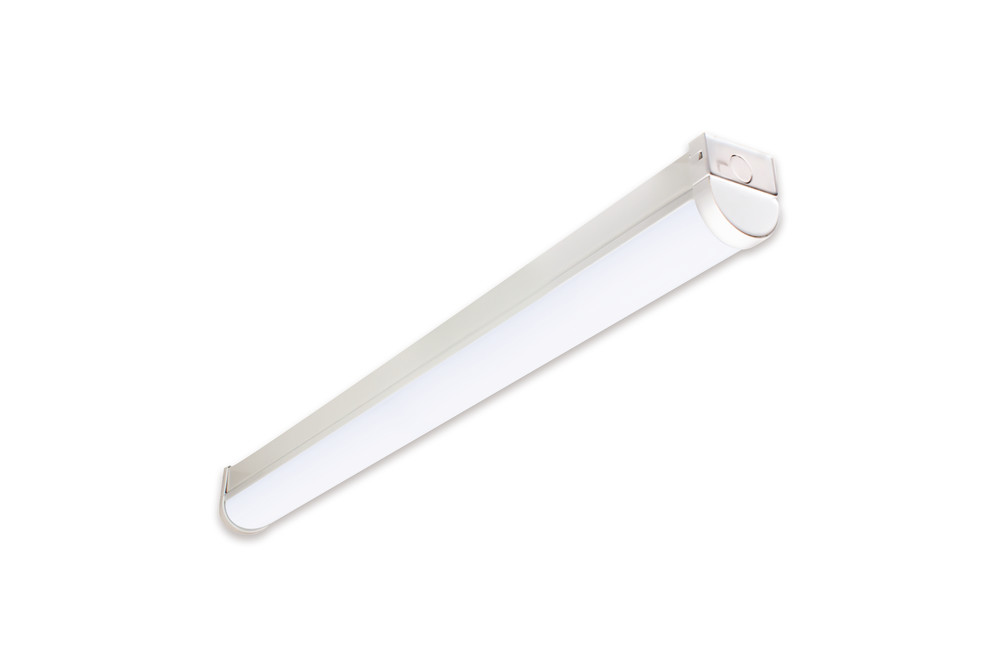

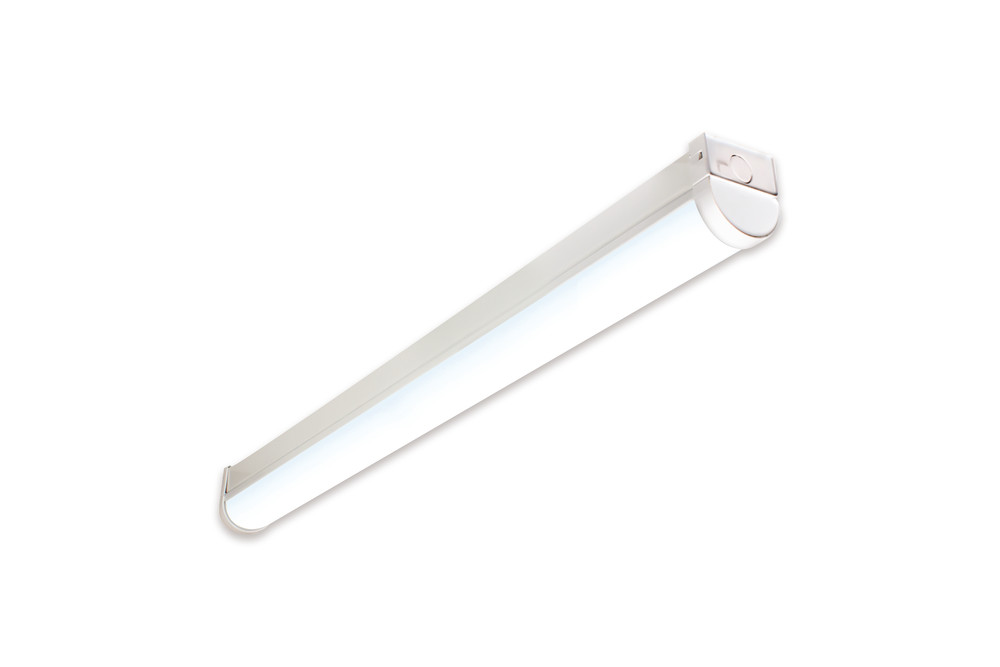

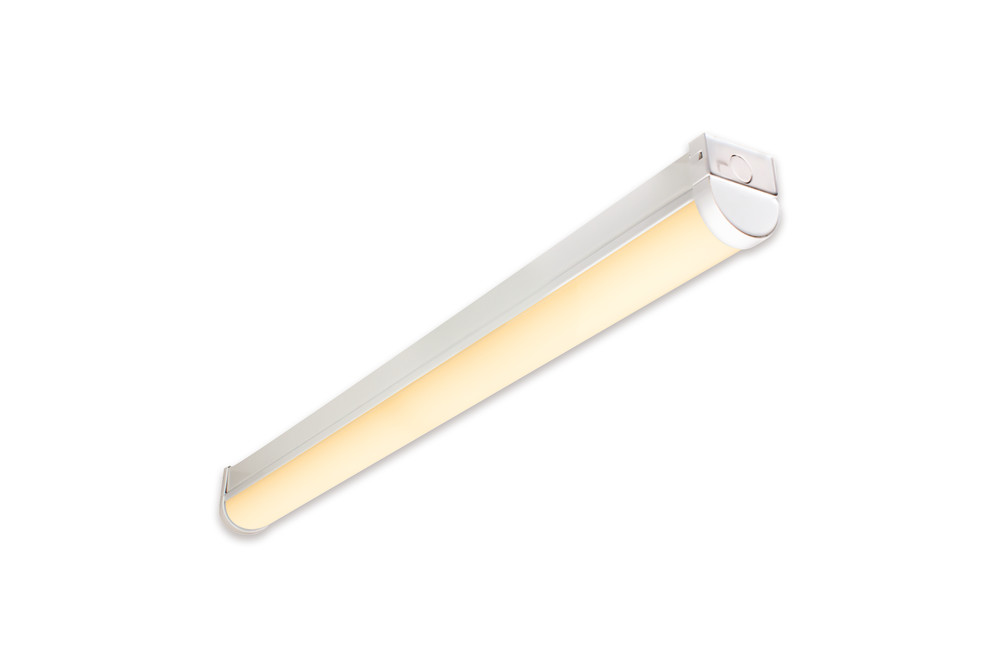

LIGHTSPAN+ PRO T8 BATTEN 4FT POWER & CCT ADJUSTABLE - 22/27/34/40W 3000/4000/6500K 2970-5800LM 145LM/W 120 BEAM LINKABLE NON-DIMM INTEGRAL
Part Number:
ILBTC160

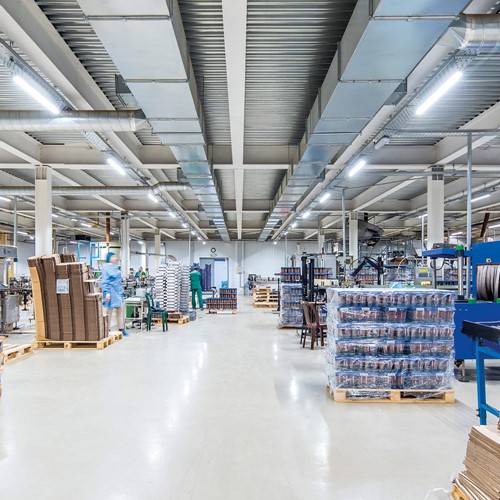

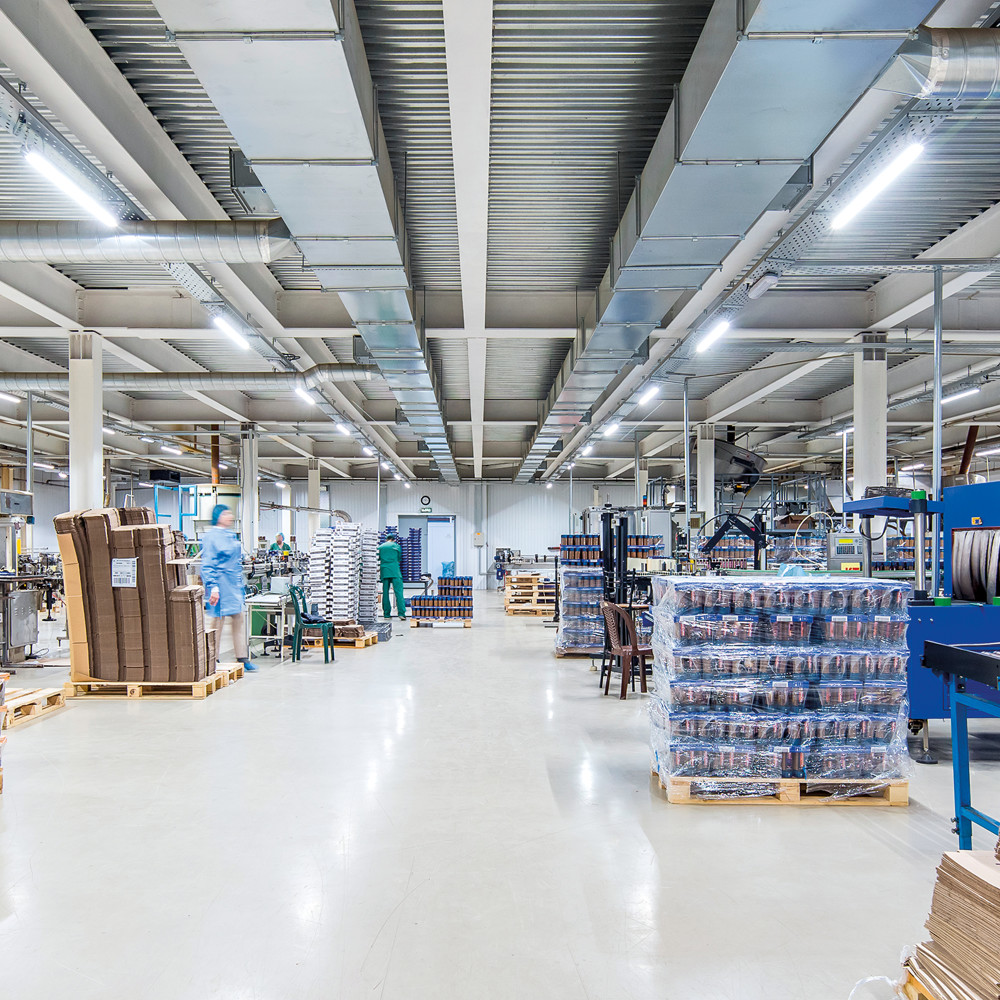

The Integral LED Lightspan+ Pro T8 batten is a modern LED replacement for traditional T5 & T8 fluorescent battens, offering superior performance, adjustability and longevity. Featuring adjustable power settings and three colour temperatures (3000K/4000K/6500K), it delivers an impressive 145lm/W efficiency. Built for durability and reliability, this non-dimmable fixture is perfect for offices, warehouses, and retail environments, providing energy-efficient and customisable lighting in a sleek, professional package.
- Product Feature 1:
- 22W: 2970/3300/2970 27W: 3510/3920/3510 34W: 4420/4930/4420 40W: 5200/5800/5200 lm
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- 145lm/W
- Product Feature 4:

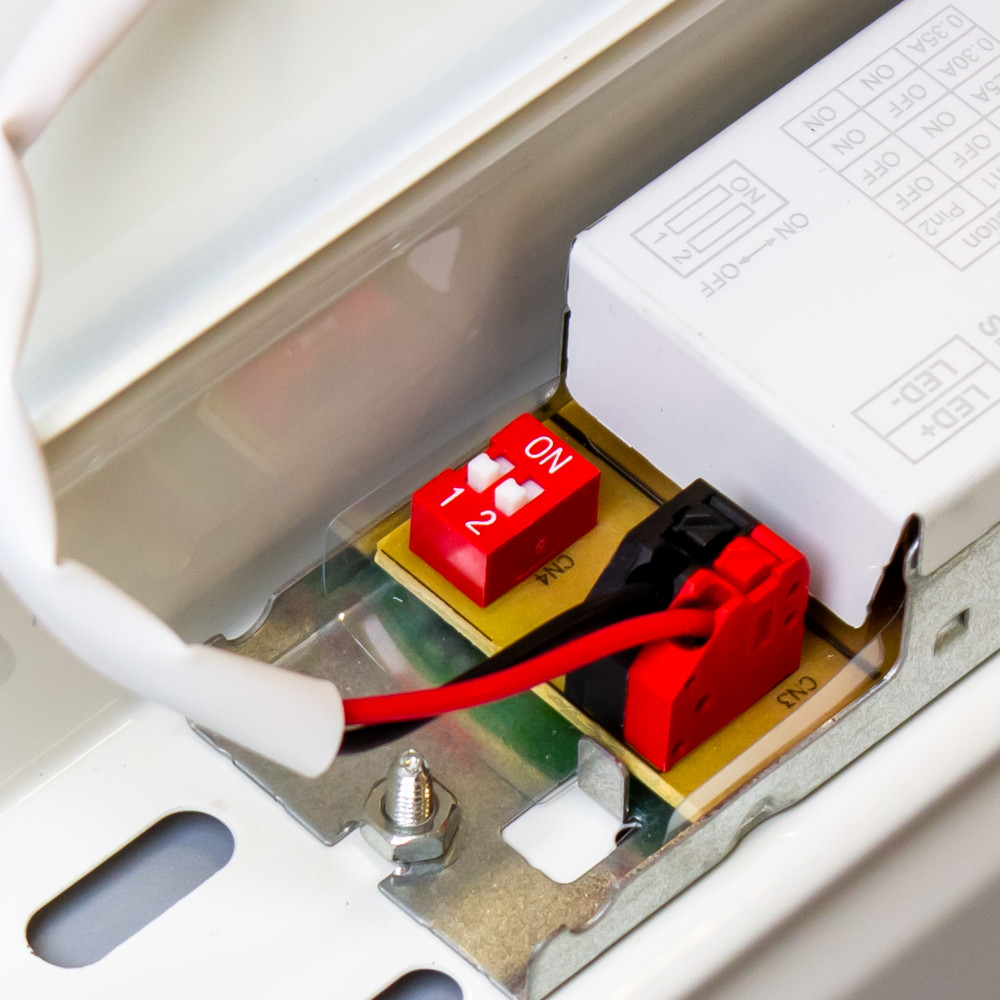

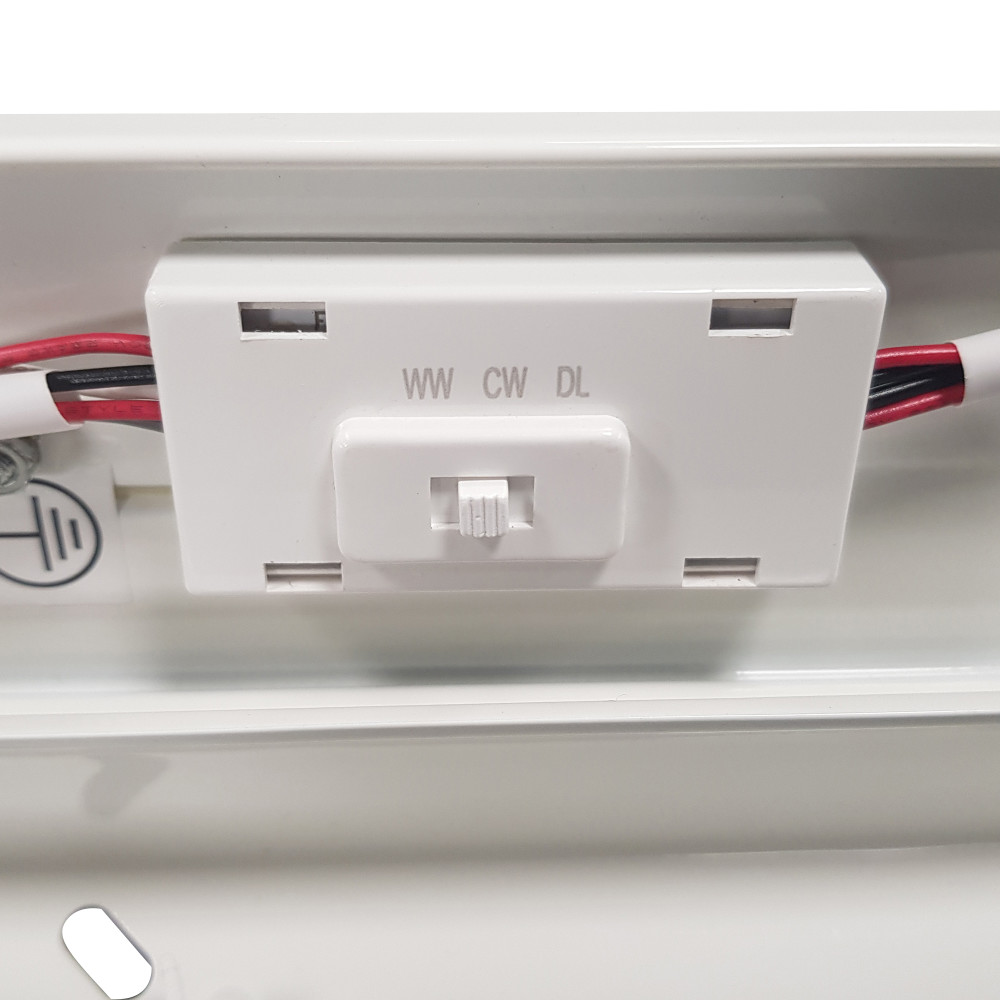

- Power & CCT Switchable
- Product Feature 5:
- IP20
- Product Feature 6:
- IK08
- Availability:
-
100+
More stock due in on 25/05/2025
Suggested products
Details
| Quick Order Code | 259950 |
|---|---|
| Barcode | 5055788291978 |
| Category | Luminaires |
| Range Name | Lightspan+ PRO |
| Type | Single / Twin |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Power & CCT Swtichable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | With modular accessory |
|---|---|
| Size (in ft) | 4ft |
| Linkable | Yes |
| Product Length (mm) | 1170 |
| Product Depth (mm) | 71 |
| Product Width (mm) | 60 |
| Product Weight (g) | 1700 |
| Optic | Polycarbonate diffuser |
| Material | Steel, Polycarbonate |
| Construction | Folded Mild Steel and Polycarbonate diffuser |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 22W: 2970/3300/2970 27W: 3510/3920/3510 34W: 4420/4930/4420 40W: 5200/5800/5200 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 3000/4000/6300 |
| Colour Temperature | 3000/4000/6300 - Warm White/Cool White/Cool Daylight |
| Colour Temperature Name | Warm White/Cool White/Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 22/27/34/40 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 1800 |
|---|---|
| Package Length (mm) | 1175 |
| Package Width (mm) | 68 |
| Package Depth (mm) | 79 |
